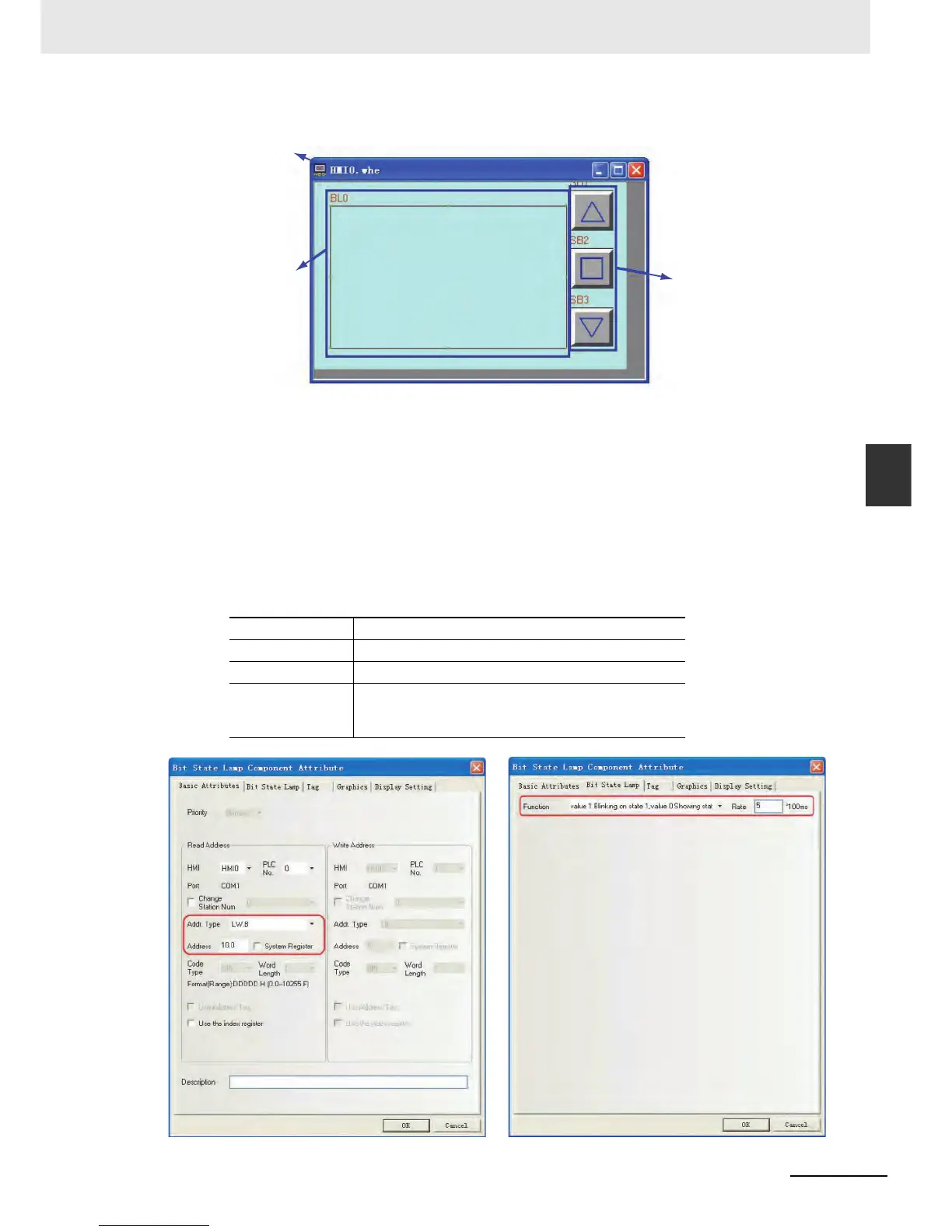

The whole screen is shown below.
a Screen b Bit State Lamp c Bit State Setting components
The configuration of the Bit State Lamp is shown below. The creating method of the Bit State Setting
components is the same as that of [1 Wait].
z Bit State Lamp
The Bit State Lamp and macro file are used in this project to flash the prompt information.
1
Select [Bit State Lamp] from [PLC Parts], drag it to the design window after selecting it with a
single-click.
The attribute settings for the Bit State Lamp are:
Read Address LW.B 10.0
Function Value 1 Blinking state 1, value 0 Showing state 0
Rate 5∗100 ms
Tag Use
0: blank
1: Shutter Stopped
a
b
c
