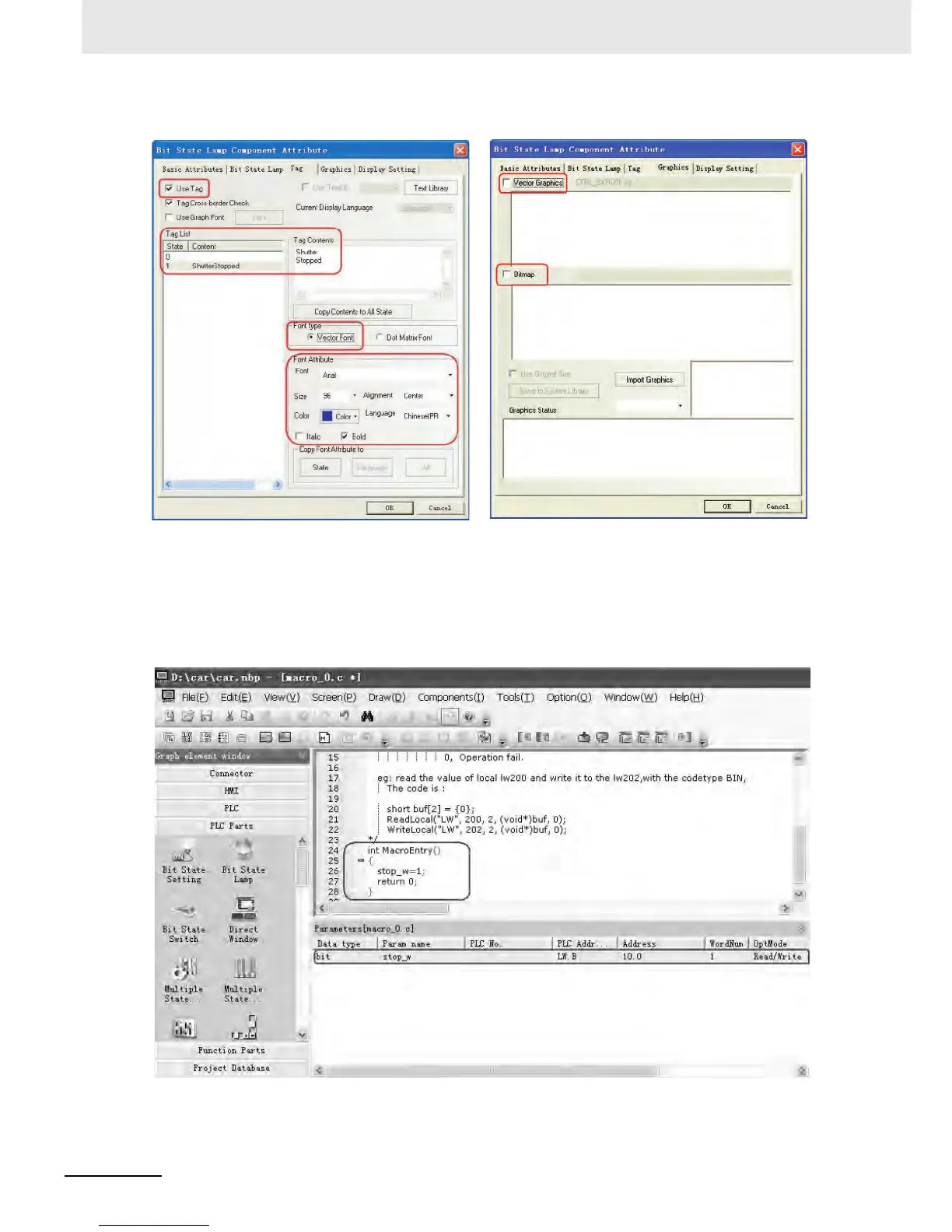

To keep the Bit State Lamp in the Stop screen flashing together with the value of LW.B10.0 set to
1, we can initialize its values by creating the Macro file. The defining method for Macro has been
described in [Creating Project] part. After the project is downloaded into HMI, initialization by
using the Macro is required, i.e. selecting “macro_0.c” option after checking “Use INIT Macro” in
HMI Extended Attributes tab in HMI Attribute screen is required to perform the initialization (Refer
to 4-5 HMI Attribute for the setting method).
