The [5 Fully Open] screen will be displayed with the lower limit LS ON.
Configure functions below:
• Fixed text indicating the garage door state.
• Bit State Setting components for blocking inputs from vehicle sensors to prevent the garage door
from closing automatically.
• Bit State Setting components, allocated to [Open], [Stop] and [Close] garage door operations
respectively.

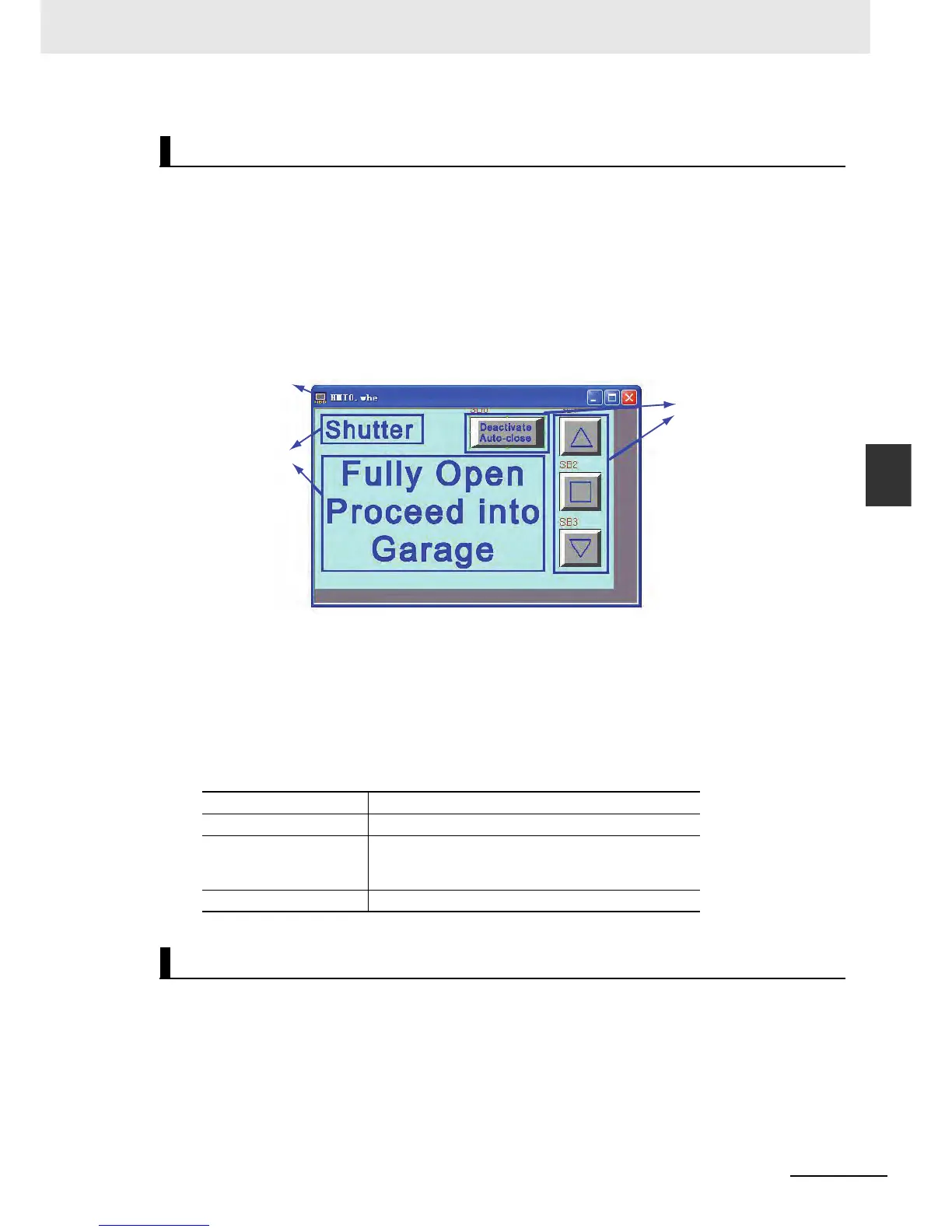

The whole screen is shown below. The creating methods for fixed text and Bit State Setting
components for [Open], [Stop] and [Close] garage door operations are the same as that of [1 Wait].
a Screen b Fixed Texts c Bit State Setting components
z Bit State Setting Components
Function: Block inputs from vehicle sensors. W0.01 turns ON and the input 0.03 from vehicle
sensors is blocked after the component is pressed. Herein, the garage door is to be closed through
manual operations on Function Keys. W0.01 will turn OFF when the garage door is closed and the
lower limit LS turns ON.
The attribute settings are:
The [6 Check 1] screen will be displayed when the maintenance button on [1 WAIT] screen is pressed.
Configure functions below:
• Fixed text indicating the garage door state.
• The Bit State Lamp components activating relevant lamp when the vehicle sensor, light sensor, upper
limit LS or lower limit LS turns ON.
• Function Key components, buttons for switching to [1 Wait] and [7 Check 2] screens.
• Bit State Setting components, allocated to [Open], [Stop] and [Close] garage door operations
respectively.
[5 Fully Open]
Write Address W0.01
Bit State Setting Type On
Tag Use
0: Deactivate Auto-close
1: Deactivate Auto-close
Graphics Use the vector graphic: CTRL_BAR001.vg
[6 Check 1]
a
b
c
