4 Screen Creation
4-24
NB-series Programmable Terminals Startup Guide Manual(V109)

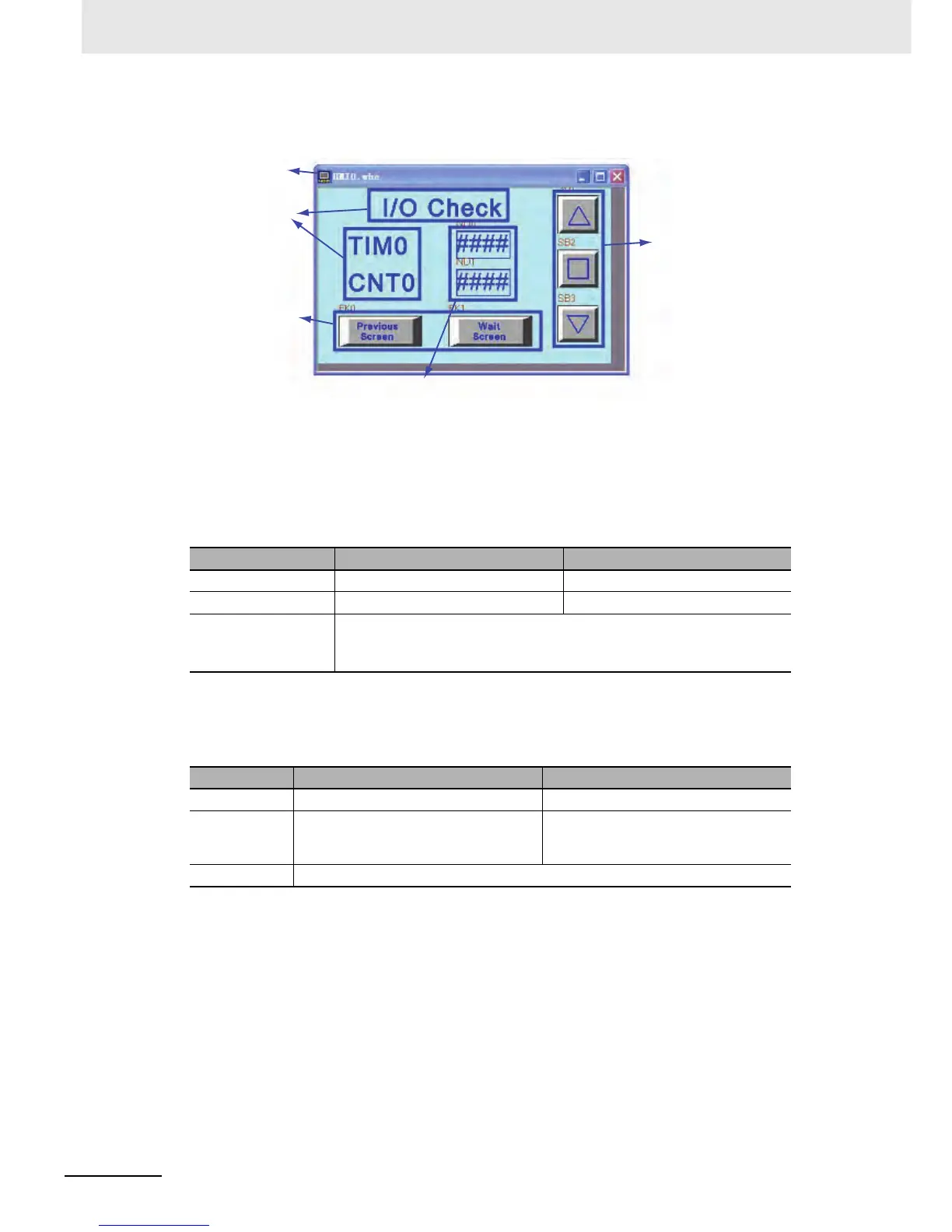

The whole screen is shown below. The creating methods for fixed text and Bit State Setting
components for [Open], [Stop] and [Close] garage door operations are the same as that of [1 Wait].
a Screen b Fixed Texts c Number Display components d Function Keys e Bit State Setting
components
z Number Display Components
The states of the [OPEN], [STOP] and [CLOSE] switches are shown by the lamp.
The attribute settings for the Bit State Lamp are:
z Function Key Components
These are used for switching to [1 Wait] and [7 Check 2] screens.
The attribute settings for the Function Key components are:
Corresponding Name TIM0 CNT0
Read Address T_word 0 C_word 0
Numeric Data Type Unsigned int
Graphics Use the vector graphic:
BlueFrame.vg (A vector graphic coming with user created, which consists of
a Number Display component plus a blue border)
Screen Name Previous Screen Wait Screen
Function Key Change window[7 Check 2] Change window[1 Wait]
Tag Use tags:
0: Previous Screen
1: Previous Screen
Use tags:
0: Wait Screen
1: Wait Screen
Graphics Use the vector graphic: CTRL_BAR001.vg
a
b
d
e
c
To Next Page
