2 Connecting to SIEMENS PLCs
2-24
NB-series Programmable Terminals Host Connection Manual (V108)

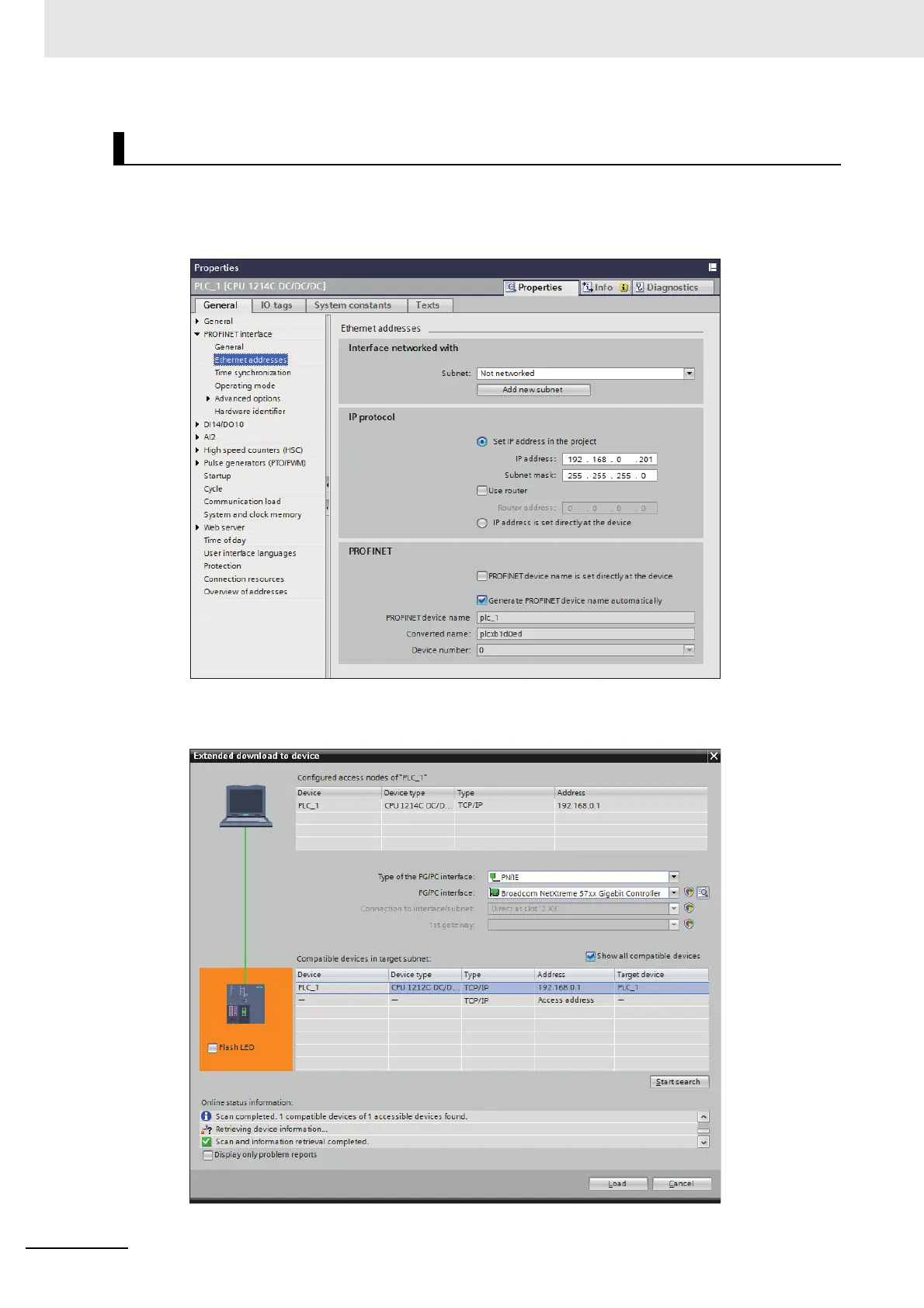

Make settings of the PLC using SIMATIC STEP 7 (TIA Portal).
1
Double-click the [General] tab - [PROFINET interface] - [Ethernet addresses] and set IP
address and others.
2
Transfer the set descriptions to the PLC. If you transfer the descriptions for the first time, select
the [Extended download to device] and check the [Show All compatible devices] check box.
PLC Settings
