2 Connecting to SIEMENS PLCs
NB-series Programmable Terminals Host Connection Manual (V108)
2-3 Communication Parameter Setting
2
2-3-5 SIEMENS S7-1200 Ethernet (TCP Slave)

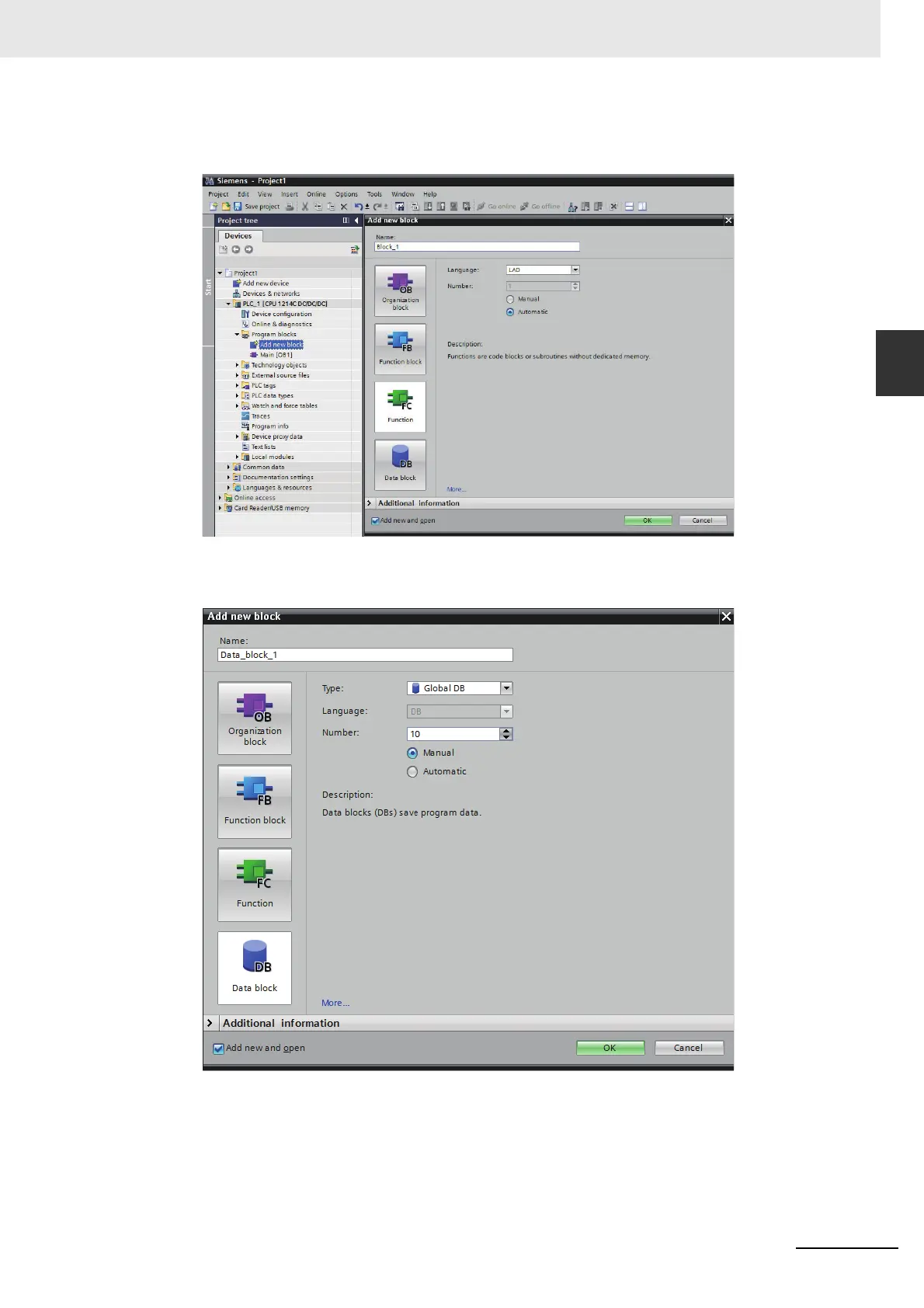

3 Create a Data block.
Double-click the [Project tree] - [Add new block].
4 Click the [Data Block].
Example: If you should create a new Data block DB10, make settings as below.
