The PLC Settings when using Communication Protocol of Mitsubishi QnA 3EBin Ethernet (TCP Slave)
is as shown below.
1

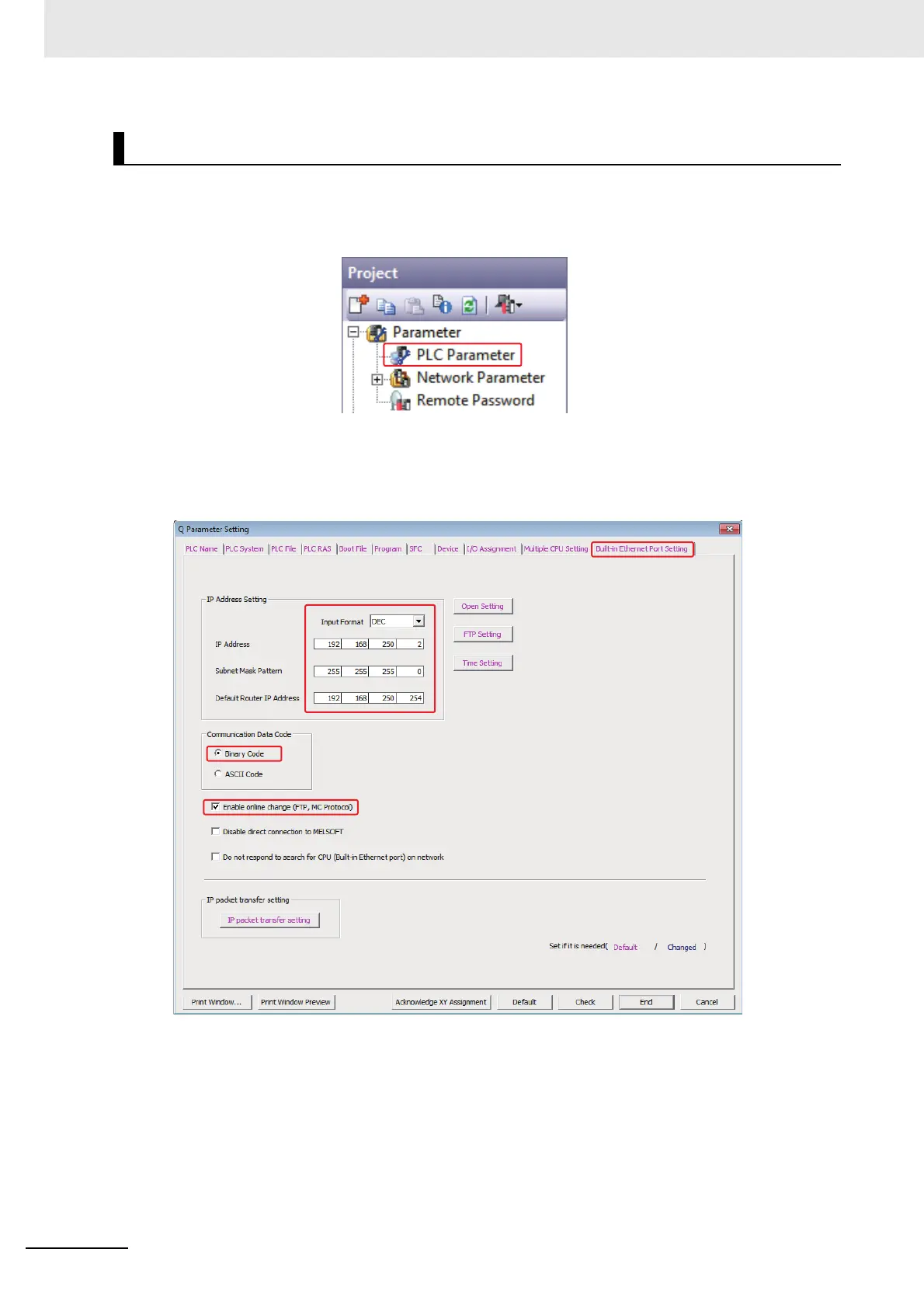

Double-click the [PLC Parameter] under [Project] of GX Works2 software.
2
[Q Parameter Setting] or [L Parameter Setting] dialog boxes are open.
Set the IP address to the same parameters as the PT settings.
Other settings should be the same as the dialog box as below.
PLC Settings
