3-25
3 Connecting to Mitsubishi PLCs
NB-series Programmable Term
inals Host Connection Manua
l (V108)
3-3 Communication Setting
3
3-3-9 When Using Mitsubishi QnA 3EBin Ether
net (TCP Slave) C
ommunication Protocol
3

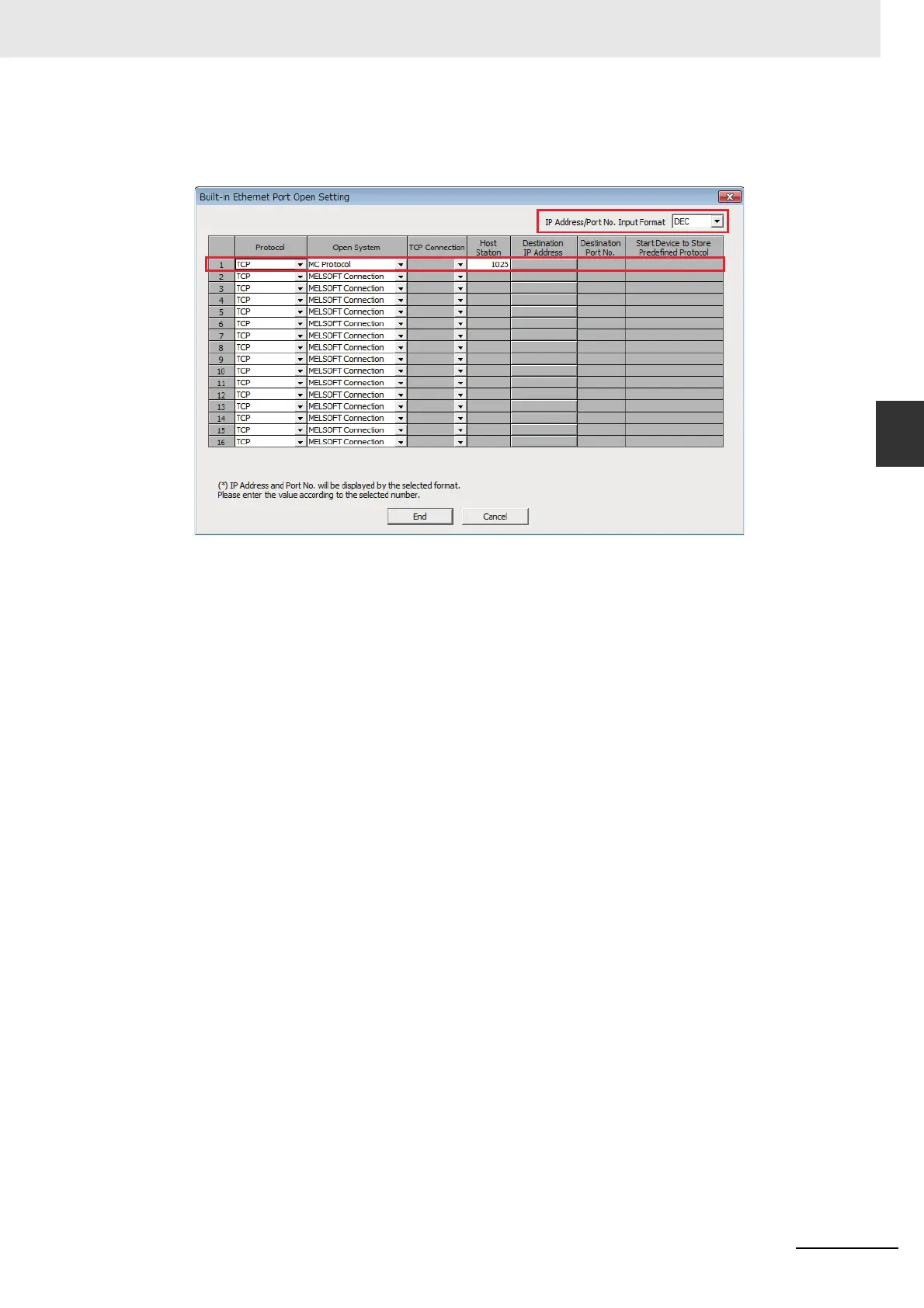

Click the [Open Setting] to
open [Build-in
Ethernet Port Open Setting] dialog bo
x.
Set the parameters as the same with the dialo
g box as follows.
