3 Connecting to Mitsubishi PLCs
3-28
NB-series Programmable Terminals Host
Connection Manual (V108)
3

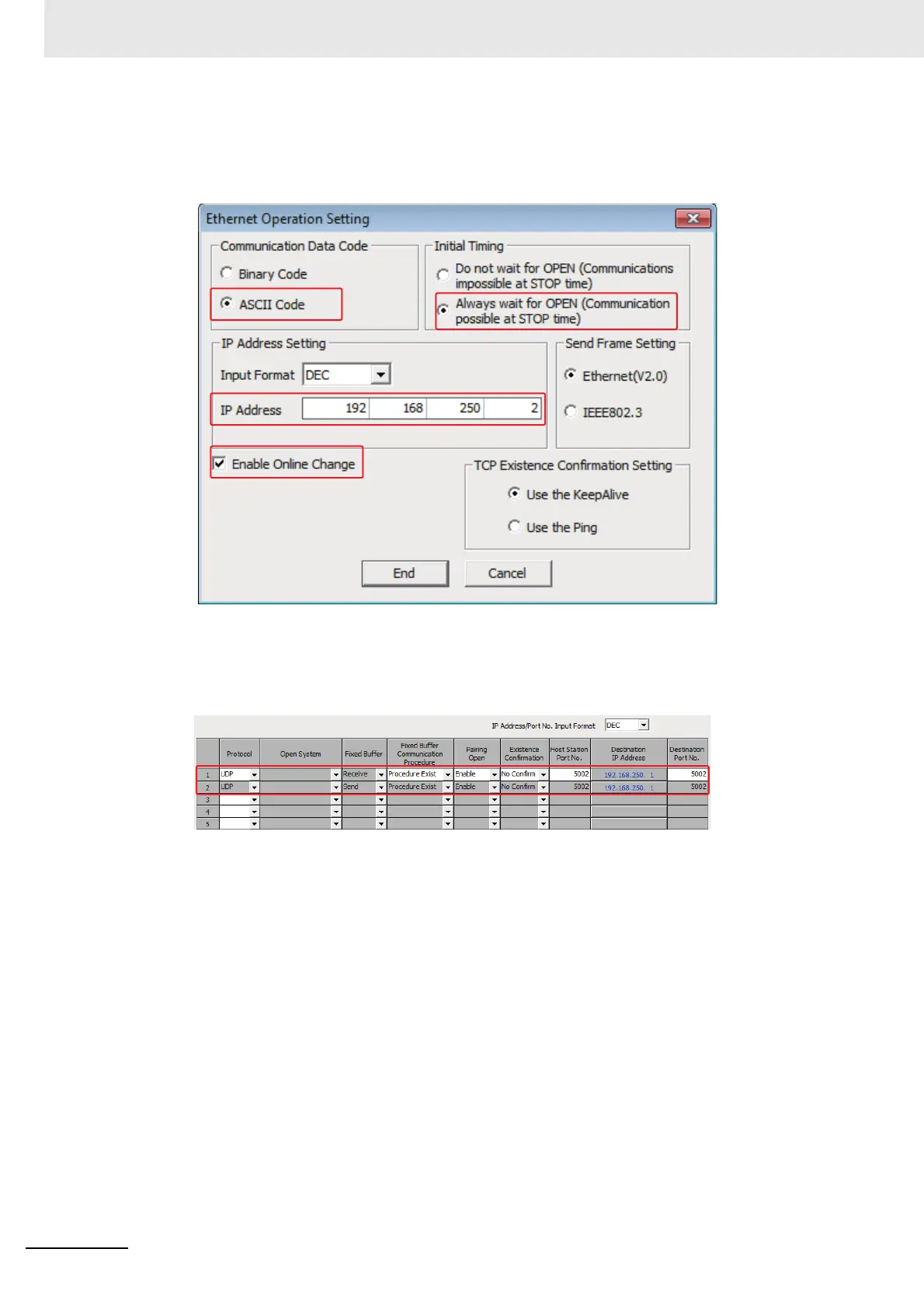

Click the [Operation Se
tting] to open [Ether
net Operation Setting].
Set the IP addres
s to the same
param
eters as the PT settings.
Other settings should be the same as th
e dialog box as below.
4
Click the [Open Setting]
to open the [Ether
net Open Setting] tab.
Set the IP addres
s to the same
param
eters as the PT settings.
Other settings should be the same as th
e dialog box as below.
