2 Installing the NB Unit and Connecting Peripheral Devices
2-30
NB-series Programmable Terminals Setup Manual(V107)
Take the communication between single HMI and the PLC of Omron CJ2M-CPU33 (hereinafter
abbreviated as “PLC0”) as example:

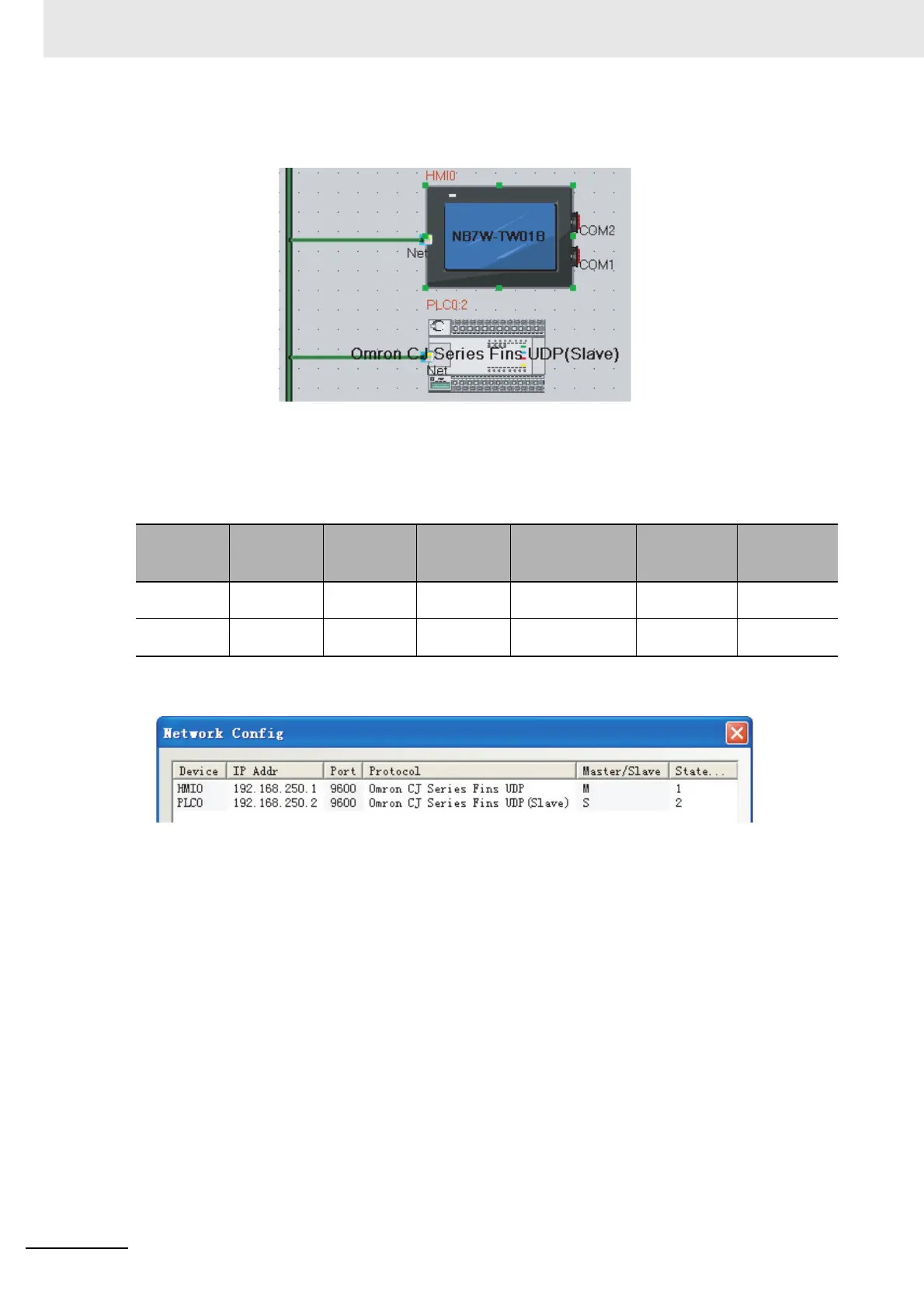

Configure the devices and set the communication parameters in the Construct Window, then click [Add]
in [HMI Attribute] - [HMI] - [Network Device Setting] to set parameters for HMI network-interface
communication.
HMI settings (sample)
Please note that the IP address set here should be same as the actual IP address of PLC during the
configuration. The result is shown as below:
Device Type Device No. IP Address Port Number
Communication
Protocol
Mater/Slave
Station No. /
Node
Number
HMI HMI0 192.168.250.1 9600 Omron CJ Series
Fins UDP
M(Master) 1
PLC PLC0 192.168.250.2 9600 Omron CJ Series
Fins UDP (Slave)
S(Slave) 2
