2-29
2 Installing the NB Unit and Connecting Peripheral Devices
NB-series Programmable Terminals Setup Manual(V107)
2-5 FINS/UDP Communication Connection
2
2-5-2 Parameter Settings for FINS/UDP at NB Side

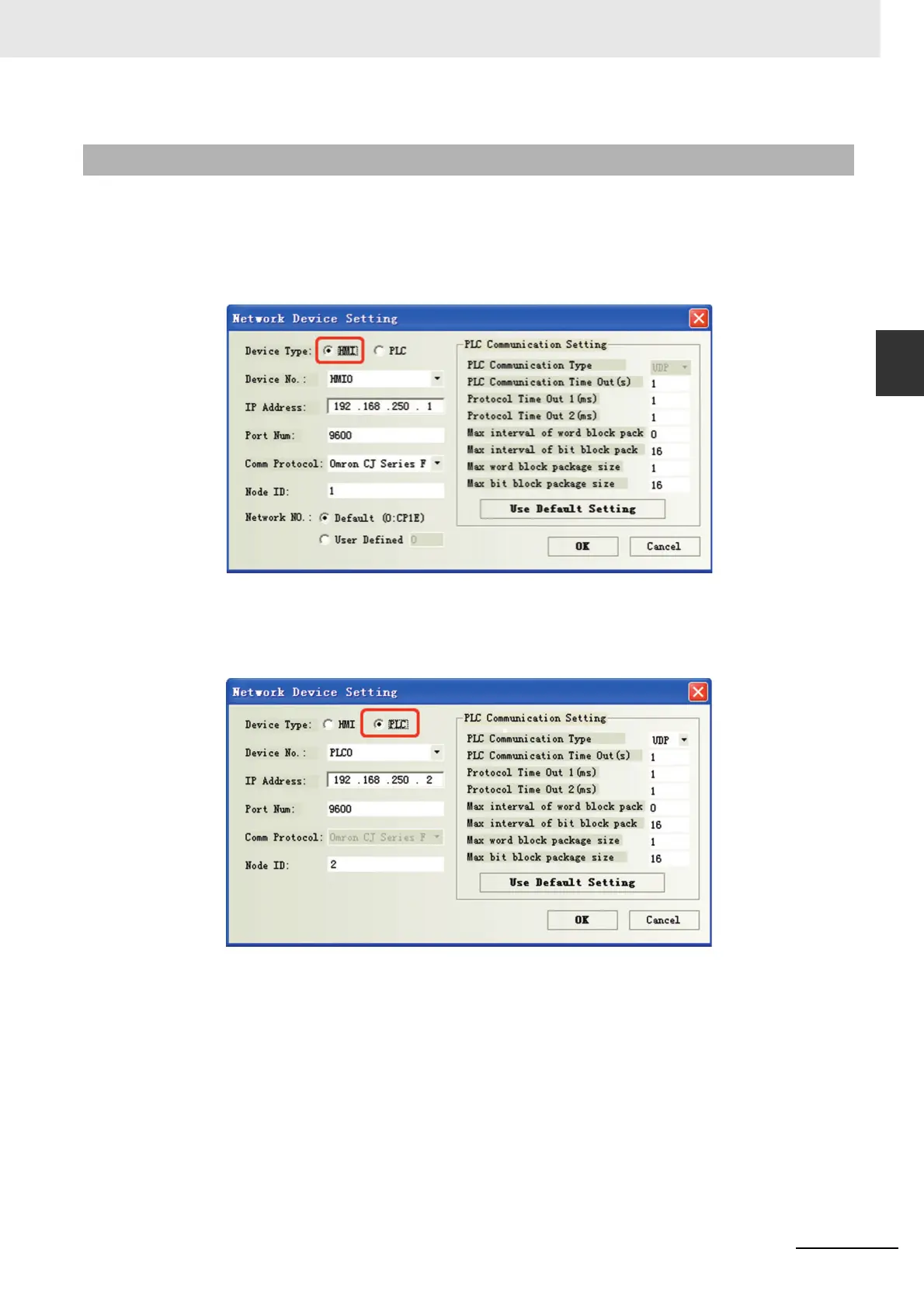

After placing the desired HMI and PLC into the Construct Window, select [Network Device Setting] in
the [Option] menu, and then click the “Add” button after the “Network Device Setting” dialog box pops
up.
After selecting the Device Type and the related FINS/UDP protocol, you can make settings of IP
Address, Node ID and Network No. and etc. for the HMI.
Note When there is CP1E PLC in the FINS/UDP network architecture, the Network No. should be 0. Otherwise,
the communications through the FINS/UDP protocol between the NB and CP1E in this architecture will be
impossible.
The settings of IP Address, Node ID and related communication parameters for PLC can be made.
Note The settings of communication parameters should be the same as that of the actual PLC.
2-5-2 Parameter Settings for FINS/UDP at NB Side
