2-3
2 Installing the NB Unit and Connecting Peripheral Devices
NB-series Programmable Terminals Setup Manual(V107)
2-1 Installing the NB Unit
2
2-1-2 Installation onto the Operation Panel
Install the NB Unit by embedding it into the operation panel.
Use the panel mounting brackets and Phillips screwdriver for installation.
Proceed the installation following the procedures below.
1

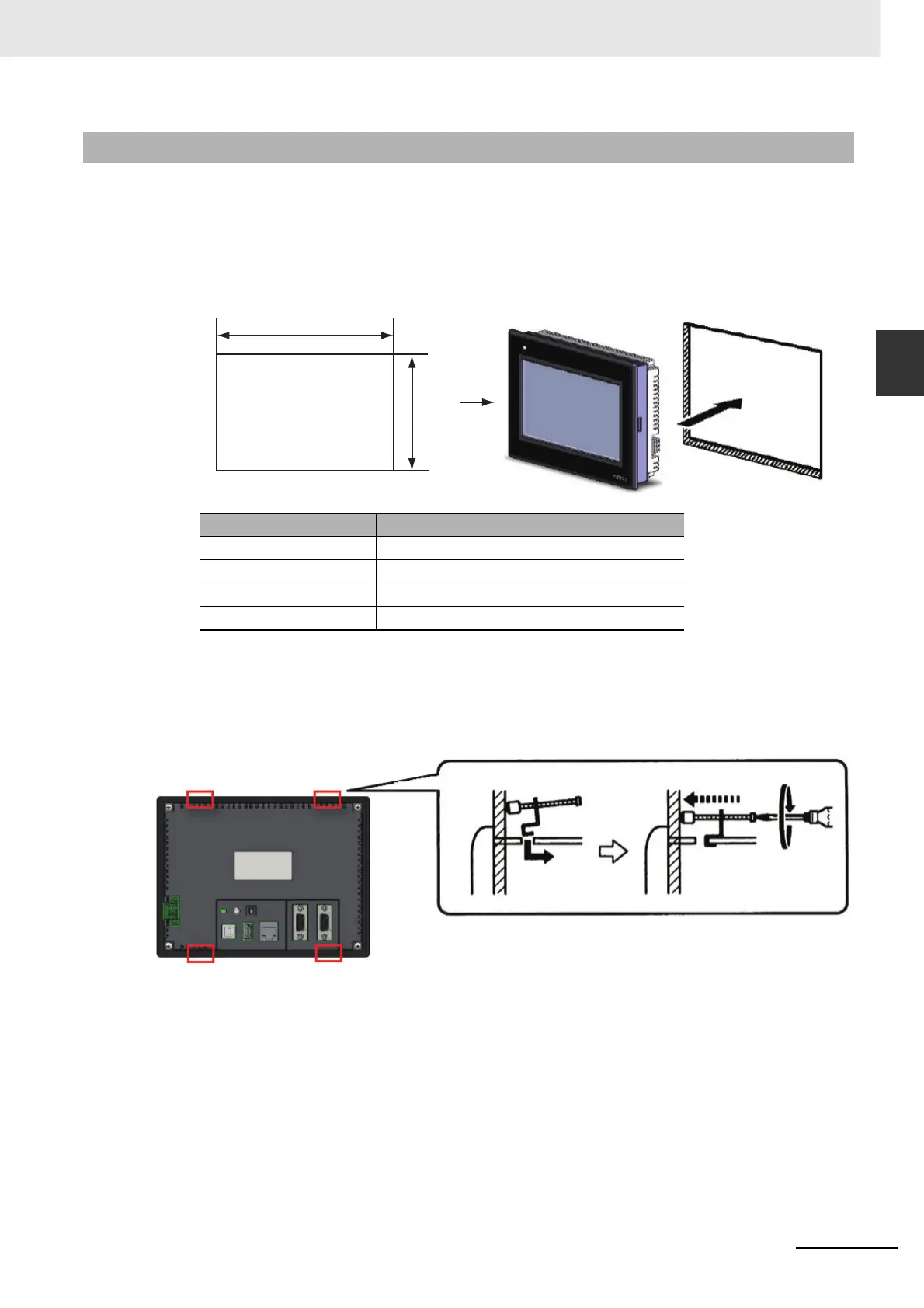

Panel cutout with dimensions is shown below. Fit the NB Unit into the panel from the front side.
2
As follows, insert the panel mounting brackets at the locations indicated by red box around the
back of the NB Unit. Insert the hooks of positioners into the square holes on the Unit to hold the
fixators properly, and tighten the screws firmly with the screwdriver.
NB5Q/NB7W-TWB
2-1-2 Installation onto the Operation Panel
Models Opening Dimension (W¯H mm)
NB3Q-TW00B/TW01B 119.0(+0.5/-0)¯93.0(+0.5/-0)
NB5Q-TW00B/TW01B 172.4(+0.5/-0)¯131.0(+0.5/-0)
NB7W-TW00B/TW01B 191.0(+0.5/-0)¯137.0(+0.5/-0)
NB10W-TW01B 258.0(+0.5/-0)¯200.0(+0.5/-0)
Opening dimensions
Width
Height
