Representing Data
96

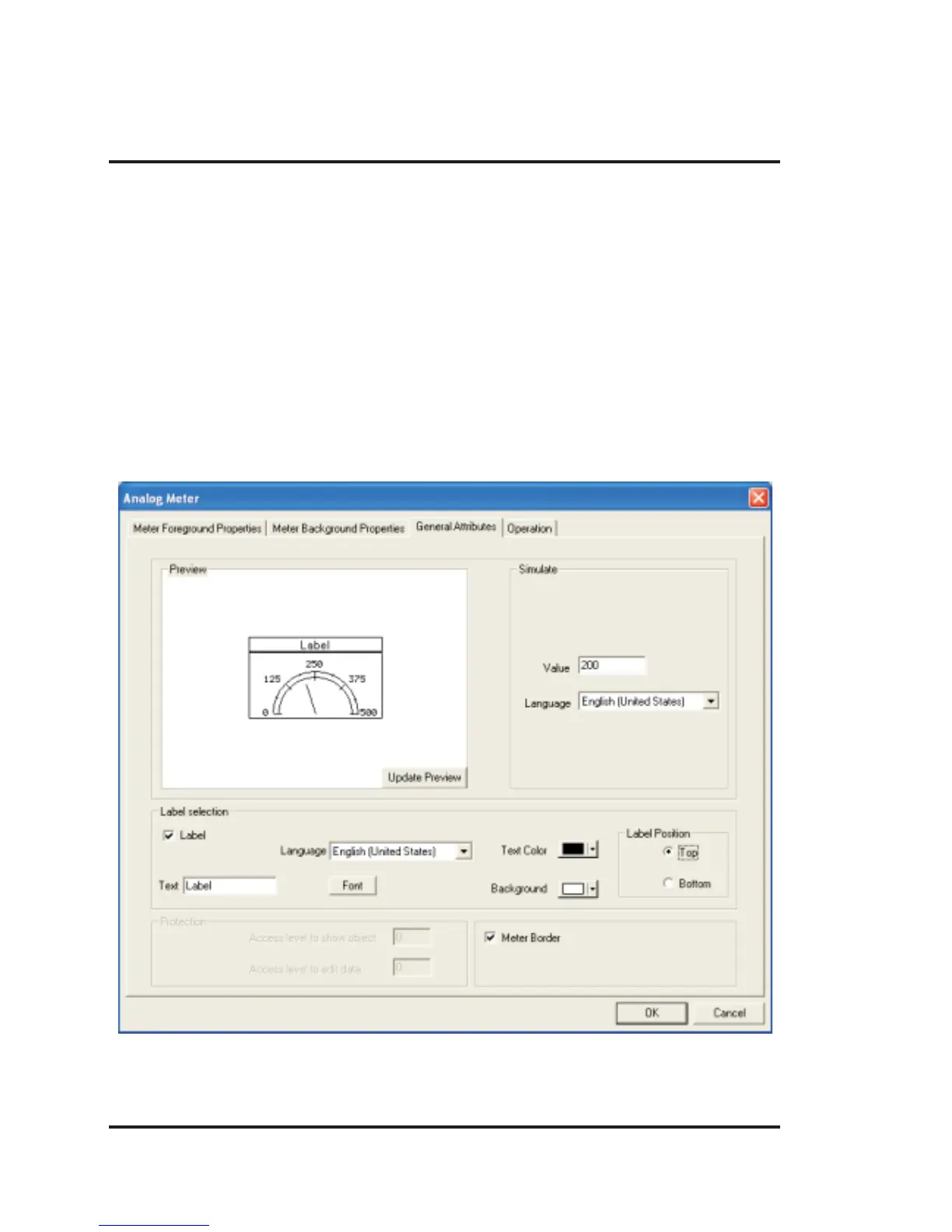

General Attributes
Label selection
Parameters related to the meter label can be configured here if the Label selection is enabled. (Check
box ‘Label’ is selected).
1. Text : Up to 14 characters of label text may be specified.
2. Font : Select the Windows® Font, Font Style and Font size.
3. Language : Displays the list of languages depending upon number of languages
configured in the NTXS Unit Settings.
4. Text Color : Selects the color of the text.
5. Background : Selects the background color of text.
6. Label position : If the “Top” option is selected, the label is shown above the meter. If the
“Bottom” option is selected, the label is shown below the meter.
Meter Border
If the “Meter Border” is enabled, the meter is shown with a border. This is the default condition.
