2-108

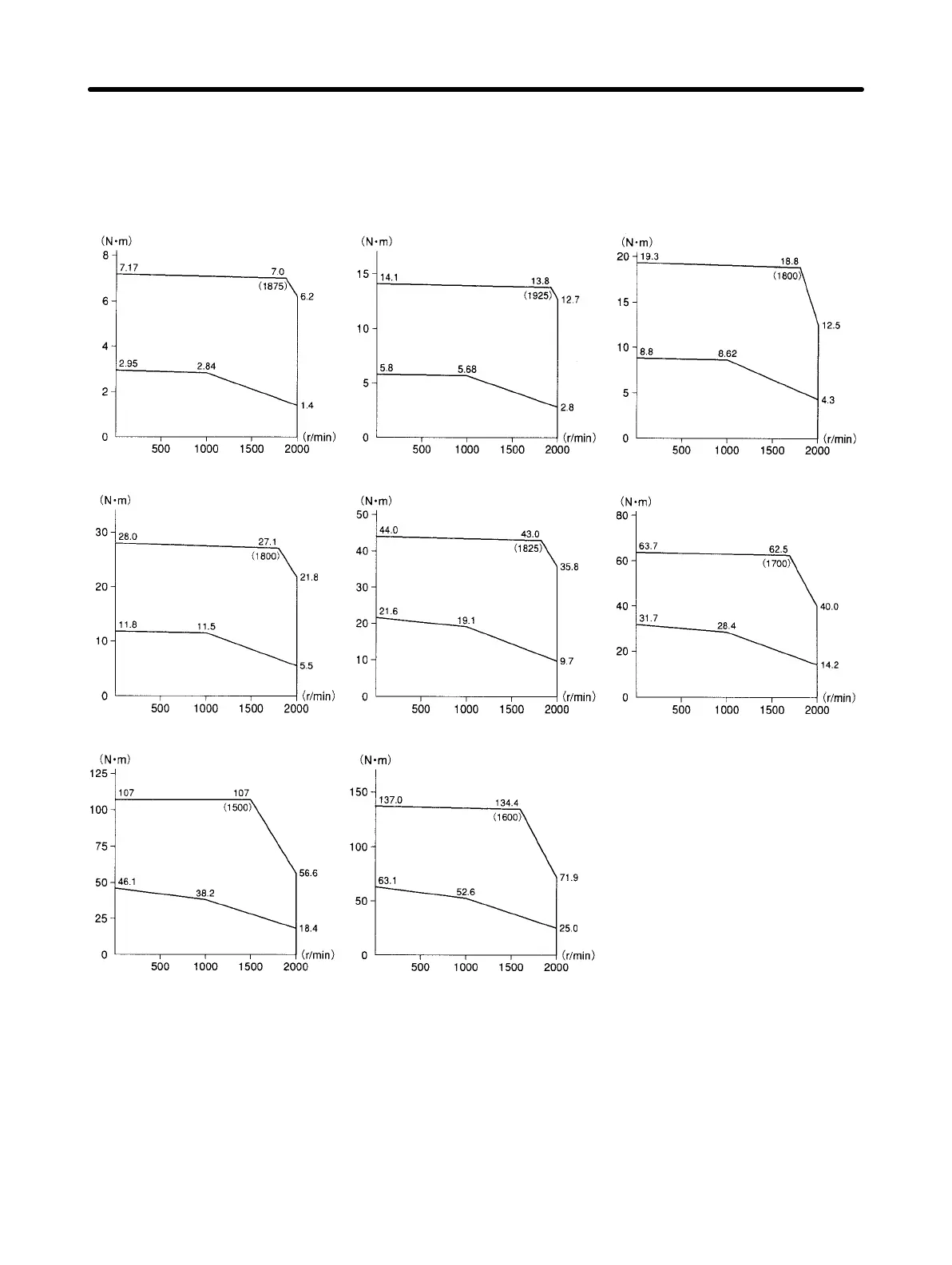

D Torque and Rotation Speed Characteristics
1,000-r/min Servomotors (200 V AC)
The following graphs show the characteristics with a 3-m standard cable and 200-V AC input.
R88M-W30010H/T (300 W) R88M-W60010H/T (600 W) R88M-W90010H/T (900 W)
R88M-W1K210H/T (1.2 kW) R88M-W2K010H/T (2 kW) R88M-W3K010H/T (3 kW)
R88M-W4K010H/T (4 kW) R88M-W5K510H/T (5.5 kW)
Repeated usage
Continuous usage
Repeated usage
Continuous usage
Repeated usage
Continuous usage
Repeated usage
Continuous usage
Repeated usage
Continuous usage
Repeated usage
Continuous usage
Repeated usage
Continuous usage
Repeated usage
Continuous usage
Standard Models and Specifications Chapter 2
