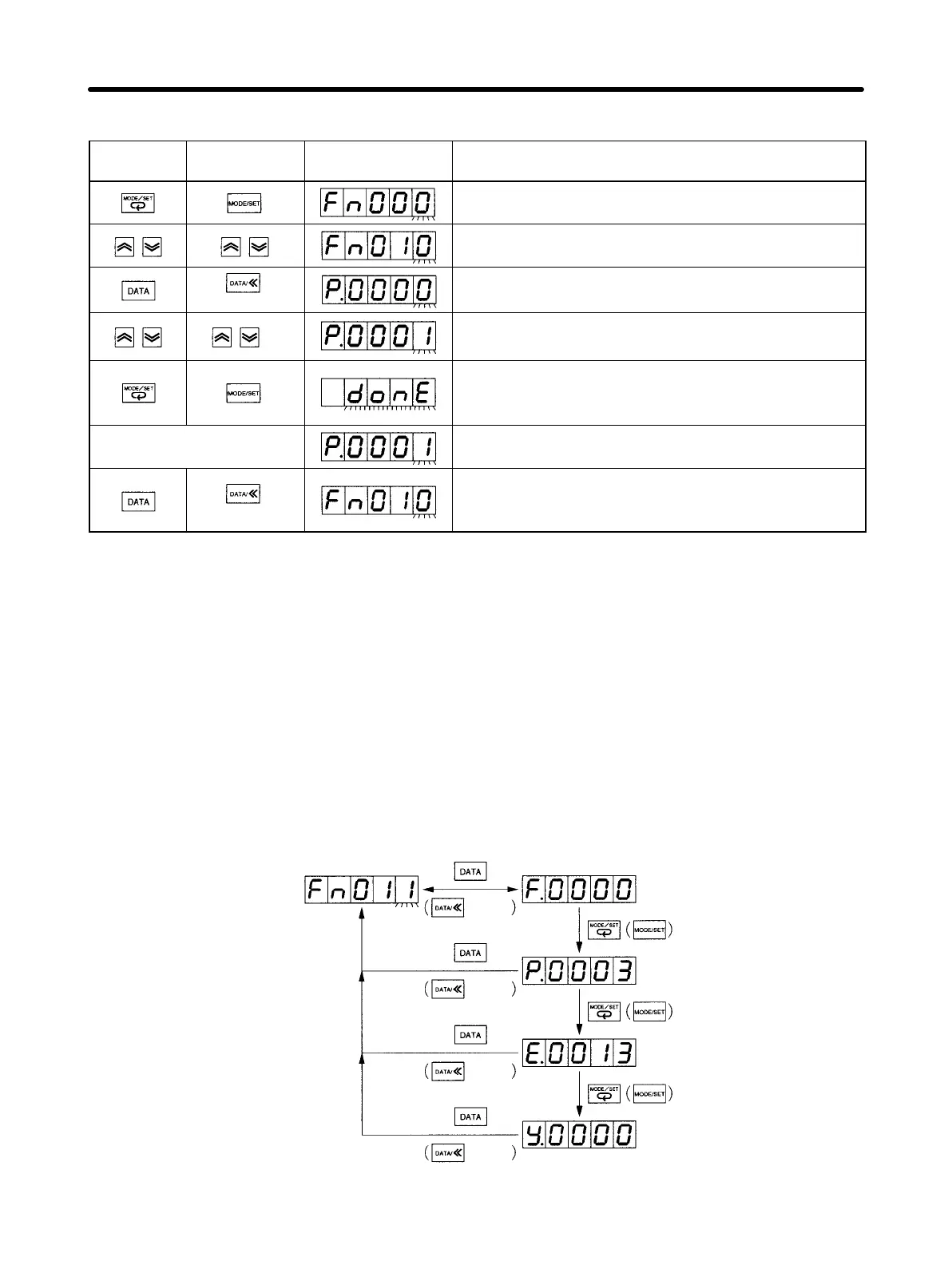

4-150
Operation Procedure
PR02W
operation
Front panel
key operation
Display Explanation
Press the MODE/SET Key to change to System Check
Mode.
Press the Up or Down Key to set function code Fn010.
(See note 1.)
(1 s min.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to display the password “P.jjjj.”
Press the Up or Down Key to select the password.
0000: Write enabled, 0001: Write prohibited.
Press the MODE/SET Key to set the password. When
setting is complete, “donE” will flash for approximately
1 s.
(Approx. 1 s later) After displaying “donE,” the display will return to
“P.jjjj.”
(1 s min.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to return to the System Check Mode function code
display.
Note 1. The digits you can manipulate will flash.
Note 2. If this is set to any value other than 0000 or 0001, “Error” will flash for approximately 1 s, and
then the display will return to the original password.
4-11-9 Checking Servomotor Parameters
H Checking Servomotor Parameters (Fn011)
You can check the type of Servomotor, encoder, etc., that is connected.
System Check Mode
Servomotor parameter
check
Servomotor voltage and
Servomotor type displayed.
Servomotor capacity dis-
played
Encoder information dis-
played.
Servo Driver specifica-
tions displayed.
1 s min.
1 s min.
1 s min.
1 s min.
Operation Chapter 4
