2-167

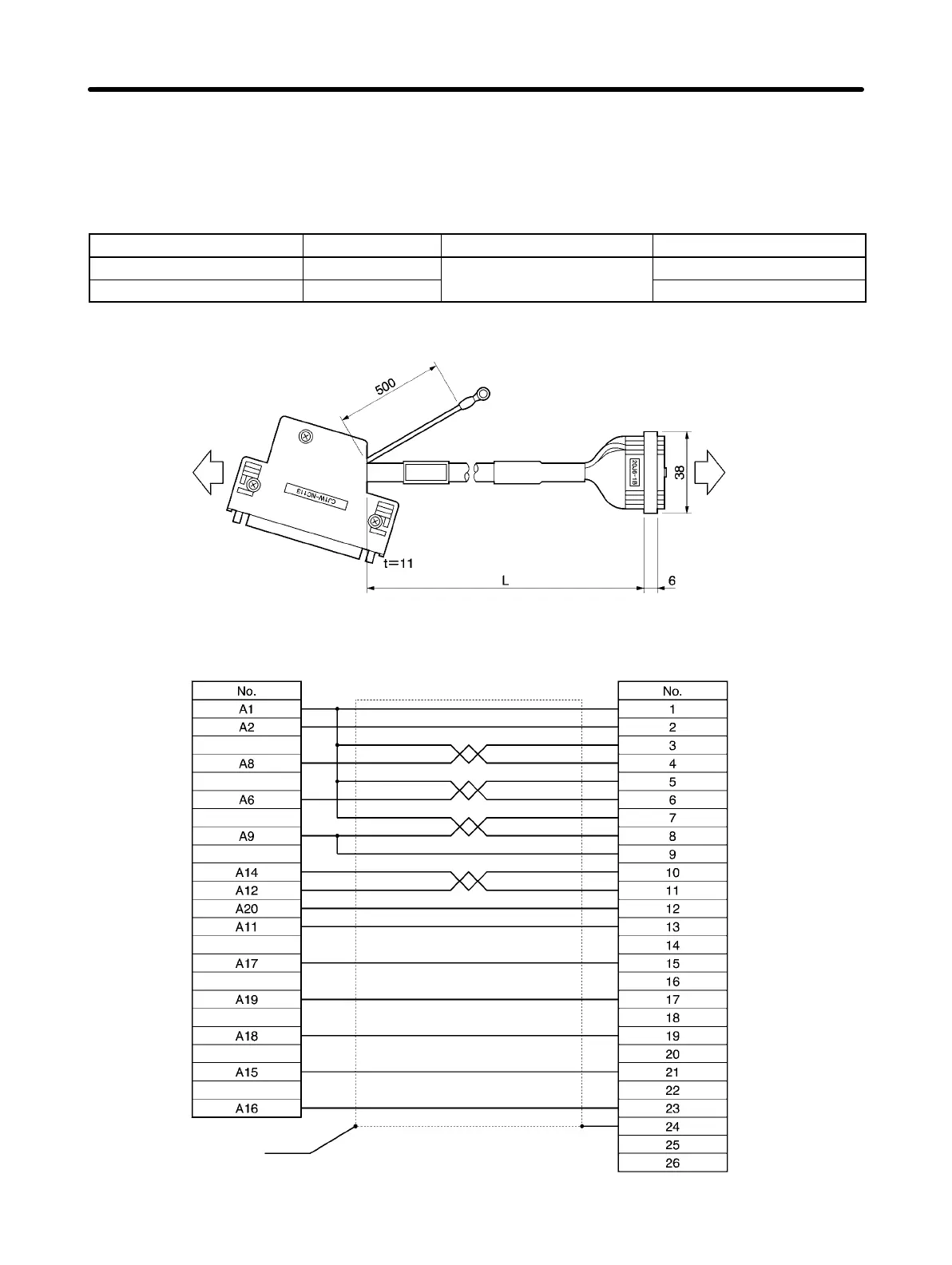

H Position Control Unit Cable (XW2Z-jJ-A14)
This is the cable for connecting between a CJ1W-NC113 Position Control Unit and an XW2B-20J6-1B
Servo Relay Unit.
D Cable Models
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A14 50 cm
10.0 dia.
Approx. 0.1 kg
XW2Z-100J-A14 1 m Approx. 0.2 kg
D Connection Configuration and External Dimensions
Position Control Unit
CS1W-NC113
XW2B-20J6-1B
Servo Relay Unit
D Wiring
Position Control Unit
Cable: AWG28 × 4P + AWG28 ×10C
Servo Relay Unit
Crimp terminal
Standard Models and Specifications Chapter 2
