2-172

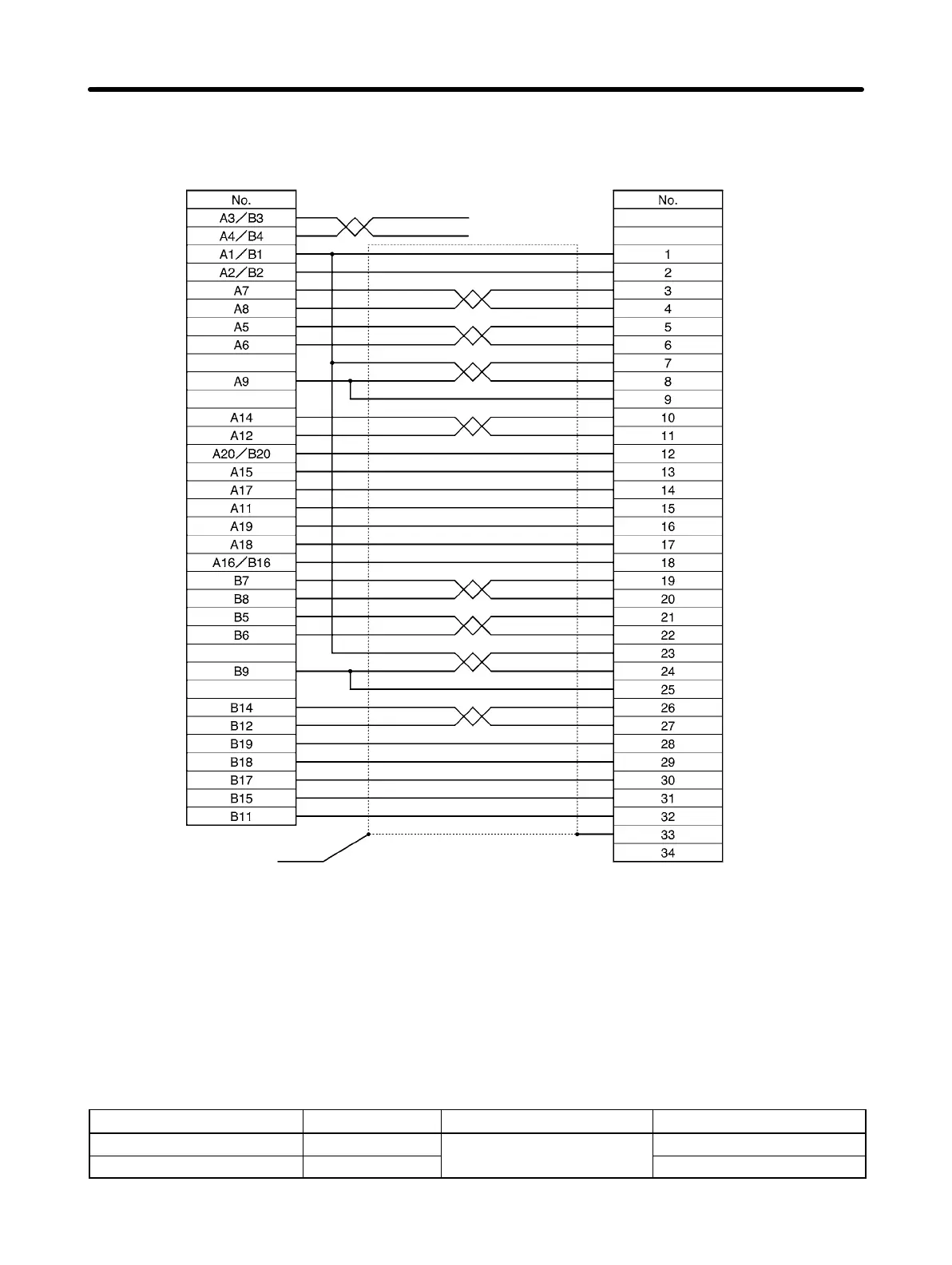

D Wiring
Position Control Unit
Cable: AWG28 × 8P + AWG28 ×16C
Servo Relay Unit
Crimp terminal
AWG20, black
AWG20, red
H Position Control Unit Cable (XW2Z-jJ-A22)
This is the cable for connecting between a CS1W-HCP22-V1 Position Control Unit and an
XW2B-20J6-3B Servo Relay Unit.
D Cable Models
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A22 50 cm
10.0 dia.
Approx. 0.1 kg
XW2Z-100J-A22 1 m Approx. 0.2 kg
Standard Models and Specifications Chapter 2
