Omron OMNUC R88D-WT15HF User Manual

1-12

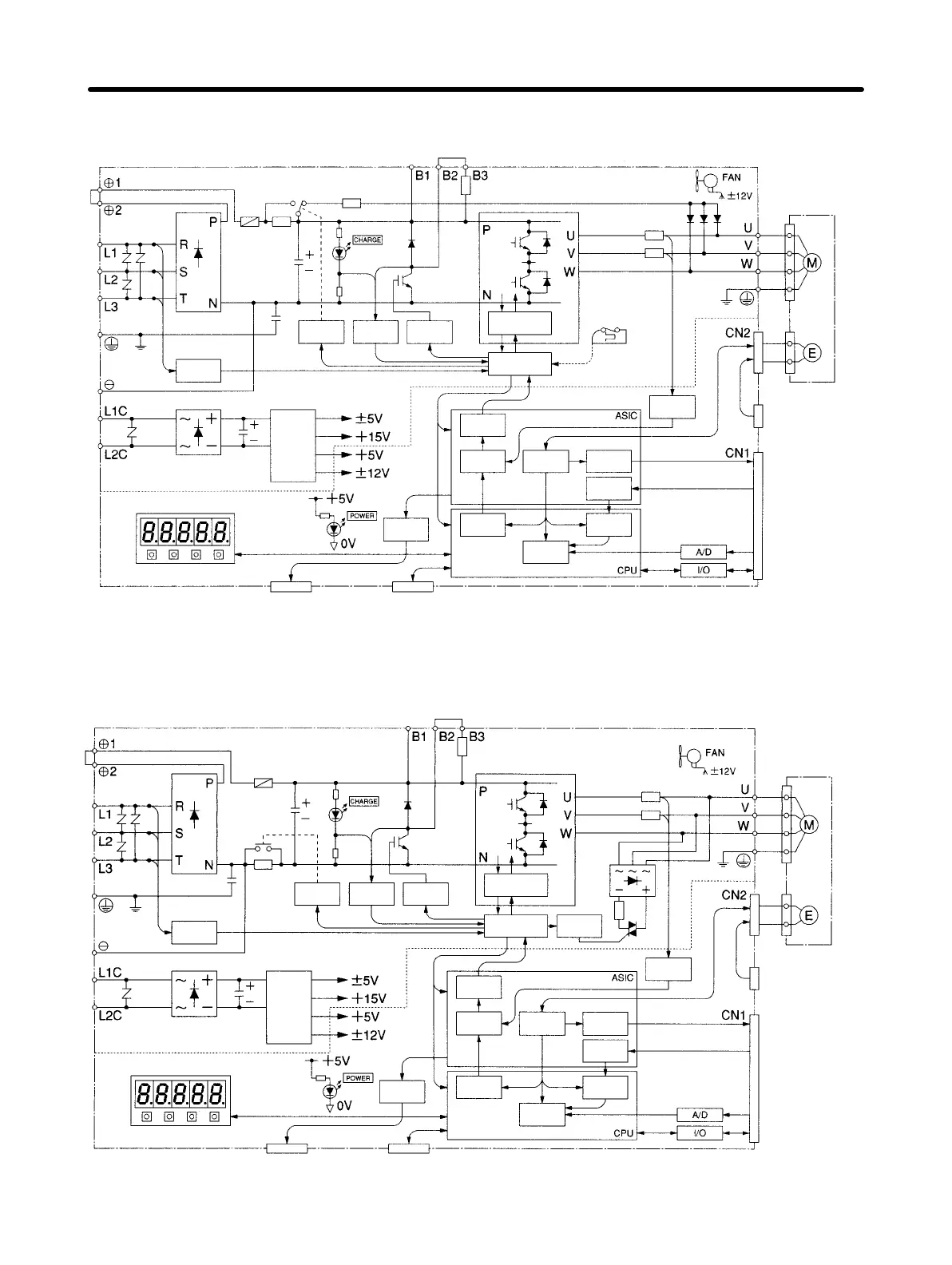

H 200 V AC: R88D-WT05H/-WT08H/-WT10H/-WT15H
AC Servo Driver
Thermistor
AC Servomotor
Fuse
0.5 to 1 kW
Interface
Gate drive
overcurrent
protection
Gate
drive
Voltage
detection
Relay
drive
Serial port
Speed
control
Current
command
processing
Position
control
Command
pulse
processing
Divider
Encoder
signal
processing
Digital
current amp
PWM
generation
CN5
Analog monitor output
CN3
Parameter Unit/computer
Battery Connector
(CN8)
Encoder output
Command pulse
input
Speed/torque
command input
Control I/O
DC/DC
conver-
sion
Analog voltage
conversion
Display/Settings Area
Voltage
detection
Current
detection
H 200 V AC: R88D-WT20H/-WT30H/-WT50H
AC Servo Driver
AC Servomotor
Battery Connector
(CN8)
Encoder output
Command pulse
input
Speed/torque
command input
Control I/O
CN5
Analog monitor output
CN3
Parameter Unit/computer
Display/Settings Area
Serial port
Speed
control
Current
command
processing
Position
control
Command
pulse
processing
Divider
Encoder signal
processing
Digital
current amp
PWM
generation
Fuse
Gate
drive
Voltage
detection
Relay
drive
DC/DC
con-
version
Voltage
detection
Interface
Gate drive
overcurrent
protection
Current
detection
Gate
drive
Analog
voltage
conversion
