Appendix BSpecifications
86

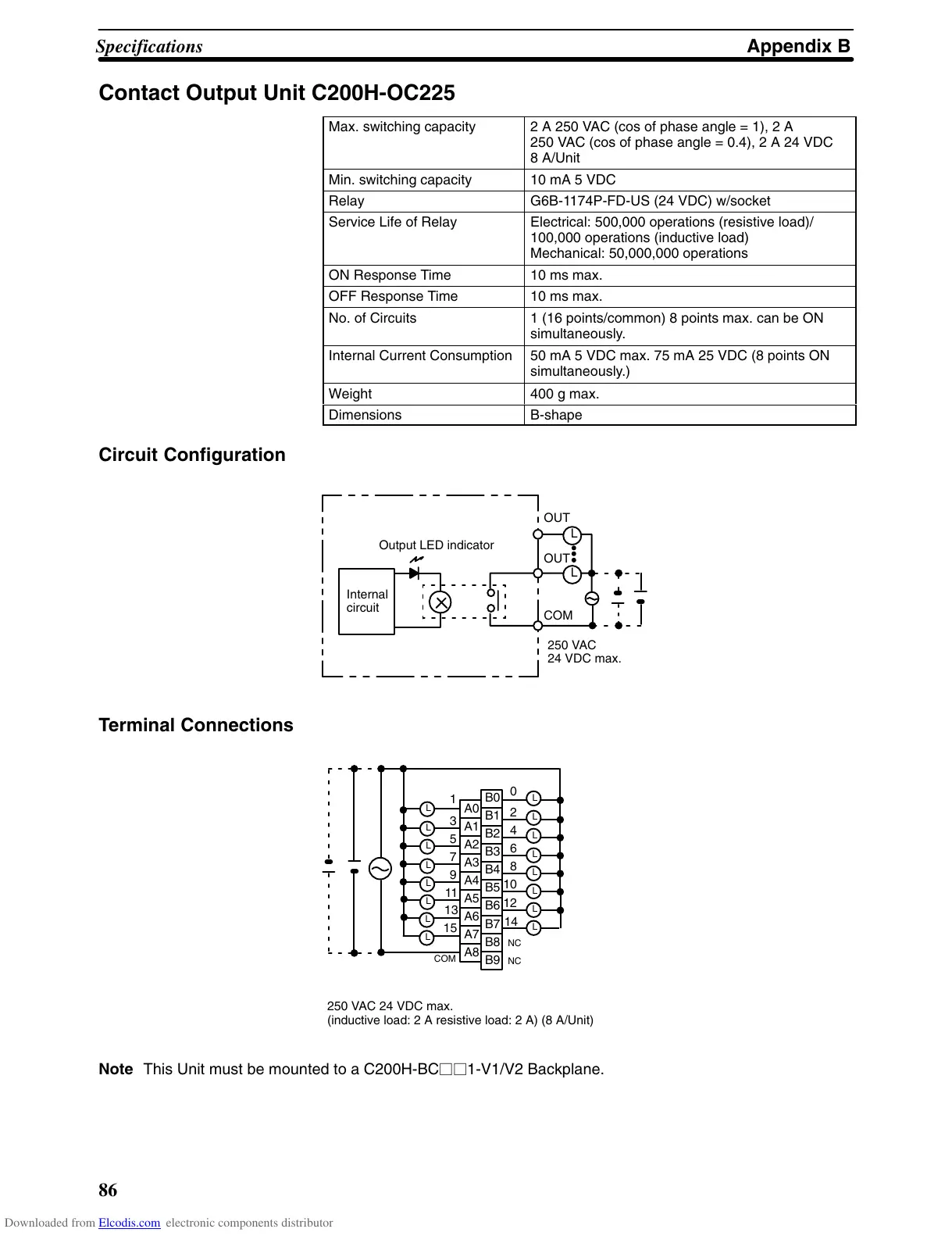

Contact Output Unit C200H-OC225
Max. switching capacity 2 A 250 VAC (cos of phase angle = 1), 2 A
250 VAC (cos of phase angle = 0.4), 2 A 24 VDC
8 A/Unit
Min. switching capacity 10 mA 5 VDC
Relay G6B-1174P-FD-US (24 VDC) w/socket
Service Life of Relay Electrical: 500,000 operations (resistive load)/
100,000 operations (inductive load)
Mechanical: 50,000,000 operations
ON Response Time 10 ms max.
OFF Response Time 10 ms max.
No. of Circuits 1 (16 points/common) 8 points max. can be ON
simultaneously.
Internal Current Consumption 50 mA 5 VDC max. 75 mA 25 VDC (8 points ON
simultaneously.)
Weight 400 g max.
Dimensions B-shape
Circuit Configuration
Internal
circuit
L
L
OUT
COM
OUT
Output
LED indicator
250 V
AC
24 VDC max.
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
1
3
5
7
9
11
NC
0
2
4
6
8
10
NC
250
V
AC 24 VDC max.
(inductive load: 2 A resistive load: 2 A) (8 A/Unit)
L
L
L
L
L
L
L
L
L
L
L
L
15
L
L
12
13
14
L
L
Note This Unit must be mounted to a C200H-BCjj1-V1/V2 Backplane.
