5-2SectionMounting Requirements
47

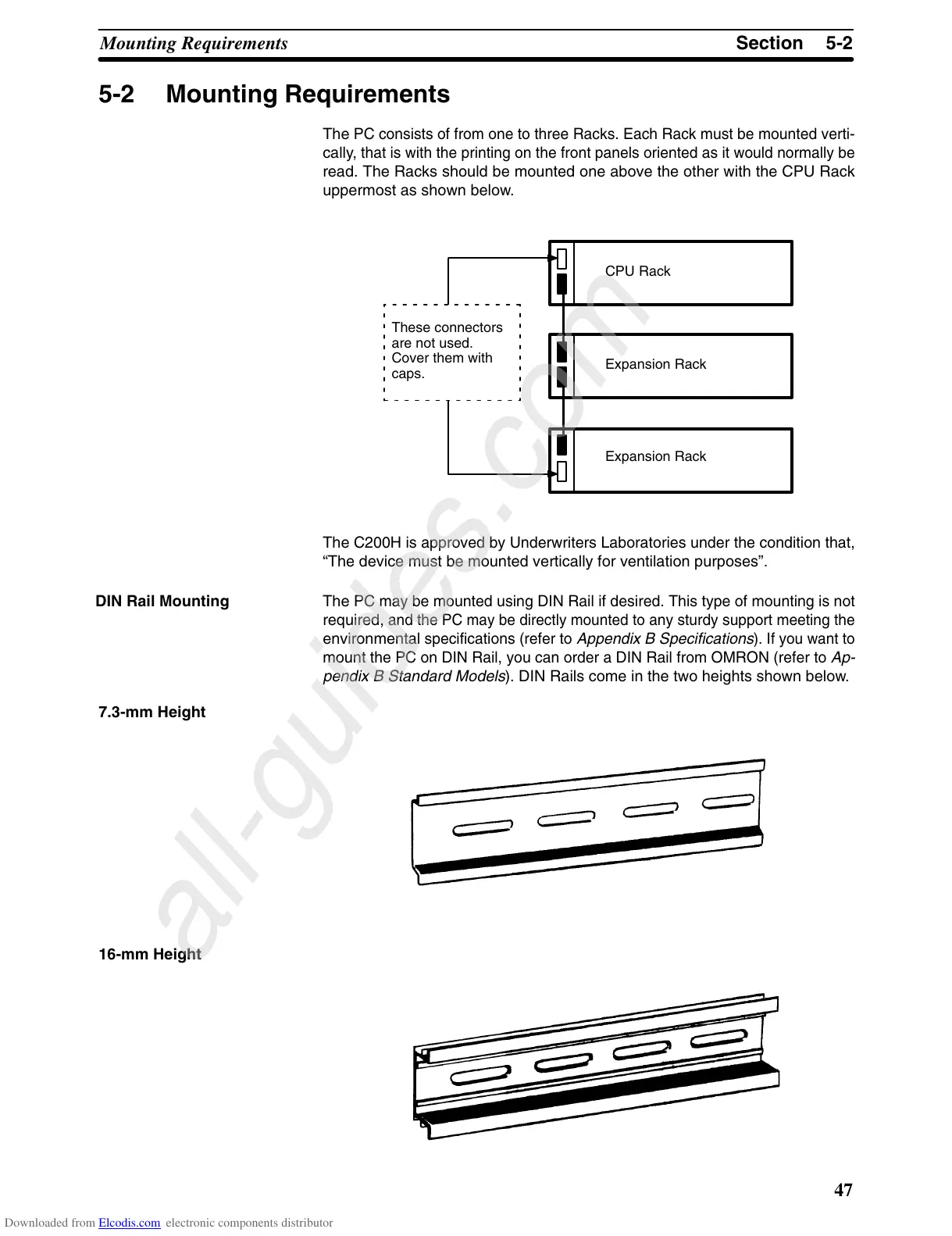

5-2 Mounting Requirements
The
PC consists of from one
to three Racks. Each Rack must be mounted verti
-
cally
, that is with the printing on the front panels oriented as it would normally be
read. The Racks should be mounted one above the other with the CPU Rack
uppermost as shown below.
CPU Rack
Expansion Rack
Expansion Rack
These connectors
are not used.
Cover them with
caps.
The
C200H is approved by Underwriters Laboratories under the condition that,
“The device must be mounted vertically for ventilation purposes”.
The
PC may be mounted using DIN Rail if desired. This type of mounting is not
required,
and the PC may be directly mounted to
any sturdy support meeting the
environmental
specifications (refer to
Appendix B
Specifications
). If you want to
mount
the PC on DIN Rail, you can
order a DIN Rail from OMRON (refer to
Ap-
pendix B Standard Models
). DIN Rails come in the two heights shown below.
7.3-mm Height
16-mm Height
DIN Rail Mounting
