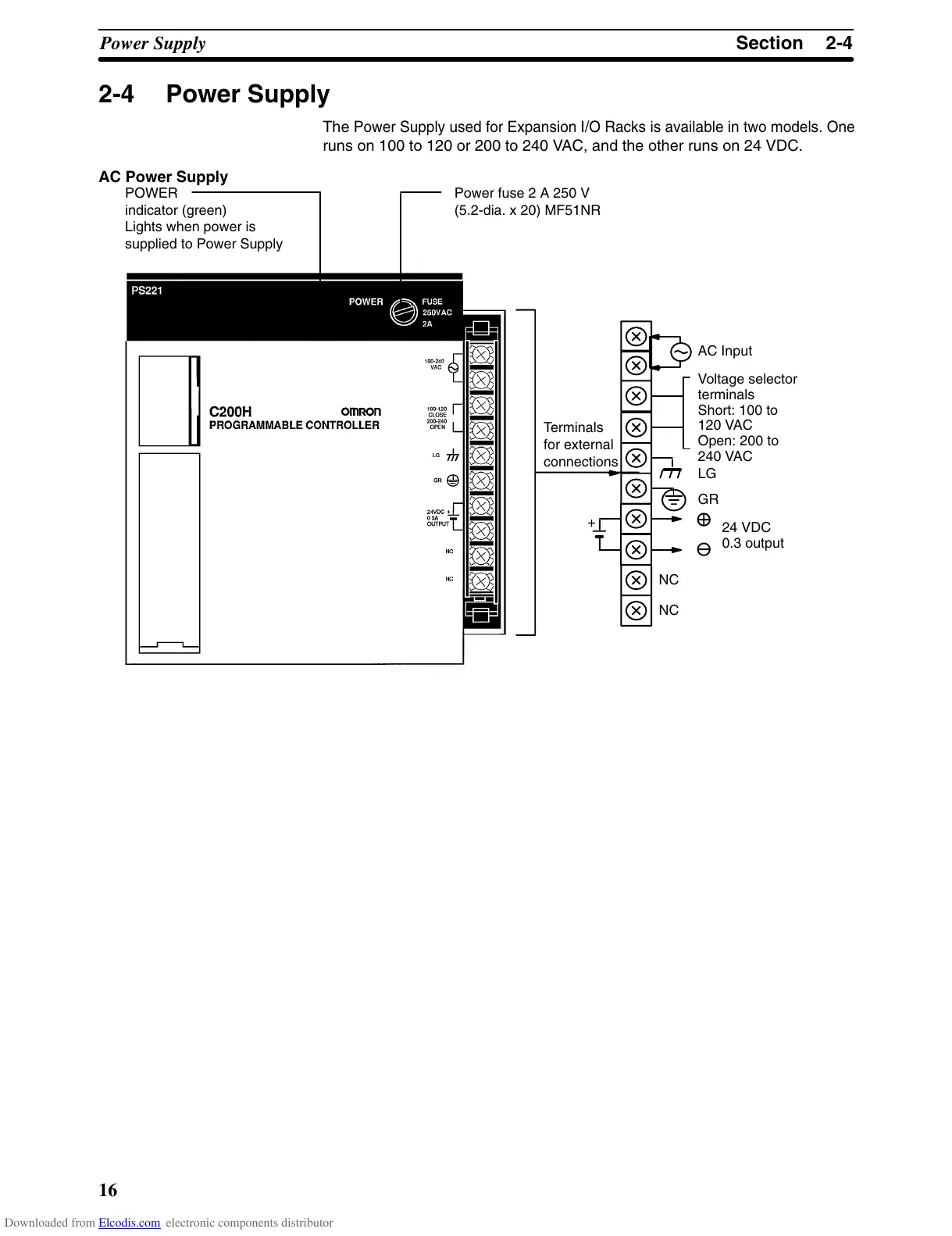

2-4 Power Supply
The Power Supply used for Expansion I/O Racks is available in two models. One
runs on 100 to 120 or 200 to 240 VAC, and the other runs on 24 VDC.
AC Power Supply
POWER
indicator (green)
Lights when power is
supplied to Power Supply
Power fuse 2 A 250 V
(5.2-dia. x 20) MF51NR
Voltage selector
terminals
Short: 100 to
120 VAC
Open: 200 to
240 VAC
Terminals
for external
connections
NC
NC
GR
LG
AC Input
+
24 VDC
0.3 output
