3-3SectionSystem Configurations
29

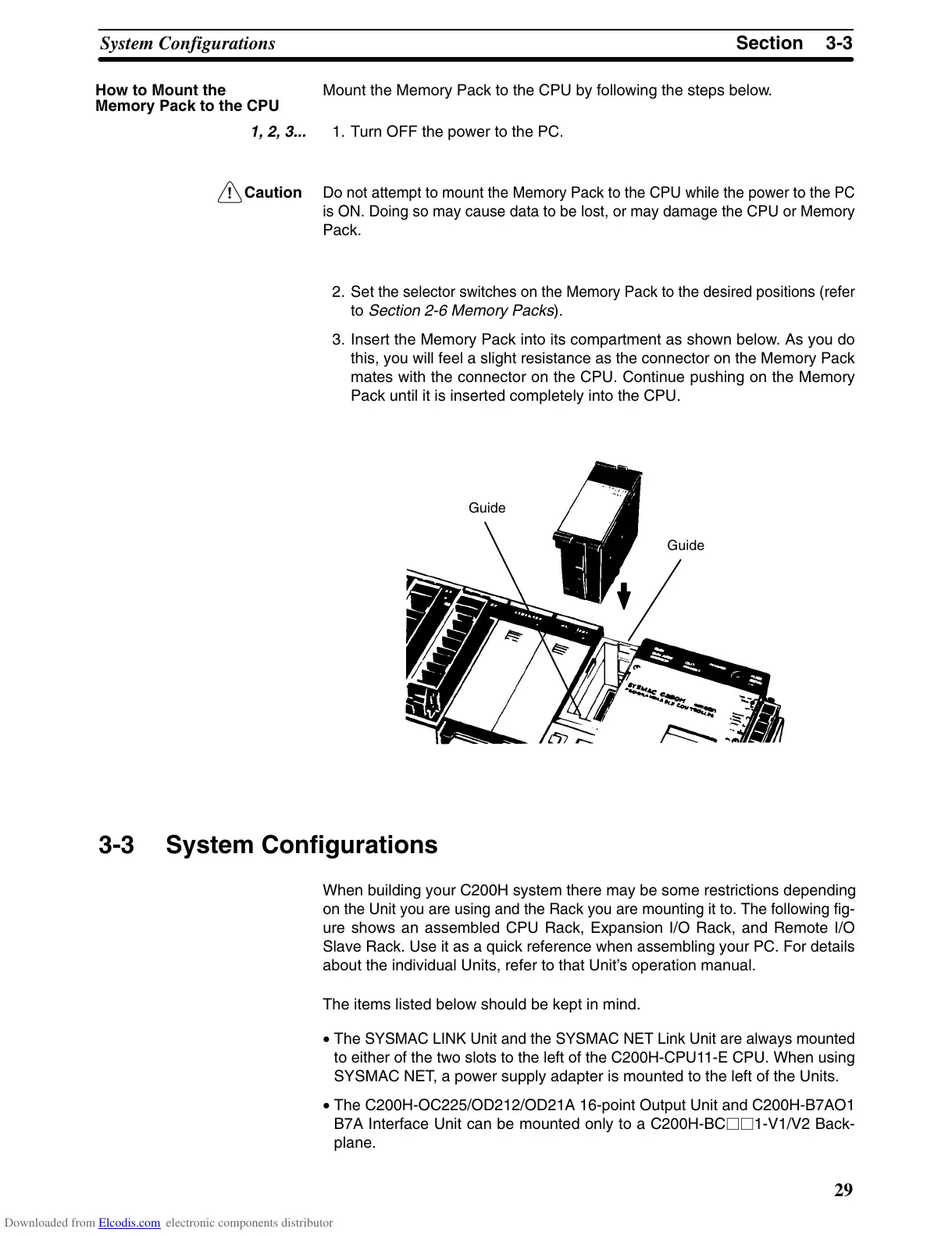

Mount the Memory Pack to the CPU by following the steps below.
1, 2, 3...
1. Turn OFF the power to the PC.
Caution Do
not attempt to mount the Memory Pack to the CPU while the power to the
PC
is
ON. Doing so
may cause data to be lost, or may damage the CPU or Memory
Pack.
2. Set
the selector switches on the Memory Pack to the desired positions (refer
to
Section 2-6 Memory Packs
).
3. Insert the Memory Pack into its compartment as shown below. As you do
this,
you will feel a slight resistance as the connector on the Memory
Pack
mates with the connector on the CPU. Continue pushing on the Memory
Pack until it is inserted completely into the CPU.
Guide
Guide
3-3 System Configurations
When building your C200H system there may be some restrictions depending
on
the
Unit you are using and the Rack you are mounting it to. The following fig
-
ure shows an assembled CPU Rack, Expansion I/O Rack, and Remote I/O
Slave
Rack. Use it as a quick reference when assembling your
PC. For details
about the individual Units, refer to that Unit’s operation manual.
The items listed below should be kept in mind.
• The
SYSMAC LINK Unit and the SYSMAC NET Link Unit are always mounted
to
either of the two slots to the left of the C200H-CPU1
1-E CPU. When using
SYSMAC NET, a power supply adapter is mounted to the left of the Units.
• The
C200H-OC225/OD212/OD21A 16-point Output Unit and C200H-B7AO1
B7A Interface Unit can be mounted only to a C200H-BCjj1-V1/V2 Back-
plane.
How to Mount the
Memory Pack to the CPU
