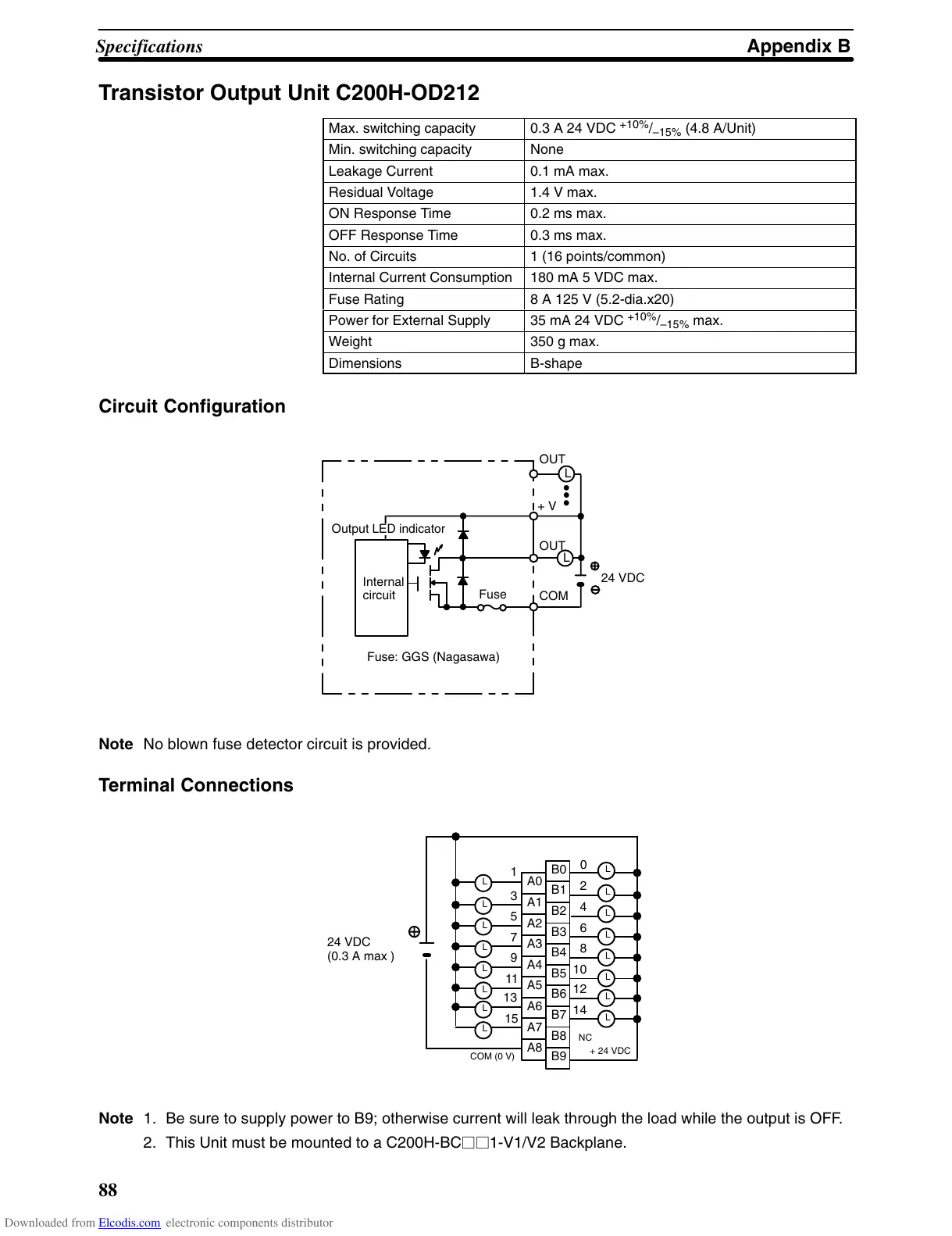

Transistor Output Unit C200H-OD212
Max. switching capacity 0.3 A 24 VDC
+10%
/
–15%
(4.8 A/Unit)
Min. switching capacity None
Leakage Current 0.1 mA max.
Residual Voltage 1.4 V max.
ON Response Time 0.2 ms max.
OFF Response Time 0.3 ms max.
No. of Circuits 1 (16 points/common)
Internal Current Consumption 180 mA 5 VDC max.
Fuse Rating 8 A 125 V (5.2-dia.x20)
Power for External Supply 35 mA 24 VDC
+10%
/
–15%
max.
Weight 350 g max.
Dimensions B-shape
Circuit Configuration
Internal
circuit
L
OUT
COM
OUT
Output
LED
indicator
L
+
V
Fuse: GGS (Nagasawa)
24 VDC
Fuse
Note No blown fuse detector circuit is provided.
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
(0 V)
1
3
5
7
9
11
NC
0
2
4
6
8
10
24 VDC
(0.3 A max )
L
L
L
L
L
L
L
L
L
L
L
L
+ 24 VDC
L
L
13
15
L
L
12
14
Note 1. Be sure to supply power to B9; otherwise current will leak through the load while the output is OFF.
2. This Unit must be mounted to a C200H-BCjj1-V1/V2 Backplane.
