Appendix BSpecifications
93

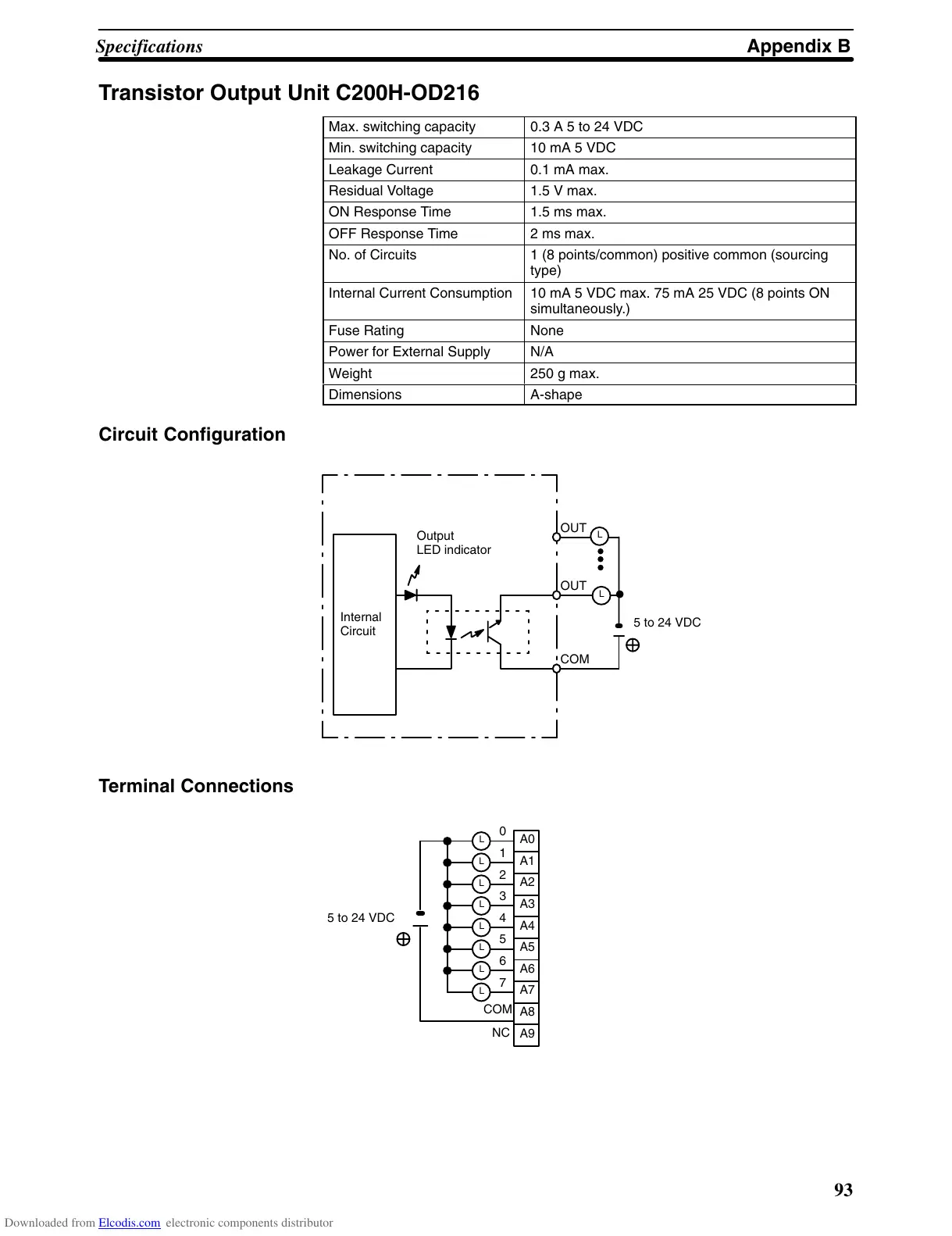

Transistor Output Unit C200H-OD216
Max. switching capacity 0.3 A 5 to 24 VDC
Min. switching capacity 10 mA 5 VDC
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 1.5 ms max.
OFF Response Time 2 ms max.
No. of Circuits 1 (8 points/common) positive common (sourcing
type)
Internal Current Consumption 10 mA 5 VDC max. 75 mA 25 VDC (8 points ON
simultaneously.)
Fuse Rating None
Power for External Supply N/A
Weight 250 g max.
Dimensions A-shape
Circuit Configuration
Output
LED
indicator
OUT
OUT
COM
Internal
Circuit
5 to 24 VDC
L
L
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
COM
5
to 24 VDC
NC
L
L
L
L
L
L
L
L
