Appendix BSpecifications
95

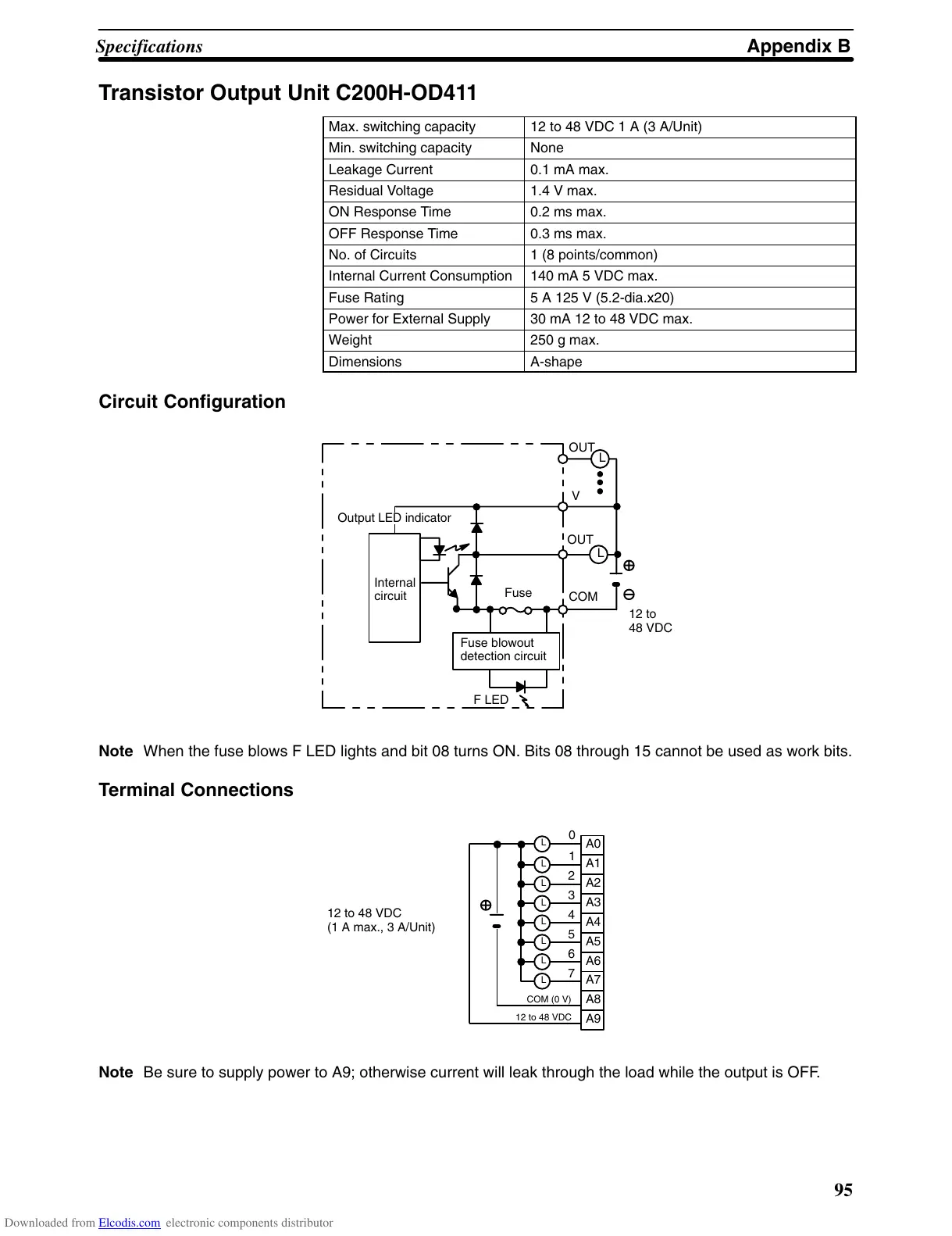

Transistor Output Unit C200H-OD411
Max. switching capacity 12 to 48 VDC 1 A (3 A/Unit)
Min. switching capacity None
Leakage Current 0.1 mA max.
Residual Voltage 1.4 V max.
ON Response Time 0.2 ms max.
OFF Response Time 0.3 ms max.
No. of Circuits 1 (8 points/common)
Internal Current Consumption 140 mA 5 VDC max.
Fuse Rating 5 A 125 V (5.2-dia.x20)
Power for External Supply 30 mA 12 to 48 VDC max.
Weight 250 g max.
Dimensions A-shape
Circuit Configuration
Internal
circuit
L
OUT
COM
OUT
L
F LED
Fuse blowout
detection circuit
V
Fuse
12 to
48 VDC
Output
LED
indicator
Note When the fuse blows F LED lights and bit 08 turns ON. Bits 08 through 15 cannot be used as work bits.
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
L
L
L
L
L
L
L
L
COM
(0 V)
12 to 48 VDC
12
to 48 VDC
(1 A max., 3 A/Unit)
Note Be sure to supply power to A9; otherwise current will leak through the load while the output is OFF.
