Appendix BSpecifications
97

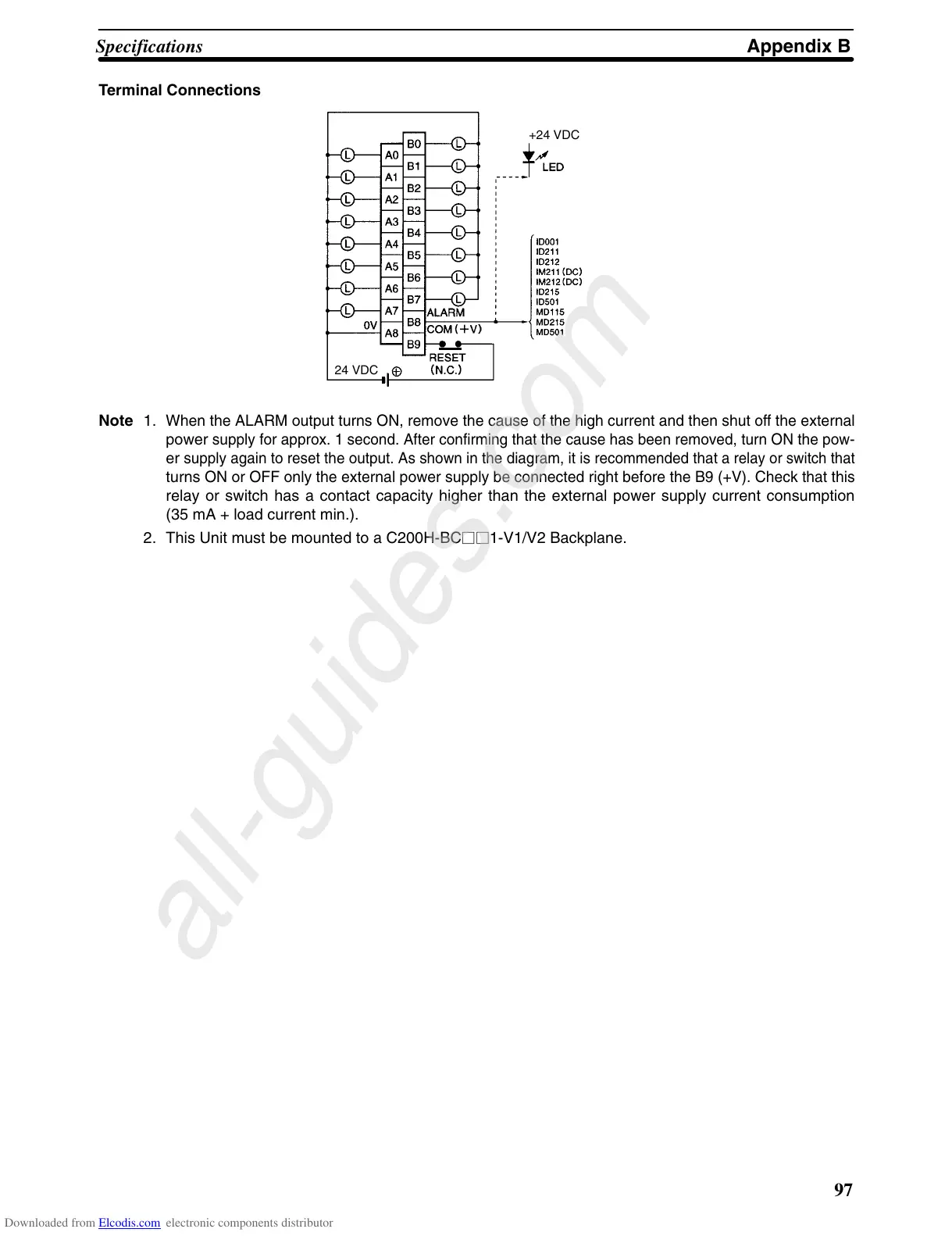

Terminal Connections
+24 VDC
24 VDC
Note 1.
When the ALARM output turns ON, remove the cause of
the high current and then shut of
f the external
power
supply for approx. 1 second. After confirming that the cause has been removed, turn ON the pow
-
er
supply again to reset the output. As shown in the diagram, it is recommended that
a relay or switch that
turns
ON or OFF only the external power supply be connected right before the
B9 (+V). Check that this
relay or switch has a contact capacity higher than the external power supply current consumption
(35 mA + load current min.).
2. This Unit must be mounted to a C200H-BCjj1-V1/V2 Backplane.
