Appendix CStandard Models
115

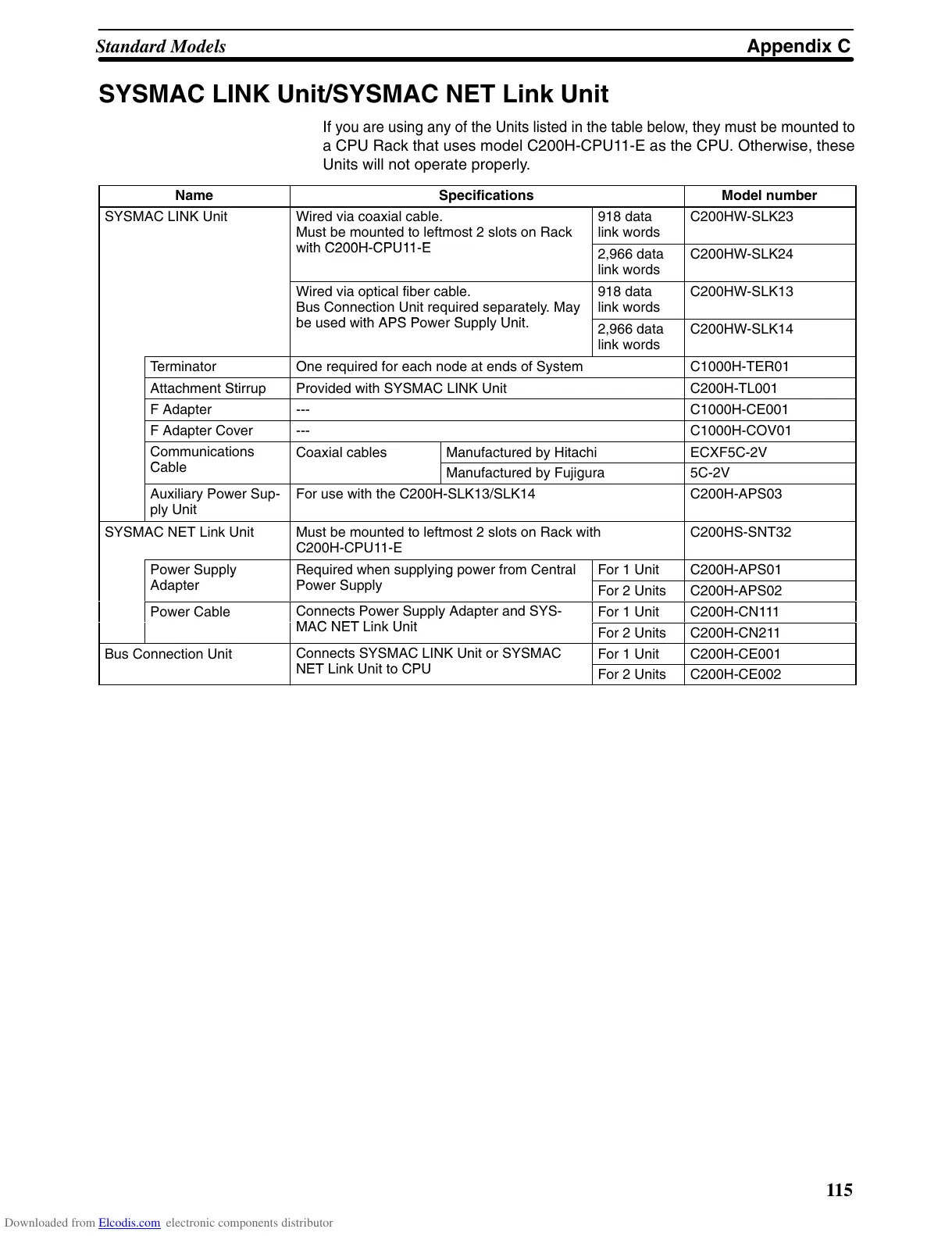

SYSMAC LINK Unit/SYSMAC NET Link Unit
If you are using any of the Units listed in the table below , they must be mounted to
a CPU Rack that uses model C200H-CPU11-E as the CPU. Otherwise, these
Units will not operate properly.
Name Specifications Model number
SYSMAC LINK Unit
Wired via coaxial cable.
Must be mounted to leftmost 2 slots on Rack
ith C200H CPU11 E
918 data
link words
C200HW-SLK23
with C200H-CPU11-E
2,966 data
link words
C200HW-SLK24
Wired via optical fiber cable.
Bus Connection Unit required separately. May
b d ith APS P S l U it
918 data
link words
C200HW-SLK13
qyy
be used with APS Power Supply Unit.
2,966 data
link words
C200HW-SLK14
Terminator One required for each node at ends of System C1000H-TER01
Attachment Stirrup Provided with SYSMAC LINK Unit C200H-TL001
F Adapter --- C1000H-CE001
F Adapter Cover --- C1000H-COV01
Communications
Cbl
Coaxial cables Manufactured by Hitachi ECXF5C-2V
Cable
Manufactured by Fujigura 5C-2V
Auxiliary Power Sup-
ply Unit
For use with the C200H-SLK13/SLK14 C200H-APS03
SYSMAC NET Link Unit Must be mounted to leftmost 2 slots on Rack with
C200H-CPU11-E
C200HS-SNT32
Power Supply
Ad
Required when supplying power from Central
PSl
For 1 Unit C200H-APS01
y
Adapter
qyg
Power Supply
For 2 Units C200H-APS02
Power Cable
Connects Power Supply Adapter and SYS-
MAC NET Li k U i
For 1 Unit C200H-CN111
y
MAC NET Link Unit
For 2 Units C200H-CN211
Bus Connection Unit
Connects SYSMAC LINK Unit or SYSMAC
NET Li k U i CPU
For 1 Unit C200H-CE001
NET Link Unit to CPU
For 2 Units C200H-CE002
