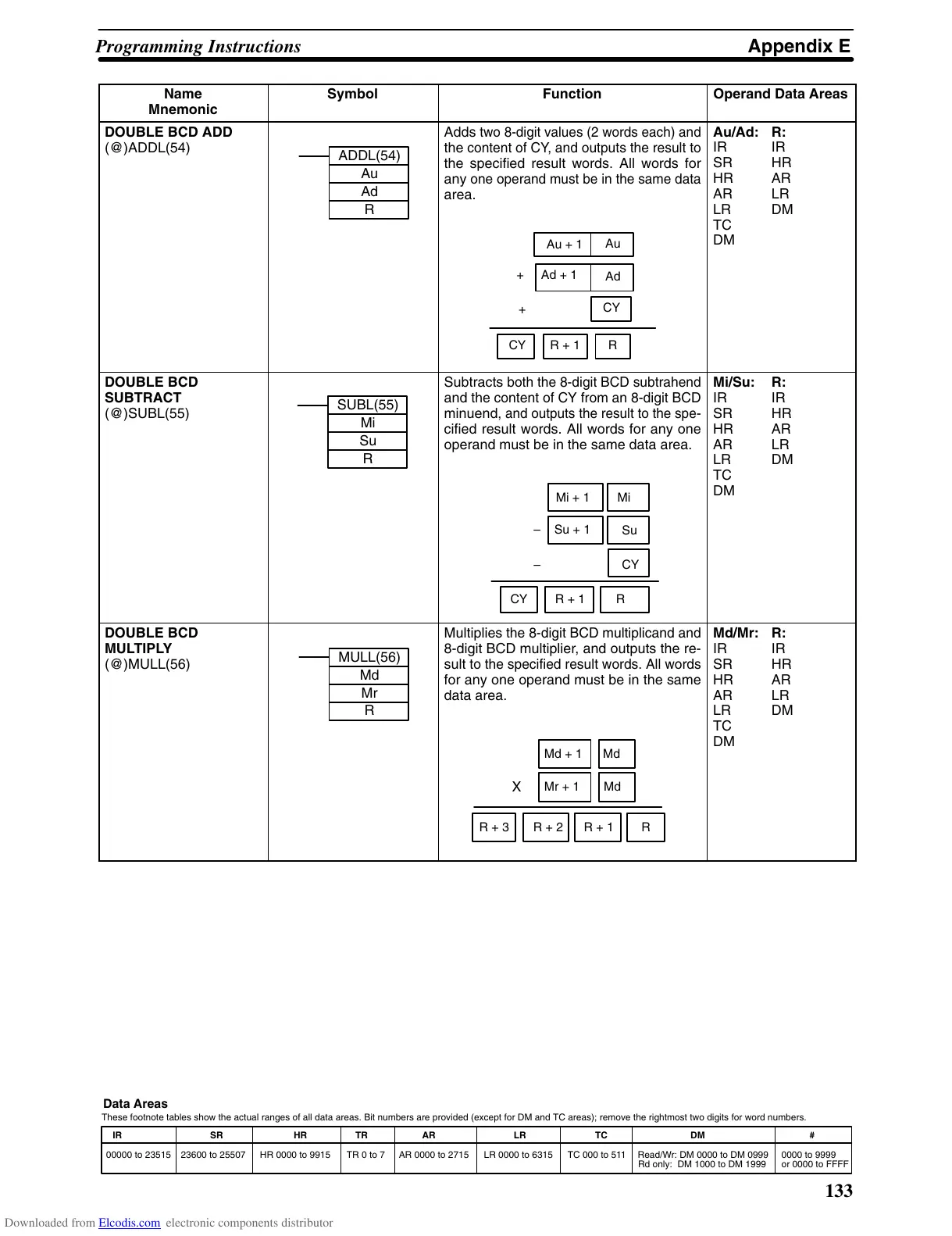

Appendix EProgramming Instructions
133
IR SR HR TR AR LR TC DM #
00000 to 23515 23600 to 25507 HR 0000 to 9915 TR 0 to 7 AR 0000 to 2715 LR 0000 to 6315 TC 000 to 511 Read/Wr: DM 0000 to DM 0999
Rd only: DM 1000 to DM 1999
0000 to 9999
or 0000 to FFFF
These footnote tables show the actual ranges of all data areas. Bit numbers are provided (except for DM and TC areas); remove the rightmost two digits for word numbers.
Data
Areas
Name
Mnemonic
Operand Data AreasFunctionSymbol
DOUBLE BCD ADD
(@)ADDL(54)
ADDL(54)
Au
Ad
R
Adds
two 8-digit values (2 words each) and
the
content of CY
, and outputs the result to
the specified result words. All words for
any
one operand must be in
the same data
area.
Au
+ 1
+ Ad + 1
+
CY R + 1
CY
Au
Ad
R
Au/Ad:
IR
SR
HR
AR
LR
TC
DM
R:
IR
HR
AR
LR
DM
DOUBLE BCD
SUBTRACT
(@)SUBL(55)
SUBL(55)
Mi
Su
R
Subtracts
both the 8-digit BCD subtrahend
and
the content of CY from an 8-digit BCD
minuend,
and outputs the result to the spe
-
cified result words. All words for any one
operand must be in the same data area.
Mi
+ 1 Mi
– Su + 1
Su
–
CY R + 1 R
CY
Mi/Su:
IR
SR
HR
AR
LR
TC
DM
R:
IR
HR
AR
LR
DM
DOUBLE BCD
MULTIPLY
(@)MULL(56)
MULL(56)
Md
Mr
R
Multiplies
the 8-digit BCD multiplicand and
8-digit BCD multiplier, and outputs the re-
sult
to the specified result words. All words
for any one operand must be in the same
data area.
Md
+ 1 Md
Mr + 1 Md
R + 3 R + 2 R + 1 R
X
Md/Mr:
IR
SR
HR
AR
LR
TC
DM
R:
IR
HR
AR
LR
DM
