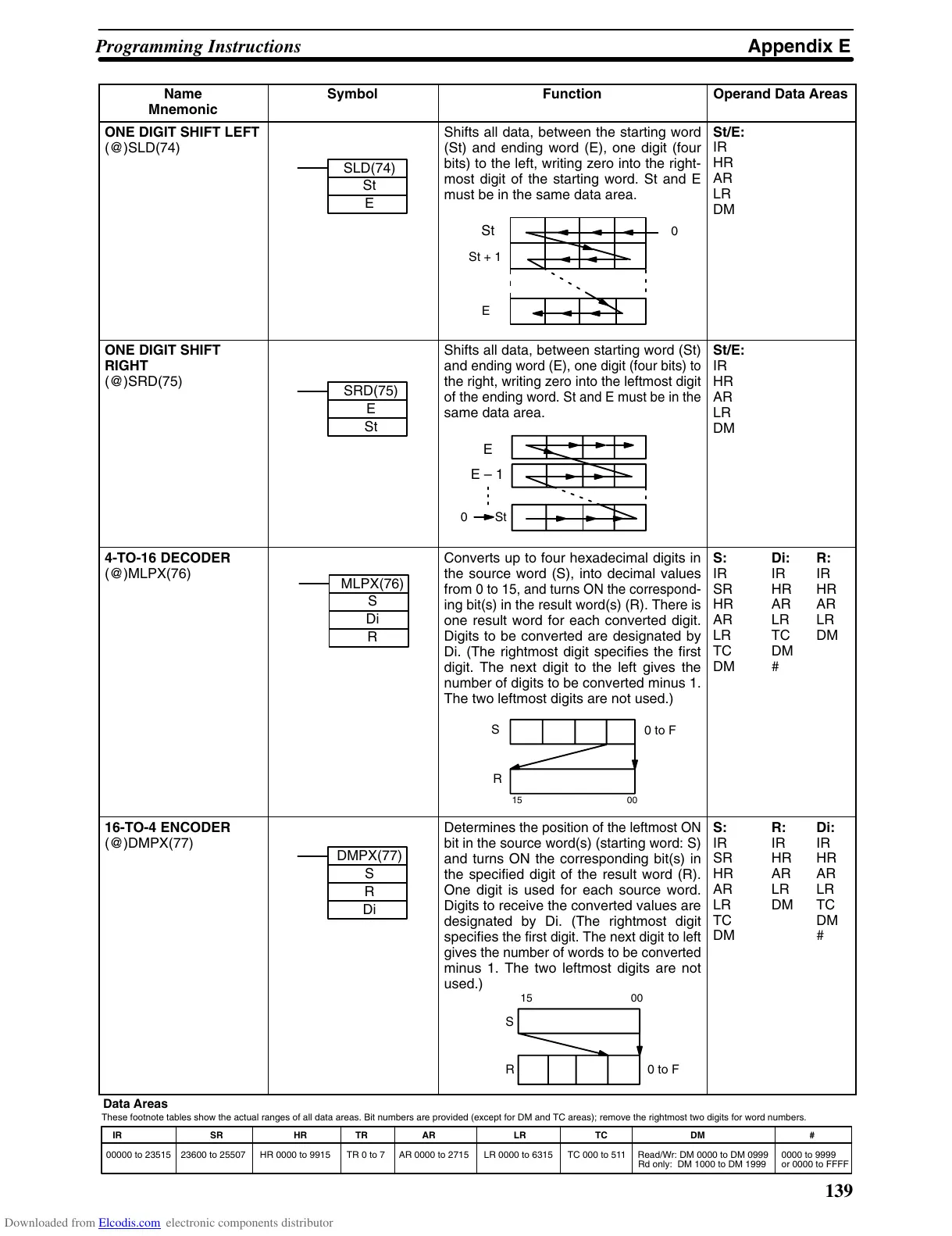

Appendix EProgramming Instructions
139
IR SR HR TR AR LR TC DM #
00000 to 23515 23600 to 25507 HR 0000 to 9915 TR 0 to 7 AR 0000 to 2715 LR 0000 to 6315 TC 000 to 511 Read/Wr: DM 0000 to DM 0999
Rd only: DM 1000 to DM 1999
0000 to 9999
or 0000 to FFFF
These footnote tables show the actual ranges of all data areas. Bit numbers are provided (except for DM and TC areas); remove the rightmost two digits for word numbers.
Data
Areas
Name
Mnemonic
Operand Data AreasFunctionSymbol
ONE DIGIT SHIFT LEFT
(@)SLD(74)
SLD(74)
St
E
Shifts all data, between the starting word
(St) and ending word (E), one digit (four
bits) to the left, writing zero into the right-
most digit of the starting word. St and E
must be in the same data area.
E
St
St
+ 1
0
St/E:
IR
HR
AR
LR
DM
ONE DIGIT SHIFT
RIGHT
(@)SRD(75)
SRD(75)
E
St
0
St
Shifts all data, between starting word (St)
and
ending word (E), one digit (four bits)
to
the
right, writing zero into the leftmost digit
of
the ending word.
St and E must be in the
same
data area.
E
E – 1
St/E:
IR
HR
AR
LR
DM
4-TO-16 DECODER
(@)MLPX(76)
MLPX(76)
S
Di
R
Converts up to four hexadecimal digits in
the source word (S), into decimal values
from
0 to 15, and turns ON the correspond
-
ing
bit(s) in the result word(s) (R). There
is
one result word for each converted digit.
Digits to be converted are designated by
Di. (The rightmost digit specifies the first
digit. The next digit to the left gives the
number of digits to be converted minus 1.
The two leftmost digits are not used.)
S
0
to F
R
0015
S:
IR
SR
HR
AR
LR
TC
DM
Di:
IR
HR
AR
LR
TC
DM
#
R:
IR
HR
AR
LR
DM
16-TO-4 ENCODER
(@)DMPX(77)
DMPX(77)
S
R
Di
Determines
the position of the leftmost
ON
bit
in the
source word(s) (starting word: S)
and turns ON the corresponding bit(s) in
the specified digit of the result word (R).
One digit is used for each source word.
Digits to receive the converted values are
designated by Di. (The rightmost digit
specifies
the first digit. The next digit to left
gives
the number of words to be converted
minus 1. The two leftmost digits are not
used.)
S
15 00
0
to F
R
S:
IR
SR
HR
AR
LR
TC
DM
R:
IR
HR
AR
LR
DM
Di:
IR
HR
AR
LR
TC
DM
#
