Omron SYSMAC C200H CPU01-E User Manual

1-1SectionWhat is a Control System?
3

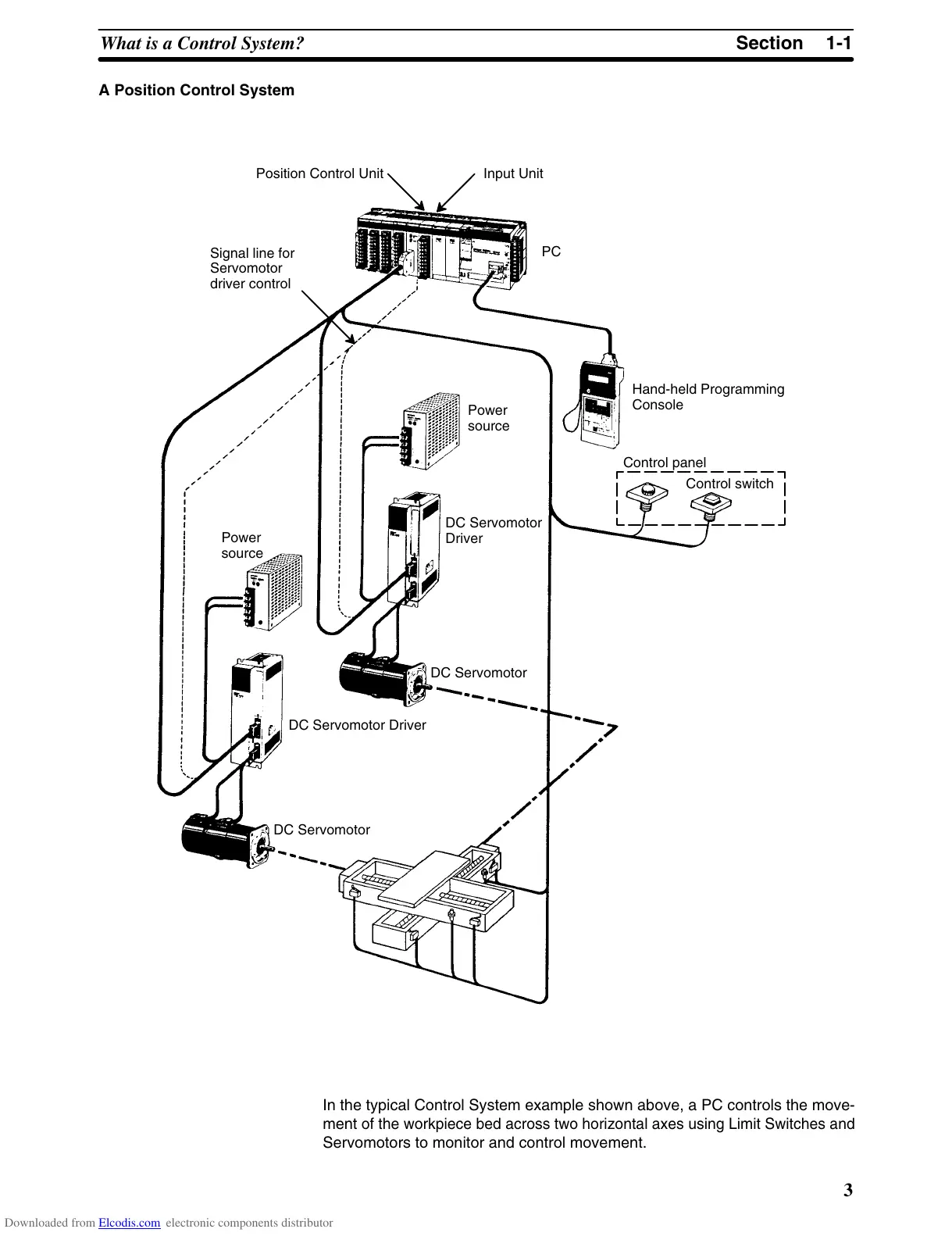

A Position Control System
Position Control Unit
Signal line for
Servomotor
driver control
Hand-held Programming
Console
Control switch
Control panel
Power
source
Power
source
DC Servomotor Driver
DC Servomotor
DC Servomotor
DC Servomotor
Driver
PC
Input Unit
In the typical Control System example shown above, a PC controls the move-
ment of the workpiece bed across two horizontal axes using Limit Switches and
Servomotors to monitor and control movement.
Downloaded from Elcodis.com electronic components distributor
All manuals and user guides at all-guides.com

Omron SYSMAC C200H CPU01-E Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Model	C200H-CPU01-E
Humidity	10% to 90% RH (no condensation)
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
Shock Resistance	10 G
