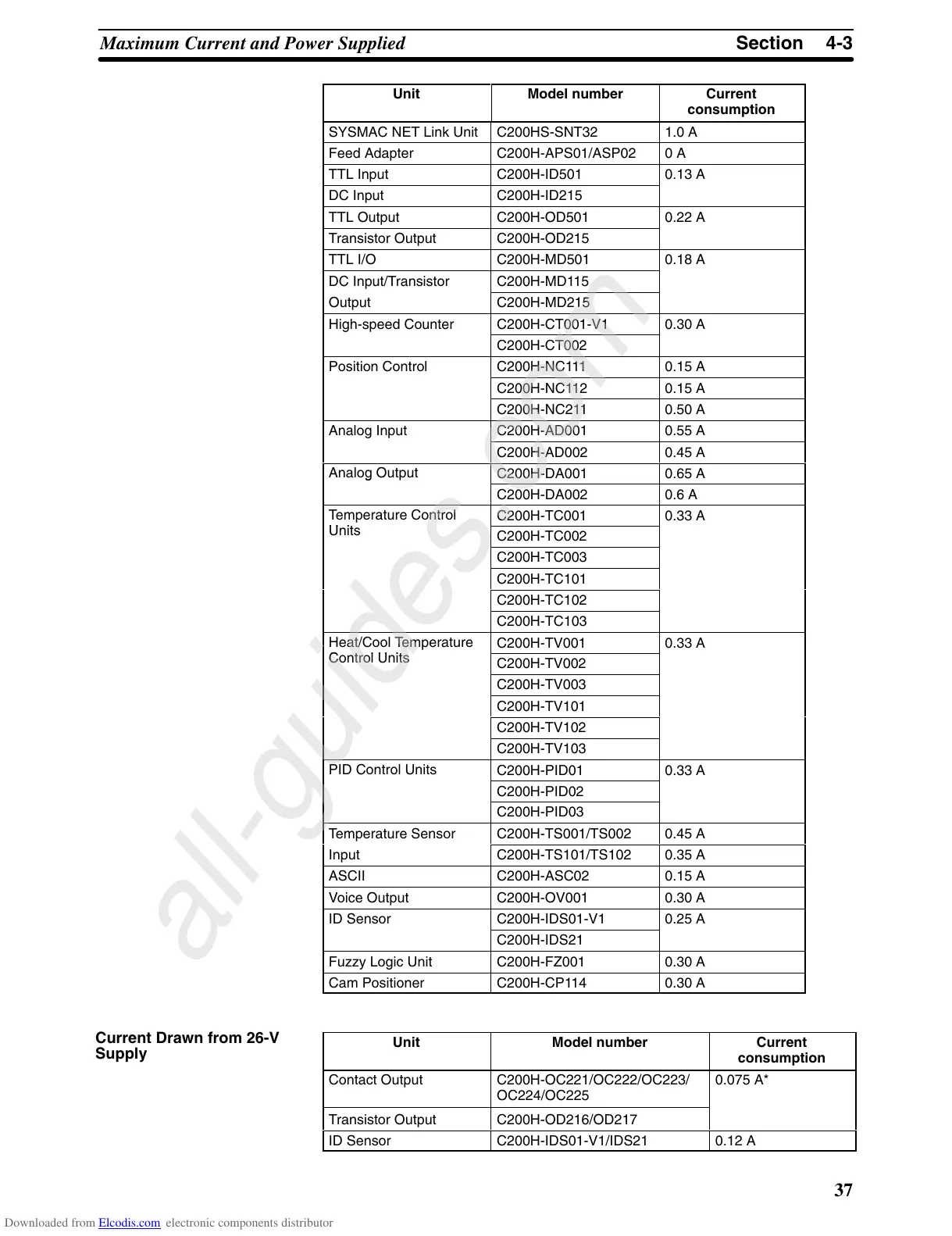

Omron SYSMAC C200H CPU01-E User Manual

4-3SectionMaximum Current and Power Supplied
37
Unit Current
consumption
Model number
SYSMAC NET Link Unit C200HS-SNT32 1.0 A
Feed Adapter C200H-APS01/ASP02 0 A
TTL Input C200H-ID501 0.13 A
DC Input C200H-ID215
TTL Output C200H-OD501 0.22 A
Transistor Output C200H-OD215
TTL I/O C200H-MD501 0.18 A
DC Input/Transistor C200H-MD115
Output C200H-MD215
High-speed Counter C200H-CT001-V1 0.30 A
C200H-CT002
Position Control C200H-NC111 0.15 A
C200H-NC112 0.15 A
C200H-NC211 0.50 A
Analog Input C200H-AD001 0.55 A
C200H-AD002 0.45 A
Analog Output
C200H-DA001 0.65 A
g
C200H-DA002 0.6 A
Temperature Control
Ui
C200H-TC001 0.33 A
Units
C200H-TC002
C200H-TC003
C200H-TC101
C200H-TC102
C200H-TC103
Heat/Cool Temperature
ClUi
C200H-TV001 0.33 A
Control Units
C200H-TV002
C200H-TV003
C200H-TV101
C200H-TV102
C200H-TV103
PID Control Units
C200H-PID01 0.33 A
C200H-PID02
C200H-PID03
Temperature Sensor C200H-TS001/TS002 0.45 A
Input C200H-TS101/TS102 0.35 A
ASCII C200H-ASC02 0.15 A
Voice Output C200H-OV001 0.30 A
ID Sensor C200H-IDS01-V1 0.25 A
C200H-IDS21
Fuzzy Logic Unit C200H-FZ001 0.30 A
Cam Positioner C200H-CP114 0.30 A
Unit Model number Current
consumption
Contact Output C200H-OC221/OC222/OC223/
OC224/OC225
0.075 A*
Transistor Output C200H-OD216/OD217
ID Sensor C200H-IDS01-V1/IDS21 0.12 A
Current Drawn from 26-V
Supply
