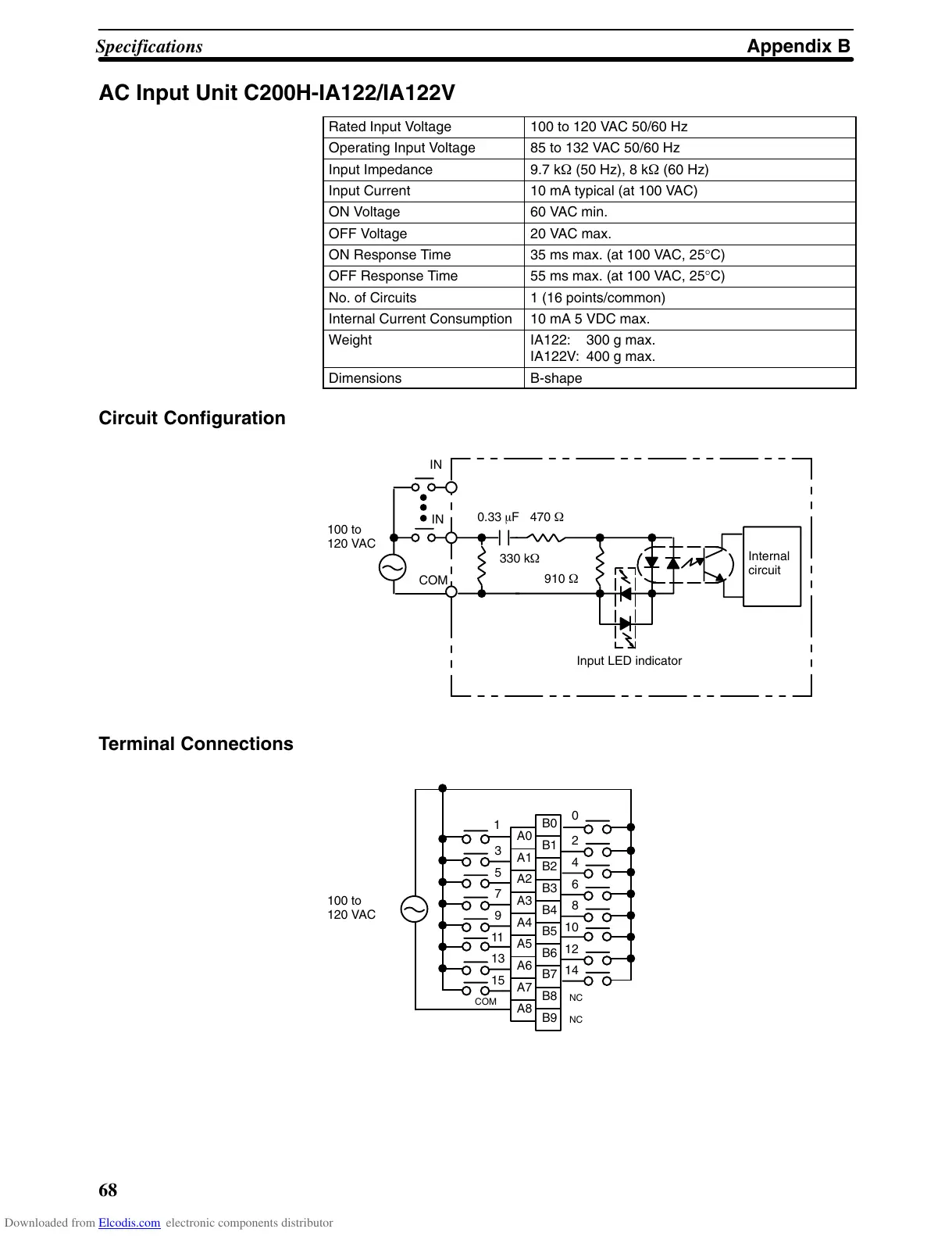

AC Input Unit C200H-IA122/IA122V
Rated Input Voltage 100 to 120 VAC 50/60 Hz
Operating Input Voltage 85 to 132 VAC 50/60 Hz
Input Impedance 9.7 kW (50 Hz), 8 kW (60 Hz)
Input Current 10 mA typical (at 100 VAC)
ON Voltage 60 VAC min.
OFF Voltage 20 VAC max.
ON Response Time 35 ms max. (at 100 VAC, 25°C)
OFF Response Time 55 ms max. (at 100 VAC, 25°C)
No. of Circuits 1 (16 points/common)
Internal Current Consumption 10 mA 5 VDC max.
Weight IA122: 300 g max.
IA122V: 400 g max.
Dimensions B-shape
Circuit Configuration
IN
IN
COM
Internal
circuit
100 to
120 V AC
470 W
Input LED indicator
0.33 mF
330 k W
910 W
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
1
3
5
7
9
11
13
15
NC
0
2
4
6
8
10
12
14
NC
100 to
120 V AC
