Omron SYSMAC C200H CPU01-E User Manual

Appendix BSpecifications
70

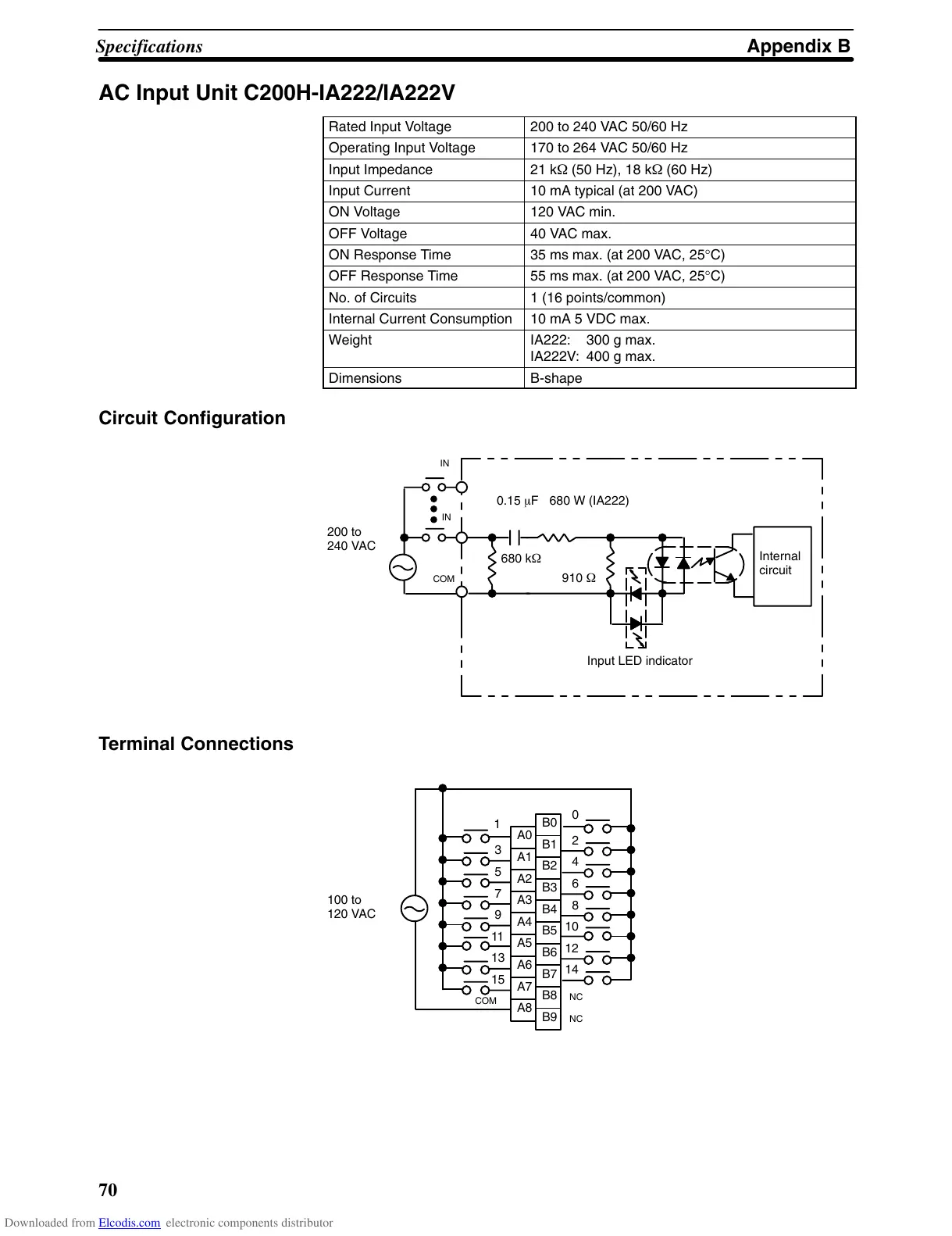

AC Input Unit C200H-IA222/IA222V
Rated Input Voltage 200 to 240 VAC 50/60 Hz
Operating Input Voltage 170 to 264 VAC 50/60 Hz
Input Impedance 21 kW (50 Hz), 18 kW (60 Hz)
Input Current 10 mA typical (at 200 VAC)
ON Voltage 120 VAC min.
OFF Voltage 40 VAC max.
ON Response Time 35 ms max. (at 200 VAC, 25°C)
OFF Response Time 55 ms max. (at 200 VAC, 25°C)
No. of Circuits 1 (16 points/common)
Internal Current Consumption 10 mA 5 VDC max.
Weight IA222: 300 g max.
IA222V: 400 g max.
Dimensions B-shape
Circuit Configuration
IN
IN
COM
Internal
circuit
200 to
240 V AC
Input LED indicator
680 W (IA222)
0.15 mF
680 k W
910 W
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
1
3
5
7
9
11
13
15
NC
0
2
4
6
8
10
12
14
NC
100 to
120 V AC
