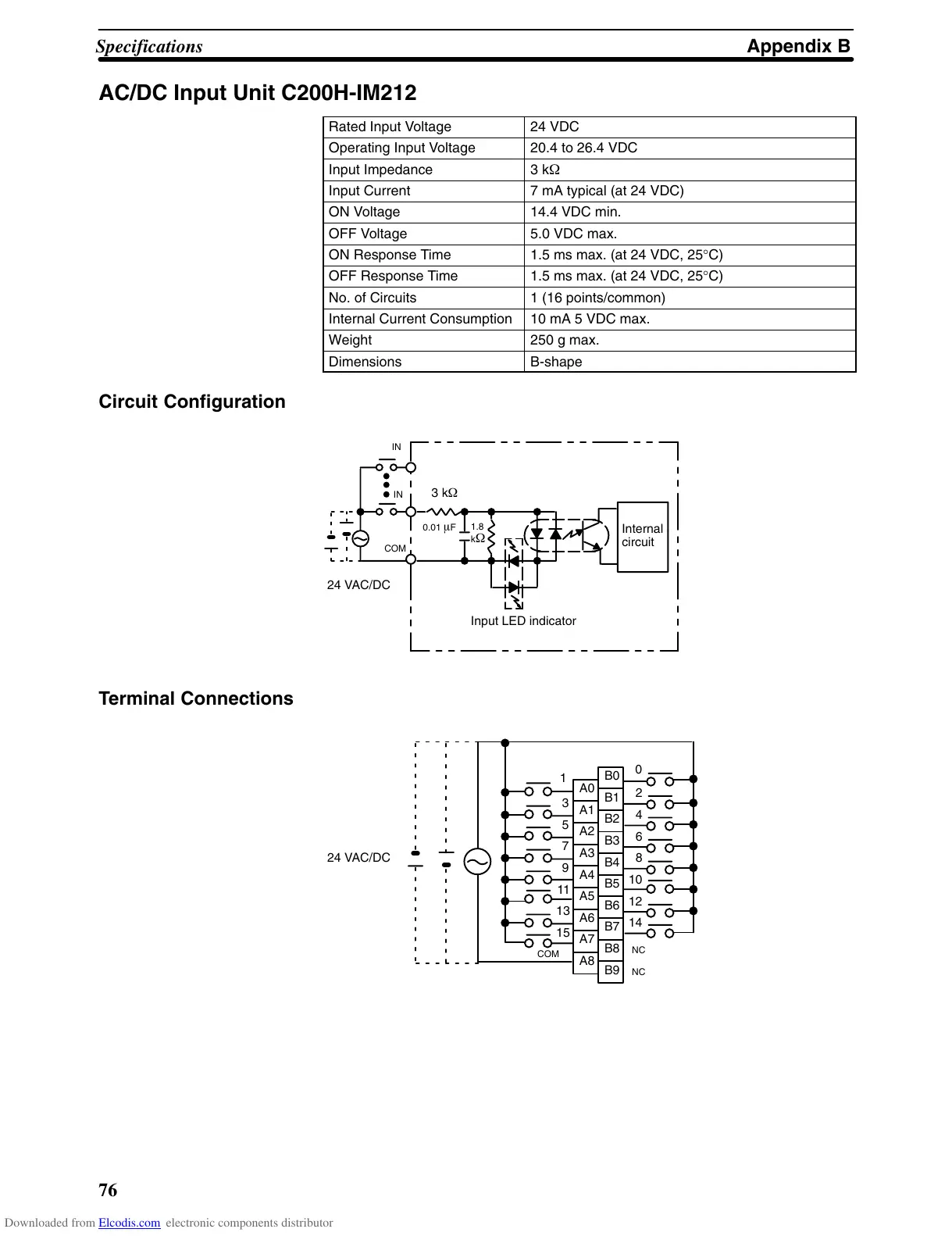

Appendix BSpecifications
76
AC/DC Input Unit C200H-IM212
Rated Input Voltage 24 VDC
Operating Input Voltage 20.4 to 26.4 VDC
Input Impedance 3 kW
Input Current 7 mA typical (at 24 VDC)
ON Voltage 14.4 VDC min.
OFF Voltage 5.0 VDC max.
ON Response Time 1.5 ms max. (at 24 VDC, 25°C)
OFF Response Time 1.5 ms max. (at 24 VDC, 25°C)
No. of Circuits 1 (16 points/common)
Internal Current Consumption 10 mA 5 VDC max.
Weight 250 g max.
Dimensions B-shape
Circuit Configuration
IN
IN
COM
Internal
circuit
24
V
AC/DC
3 kW
0.01 mF
Input
LED indicator
1.8
k
W
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
1
3
5
7
9
11
13
15
NC
0
2
4
6
8
10
12
14
NC
24
V
AC/DC
