Appendix BSpecifications
84

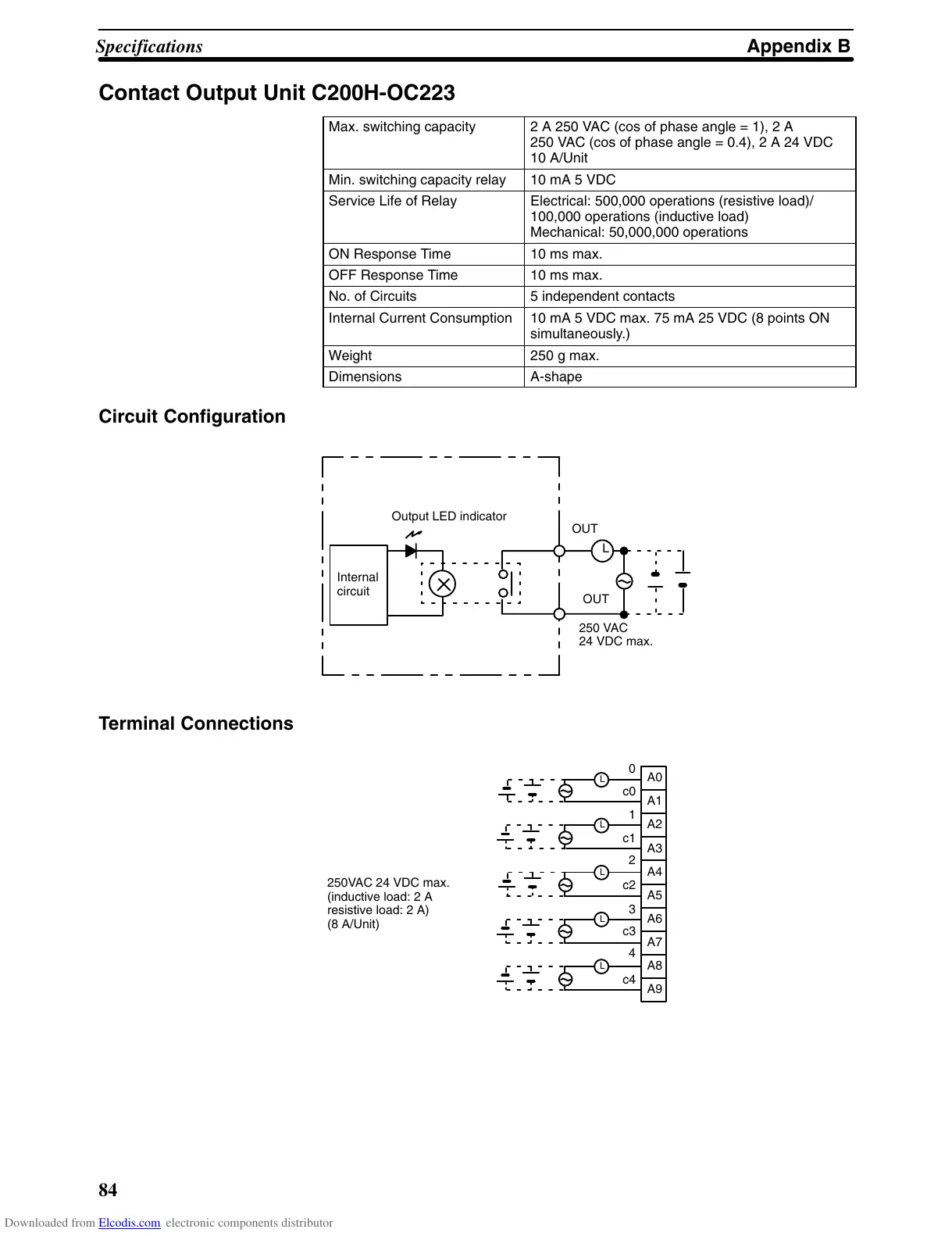

Contact Output Unit C200H-OC223
Max. switching capacity 2 A 250 VAC (cos of phase angle = 1), 2 A
250 VAC (cos of phase angle = 0.4), 2 A 24 VDC
10 A/Unit
Min. switching capacity relay 10 mA 5 VDC
Service Life of Relay Electrical: 500,000 operations (resistive load)/
100,000 operations (inductive load)
Mechanical: 50,000,000 operations
ON Response Time 10 ms max.
OFF Response Time 10 ms max.
No. of Circuits 5 independent contacts
Internal Current Consumption 10 mA 5 VDC max. 75 mA 25 VDC (8 points ON
simultaneously.)
Weight 250 g max.
Dimensions A-shape
Circuit Configuration
Internal
circuit
L
Output
LED indicator
250 V
AC
24 VDC max.
OUT
OUT
Terminal Connections
250VAC
24 VDC max.
(inductive load: 2 A
resistive load: 2 A)
(8 A/Unit)
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
c0
1
c1
2
c2
3
c3
4
c4
L
L
L
L
L
