Appendix BSpecifications
119

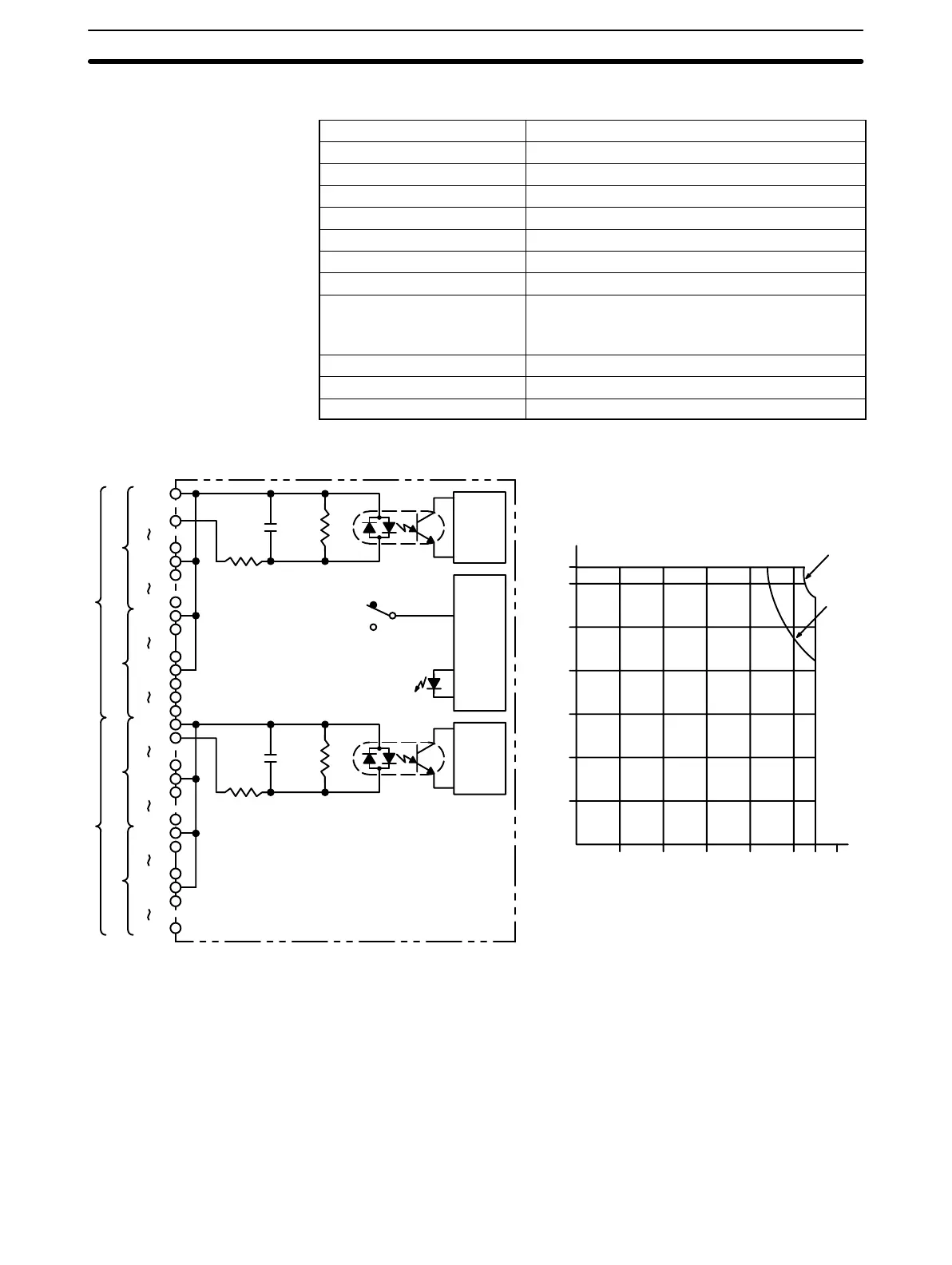

DC Input Unit C200H-ID217 (64 Points)
Rated Input Voltage 24 VDC
Operating Input Voltage 20.4 to 26.4 VDC
Input Impedance 5.6 kΩ
Input Current 4.1 mA (at 24 VDC)
ON Voltage 14.4 VDC min.
OFF Voltage 5.0 VDC max.
ON Response Time 1.0 ms max.
OFF Response Time 1.0 ms max.
No. of Circuits 2 (32 points/common)
All 64 points cannot be turned ON simultaneously
at high temperatures. Refer to the graph below.
Internal Current Consumption 120 mA 5 VDC max.
Weight 250 g max.
Dimensions D-shape
Circuit Configuration and Simultaneously Usable Points
Input indicator
Ambient Temperature (°C)
Input Voltage:
24.0 VDC
Input Voltage:
26.4 VDC
Simultaneously Usable Points
Indicator
switch
circuit
COM
IN00
IN07
COM
IN08
IN15
A
1000 pF
680 Ω
5.6 kΩ
Internal
circuit
COM
IN00
IN07
COM
IN08
IN15
COM
IN00
IN07
COM
IN08
IN15
Internal
circuit
1000 pF
680 Ω
5.6 kΩ
COM
IN00
IN07
COM
IN08
IN15
CN1
CN1
CN2
SW
B
A
B
CN2
0 10203040505560
0
10
20
30
40
50
60
64
