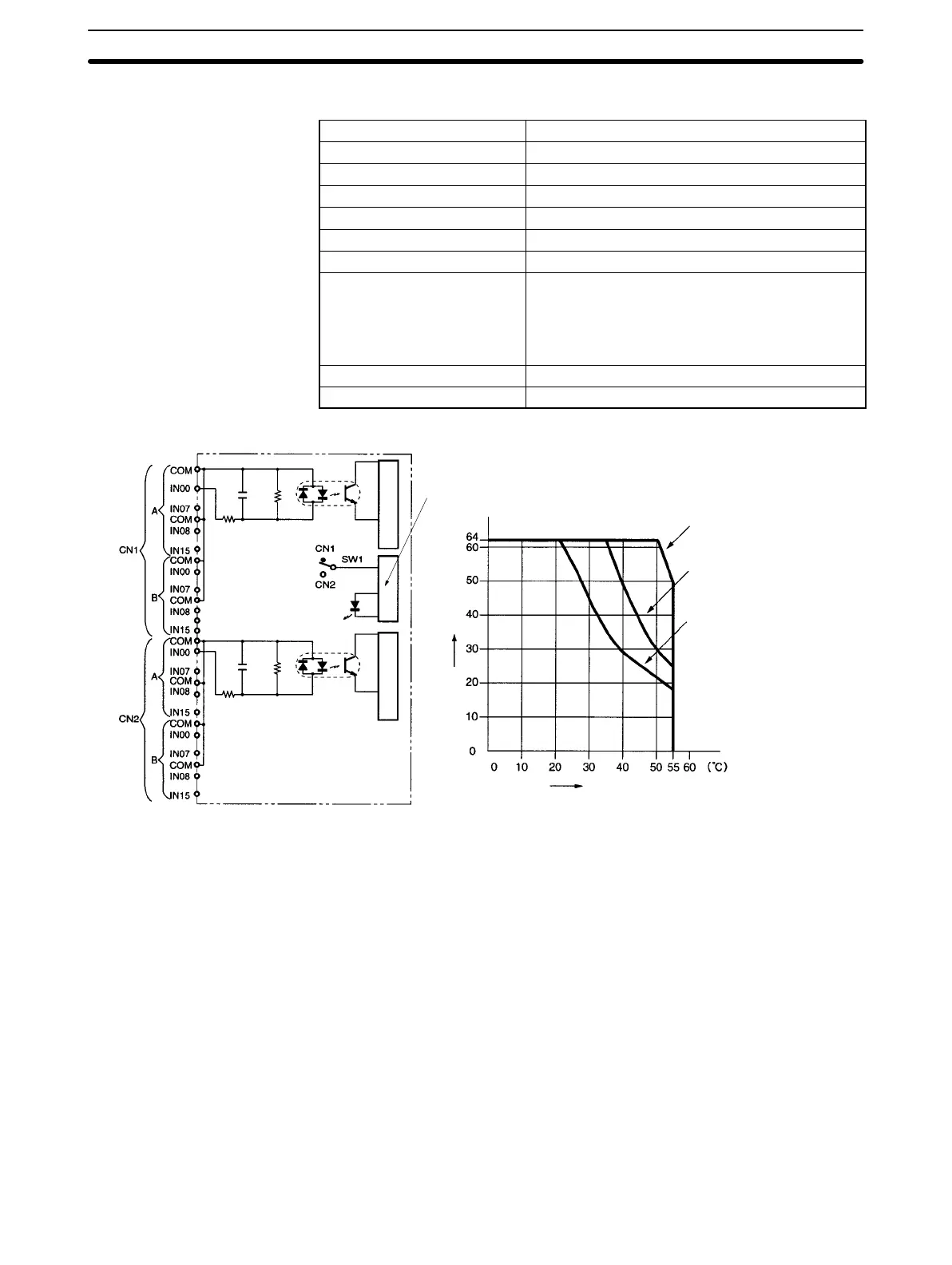

C200H-ID219 DC Input Unit (64 Points)
Rated Input Voltage 24 VDC
+10%
/
–15%
Input Impedance 3.9 kΩ
Input Current 6 mA (at 24 VDC)
ON Voltage/ON Current 15.4 VDC min./3.5 mA min.
OFF Voltage/OFF Current 5.0 VDC max./1 mA max.
ON Response Time 1.0 ms max.
OFF Response Time 1.0 ms max.
No. of Circuits 64 (32 points/common)
Note The number of points that can be ON simulta-
neously is limited according to the ambient
temperature. Refer to the following diagram
for details.
Internal Current Consumption 120 mA 5 VDC max.
Weight 250 g max.
Circuit Configuration
to
to
to
to
to
to
to
to
0.01 µF
470 Ω
3.9 kΩ
0.01 µF
470 Ω
3.9 kΩ
Input LED indicator
Internal circuitInternal circuit
Input LED indicator
Ambient Temperature for Simultaneously ON Points
Simultaneously ON points
Input voltage: 20.4 VDC
Input voltage: 24.0 VDC
Input voltage: 26.4 VDC
Ambient temperature
