Appendix BSpecifications
123

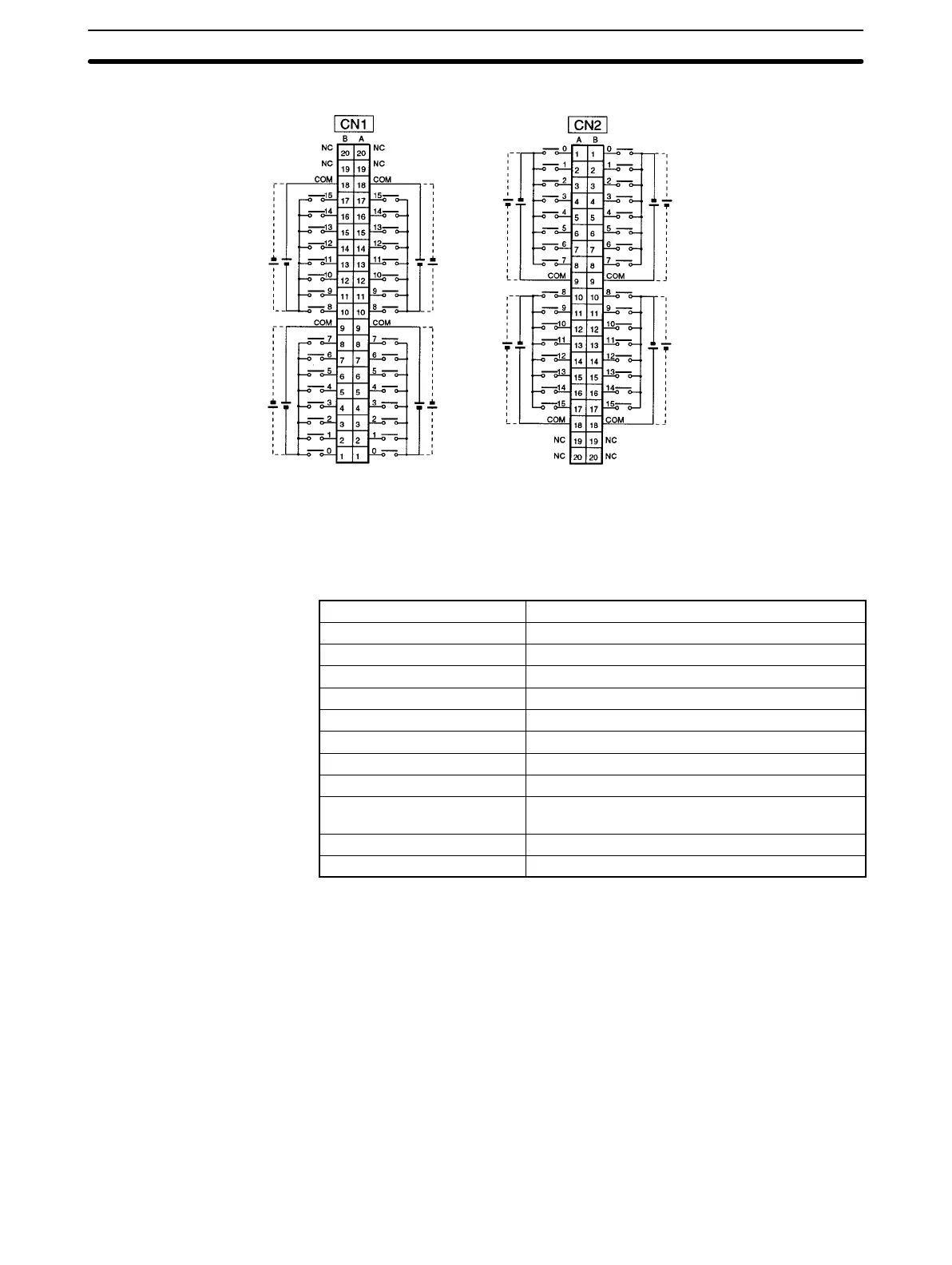

Terminal Connections
(m + 1) words (m + 1) words (m + 2) words (m + 3) words
24 VDC
24 VDC
24 VDC
24 VDC
24 VDC
24 VDC
24 VDC
24 VDC
Note 1. The polarity of the input power supply can be either positive or negative. The polarity of all commons for
CN1 and CN2, however, must be the same.
2. COM terminals for CN1 and CN2 must all be wired even though they are connected internally.
Transistor Output Unit C200H-OD218 (32 Points)
Max. Switching Capacity 16 mA 4.5 VDC to 100 mA 26.4 VDC (see below)
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.4 ms max.
No. of Circuits 1 (32 points/common)
Internal Current Consumption 180 mA 5 VDC max.
Fuse Rating 3.5 A (The fuse is not user-replacable.)
Power for External Supply 110 mA 5 to 24 VDC±10% min.
(3.4 mA × number of ON pts)
Weight 180 g max.
Dimensions C-shape
