Appendix BSpecifications
128
Transistor Output Unit C200H-OD21B (32 Points)
(Load Short-circuit Protection Provided)
Max. Switching Current 0.5 A 24 VDC
+10%
/
–15%
(5 A/Unit)
Min. Switching Current None
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.3 ms max.
No. of Circuits 32 (32 points/common)
Internal Current Consumption 180 mA 5 VDC max.
Fuses One 7 A fuse (1 fuse/common)
The fuses are not user-replacable.
Power for External Supply 160 mA 24 VDC
+10%
/
–15%
min.
(5 mA × number of ON pts)
Weight 180 g max.
Alarm Indicator Lamp F lights (unless fuse is broken).
Load Short-circuit Prevention
(see note 1)
Detection current: 0.7 to 2.5 A
Automatic restart after error clearance.
Dimensions C-shape
Note When the short-circuit/overload protection is activated for a contact point, the output for that point is turned
OFF. At the same time, lamp “F” lights up, and the corresponding Flag in the Basic I/O Unit Information Area
(AR0205 to AR0214) will turn ON. After the cause of the error has been removed, the alarm will be cleared
automatically when the internal temperature of the element drops.

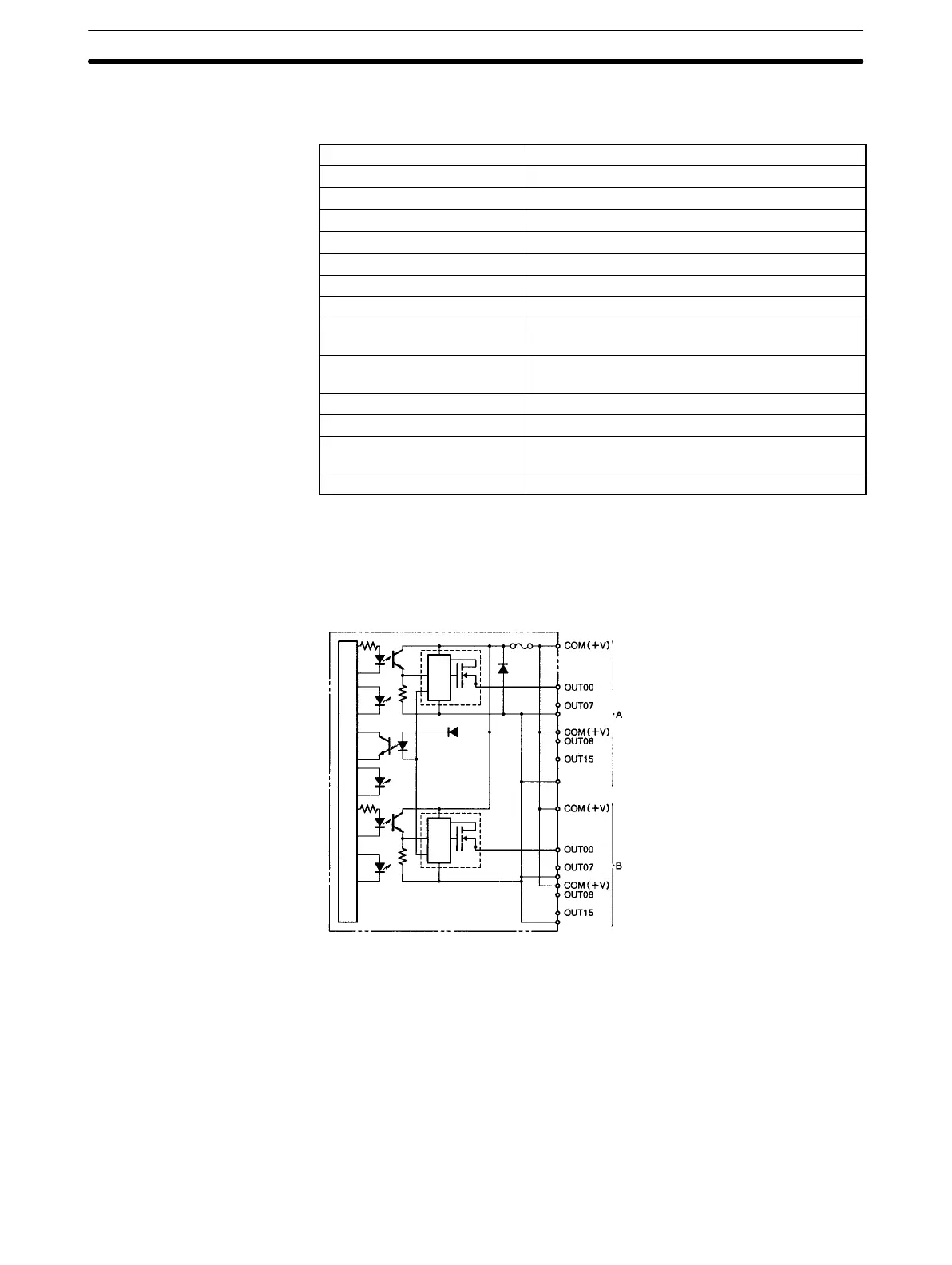

Circuit Configuration
Output LED
indicator
Internal circuit
Alarm
LED
indi-
cator
Output LED
indicator
to
to
to
to
0 V
0 V
0 V
0 V
Short-circuit
protection
circuit
Short-circuit
protection
circuit
