Omron SYSMAC C200H Installation Guide

51

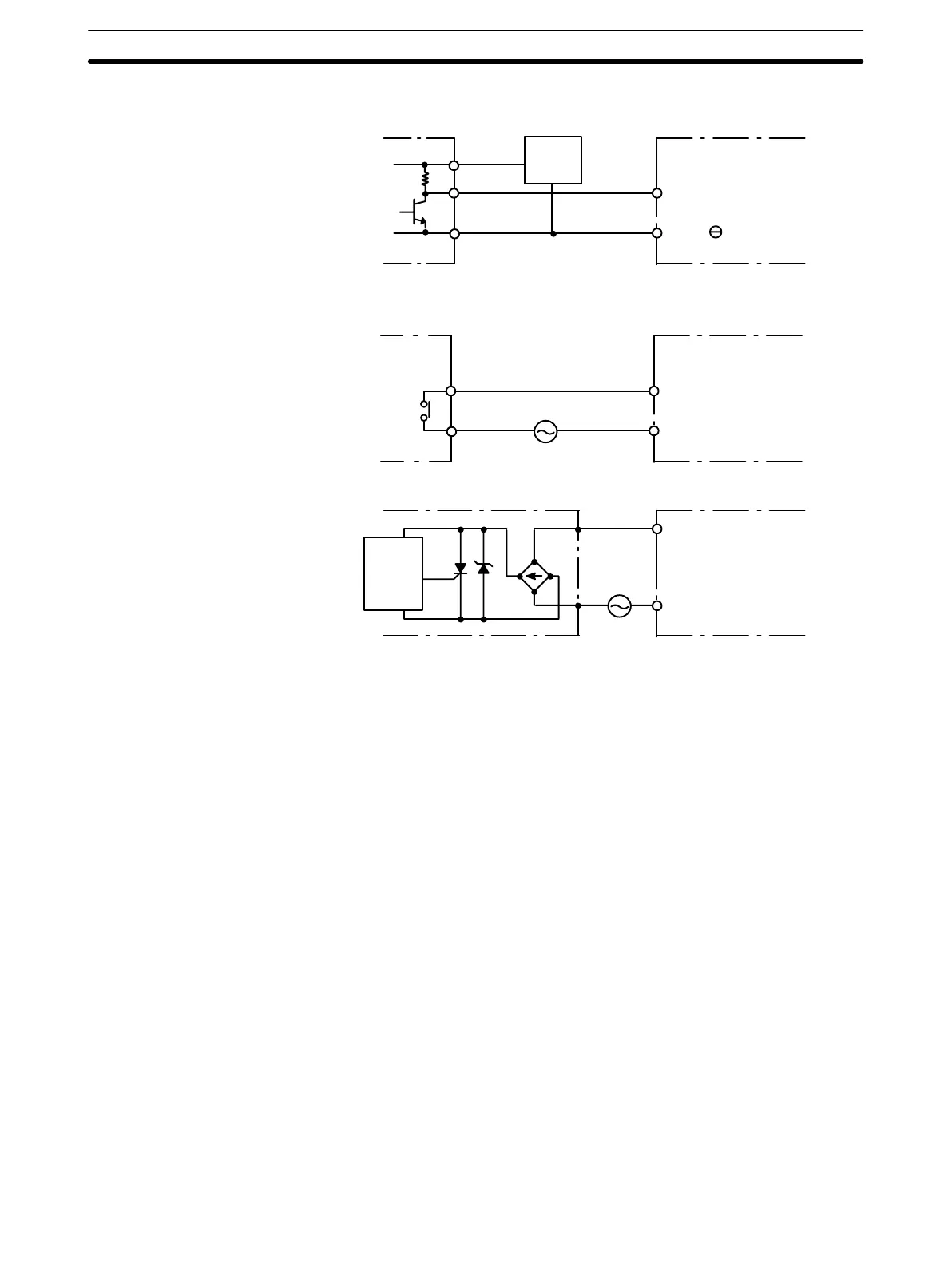

The circuit below should NOT be used for I/O devices having a voltage output.
0 V
Output
+
COM
Voltage output
IN DC input
Sensor
Power
Supply
AC Input Units
COM
Contact output
IN AC input
COM
AC Switching
IN AC input
Prox-
imity
switch
main
circuit
Note When using a reed switch as an input contact for an AC Input Unit, the allowable
current of the switch must be 1 A or greater. The contacts will be fused due to
inrush current if reed switches with a lower current capacity are used.
Output Units A fuse placed in the output circuit will protect the output element, circuit board,
etc., in the event of a short circuit in the output circuit. Although some Units have
a built-in fuse, it is recommended that you connect an external fuse to each Out-
put Unit for extra safety and ease of maintenance.
I/O Connections Section 4-4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Omron SYSMAC C200H Specifications

General

PLC Type	Modular
Operating Temperature	0 to 55°C
Programming Language	Ladder logic
Data Memory	512 words
Communication Ports	RS-232C
Humidity	10 to 90% RH (non-condensing)
Supply Voltage	100 to 120 VAC, 200 to 240 VAC, 24 VDC (depending on the power supply unit)
