Omron Sysmac CJ Series User Manual

5. Applicable Devices and Support Software
5.2. Device Configuration

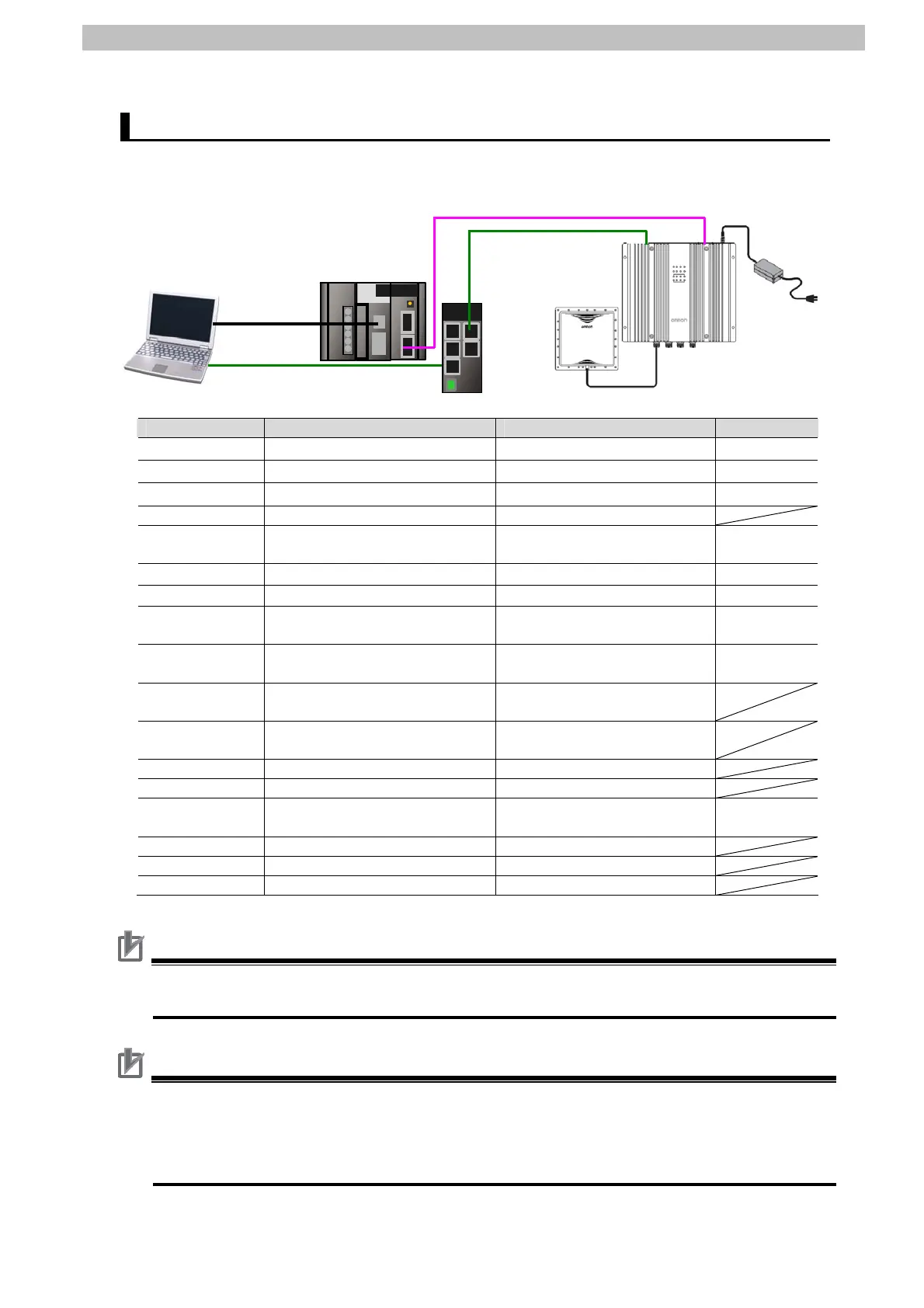

The hardware components to reproduce the connection procedure of this document are as
follows.
7
Manufacturer Name Model Version
OMRON Serial Communications Unit CJ1W-SCU42 Ver.2.0
OMRON Switching Hub W4S1-05C Ver.1.0
OMRON CPU Unit CJ2M-CPU12 Ver.2.0
OMRON Power Supply Unit CJ1W-PA202
OMRON CX-One CXONE-AL[][]C-V4
/AL[][]D-V4
Ver.4.xx
OMRON CX-Programmer (Included in CX-One) Ver.9.41
OMRON CX-Protocol (Included in CX-One) Ver.1.96
OMRON CX-Programmer project file
(ladder program)
OMRON_V750_PMCR232
C_EV102.cxp
Ver.1.02
OMRON
CX-Programmer project file
(protocol macro data)
OMRON_V750_PMCR_EV
100.psw
Ver.1.00
- Personal computer
(English OS:Windows XP)
-
- USB cable
(USB 2.0 type B connector)
-
- Serial cable (RS-232C) -
- LAN cable (for setting) -
OMRON RFID Reader/Writer V750-BA50C04-US Ver.102-
102-103-0
OMRON Antenna (Circular) (4 max.) V740-HS01CA
OMRON Antenna Cable V740-A01 [][]M
OMRON AC Adapter (Included) -
Precautions for Correct Use
Prepare the latest project file and protocol macro data beforehand.
(To obtain the files, contact your OMRON representative.)
Precautions for Correct Use
Update the CX-Programmer to the version specified in this section or higher version using the
auto update function. If a version not specified in this section is used, the procedures
described in Section 6 and subsequent sections may not be applicable. In that case, use the
equivalent procedures described in the CX-Programmer Operation Manual (Cat.No. W446).
CJ2M-CPU12
CJ1W-SCU42
Personal computer
(CX-One installed,
OS: Windows XP)
USB cable
LAN cable
Switching Hub
(W4S1-05C)
Antenna
(V740-HS01CA)
RFID Reader/Writer
(V750-BA50C04-US)
Serial cable
LAN cable
Antenna Cable
(V740-A01 [][]M)
AC Adapter
(included)
