7. Connection Procedure
4

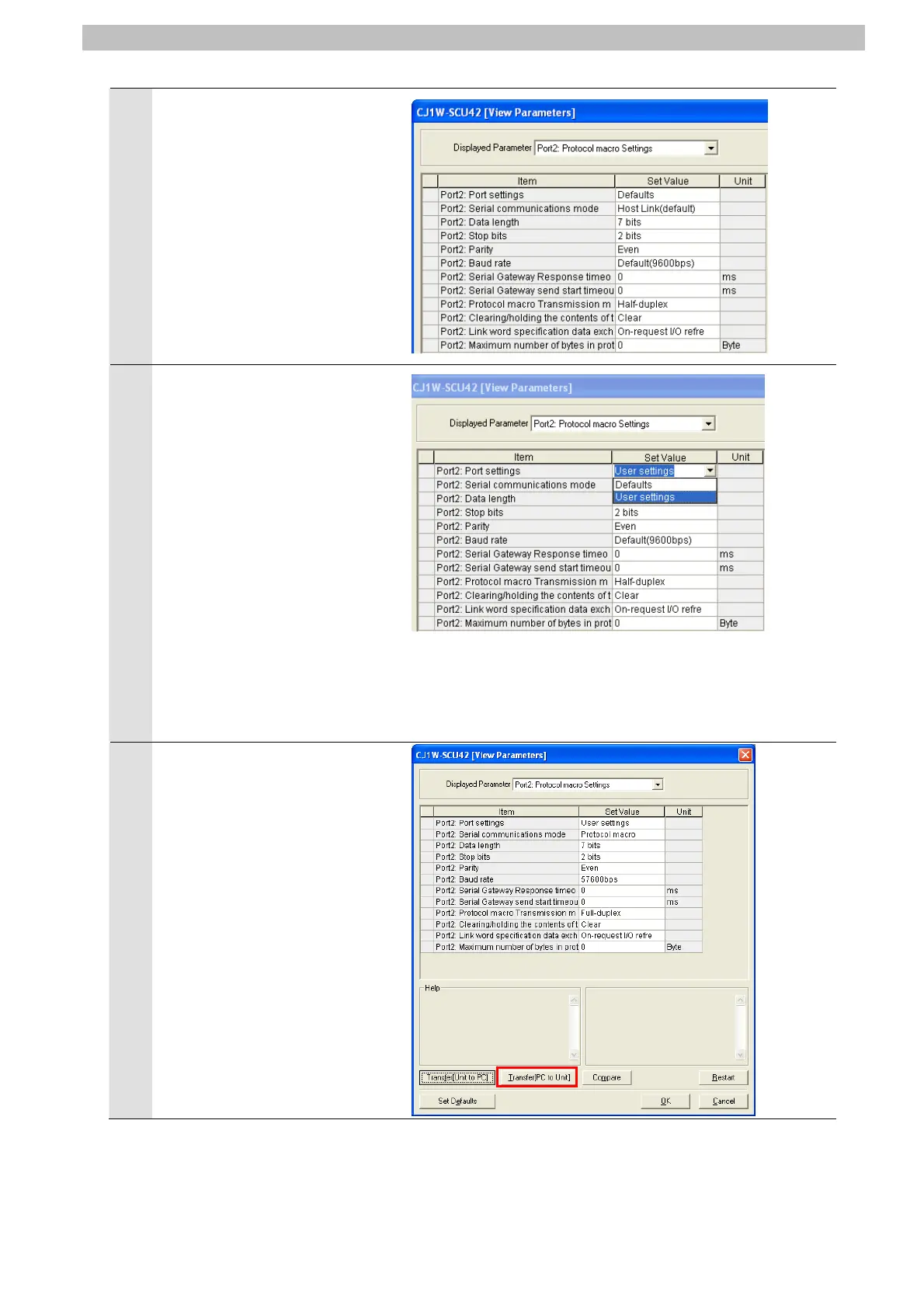

The setting items of the Port 2:
Protocol macro Settings are
listed as shown in the right
figure. (The figure shows default
values.)
5
Select User settings from Port
settings.
Set the following parameters in
the same way.
•Serial communications mode:
Protocol macro
•Data length: 7 bits
•Stop bit: 2 bits
•Parity: Even
•Baud rate: 57600 bps
•Protocol macro Transmission
method: Full-duplex
*Use the default settings for
other parameters.
6
Confirm that all parameters are
set for port 2 in step 5. Click the
Transfer [PC to Unit] Button.
