Protocol Conversion Section 6-5

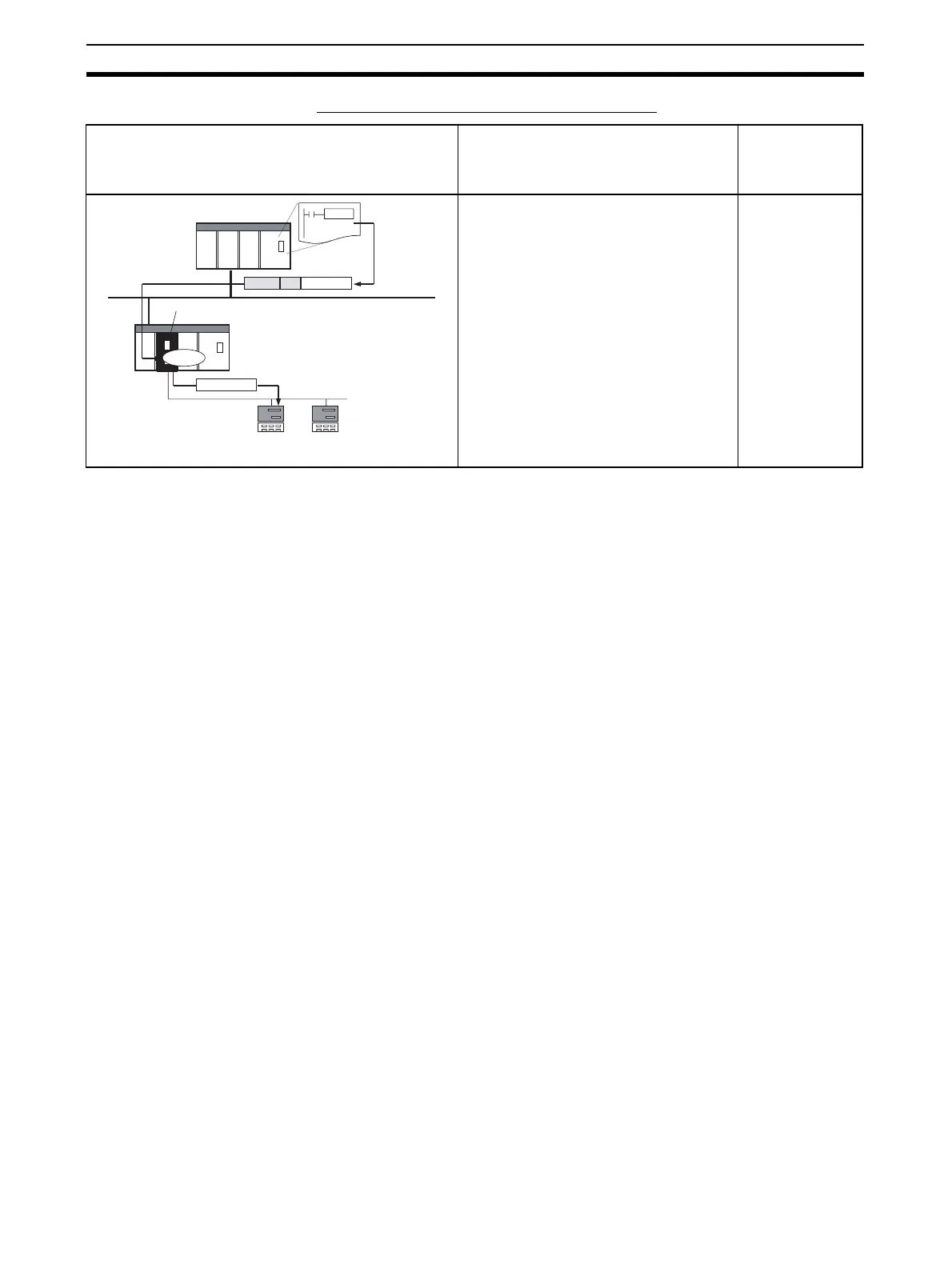

Access from CPU Unit (PLC on the Network)
FINS message-to-Serial Details Routing tables
to treat serial
communications
path as network
OMRON components connected serially
to the Serial Communications Board/Unit
using CompoWay/F can be accessed from
a CPU Unit in a PLC connected to the net-
work.
Optional
Serial Communications Unit/Board
CPU Unit
RS-485 (CompoWay/F)
FINS header
CMND(490)
FINS message
2803
CompoWay/F
command
CompoWay/F
command
Network (Ethernet, Controller
Link, DeviceNet)
Protocol
conversion
CompoWay/F-compatible
OMRON component
