Omron Sysmac NJ-series Network Connection Guide

7．EtherNet/IP Connection Procedure
31
7

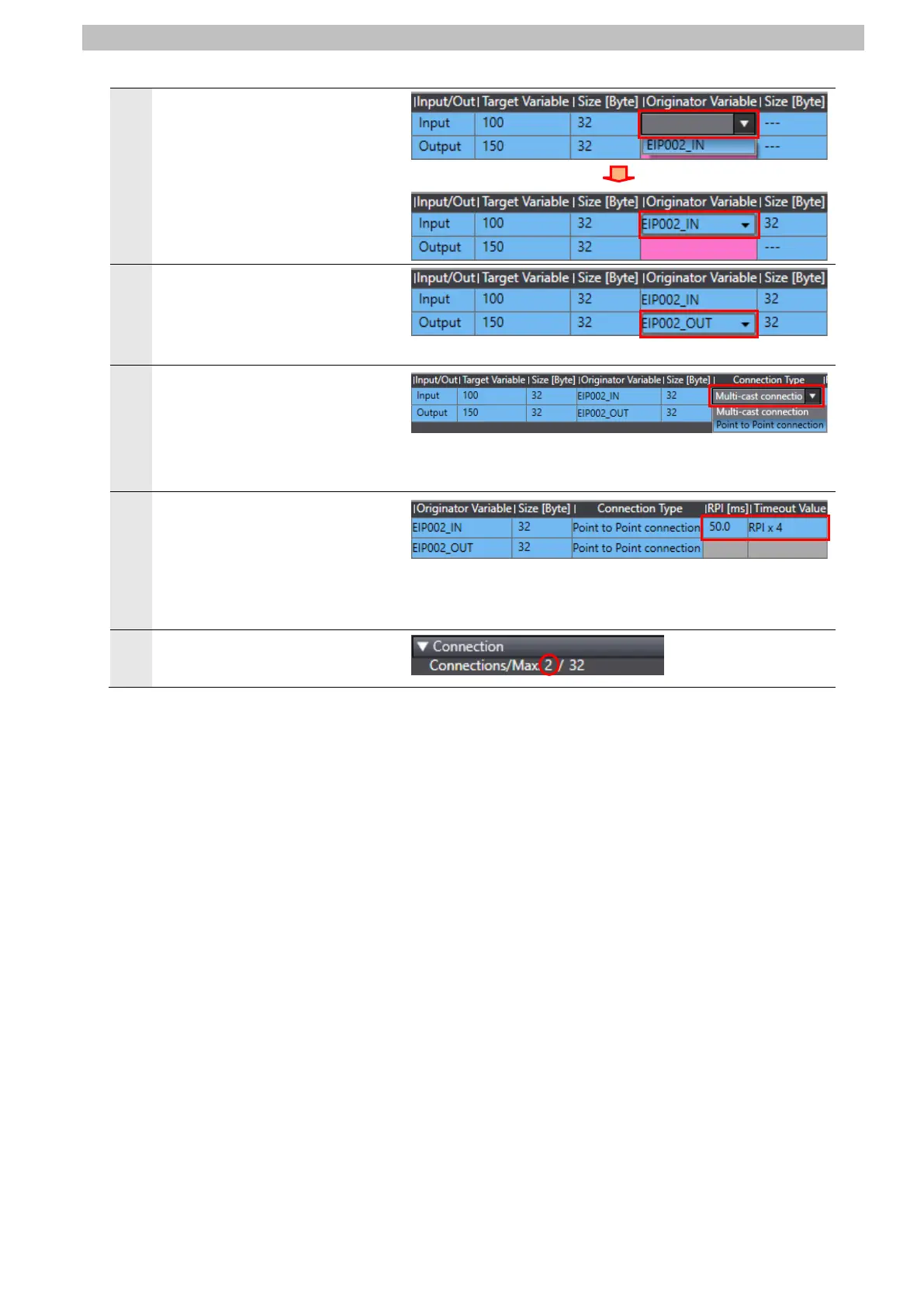

Click on the cell in the
Originator Variable Column for
Input.
A pull-down list of the previously
registered tag set names
appears. Select the tag set
name EIP002_IN.
8
Likewise, select the tag set
name EIP002_OUT in the
Originator Variable Column for
Output.
9
Select Point to Point
connection from the pull-down
list in the Connection Type
Column for both Input and
Output.
10
If needed, change the values in
both the RPI[ms] and Timeout
Value Columns.
*In this guide, the default values
are used.
11
Check that the number of
Connections is 2.
