Omron Sysmac NJ-series Network Connection Guide

7．EtherNet/IP Connection Procedure
33
7

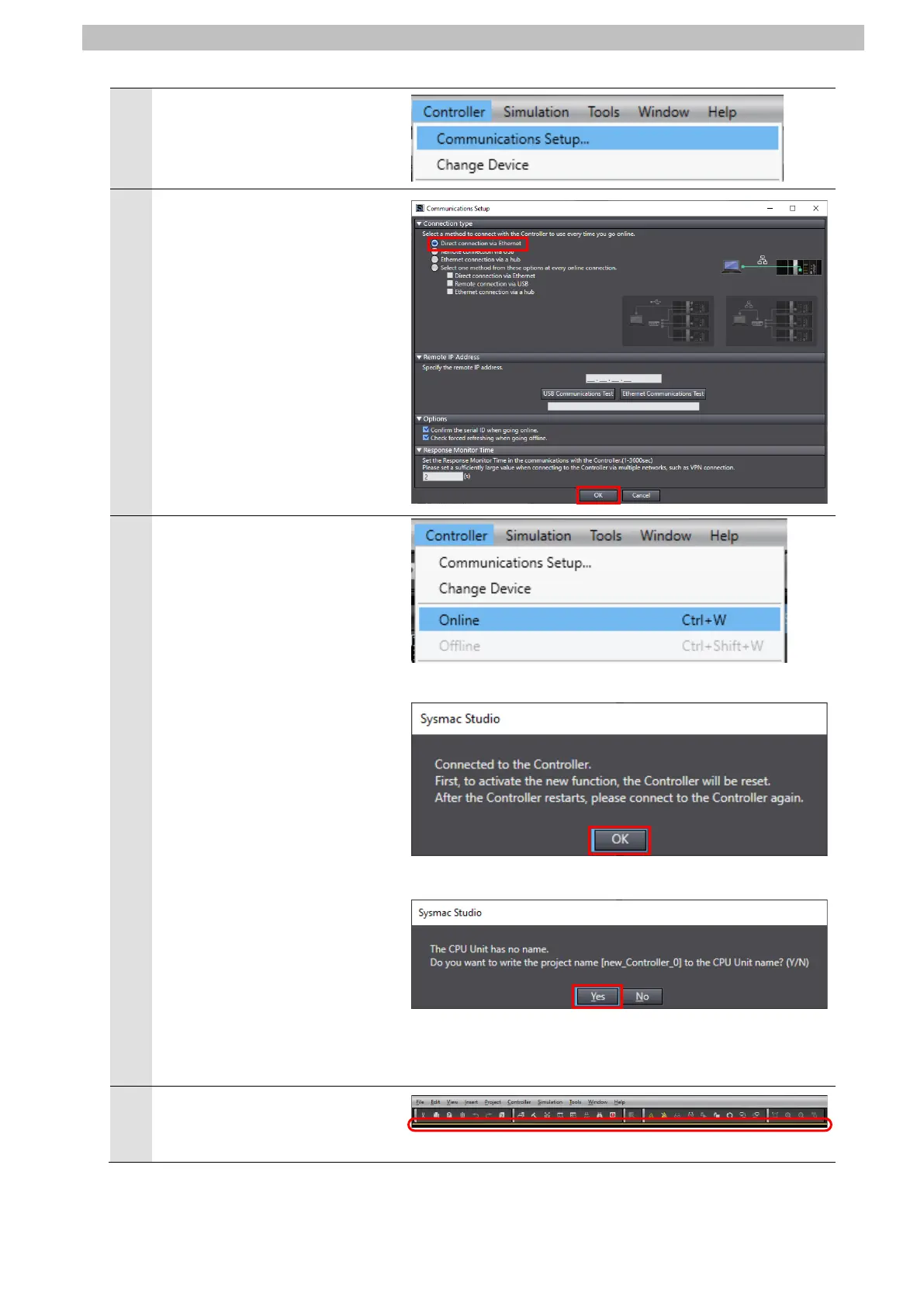

Select Communications Setup
from the Controller Menu.
8
The Communications Setup
Dialog Box appears.
Check that Direct connection via
Ethernet is selected in the
Connection type Field.
Click OK.
*The direct connection via
Ethernet is available
regardless of with or without a
switching hub if you make a
1:1 connection between
Sysmac Studio and Controller.
9
Select Online from the
Controller Menu.
*If the dialog box on the right
appears, check the message
and click OK. Then select
Online again.
*If the dialog box on the right
appears, check the message
and click Yes.
*The message of the dialog box
varies with the Controller
status. Check the message
and click on an appropriate
button to proceed with the
processing.
10
When an online connection is
established, a yellow line
appears under the toolbar.
