7．EtherNet/IP Connection Procedure
35
14

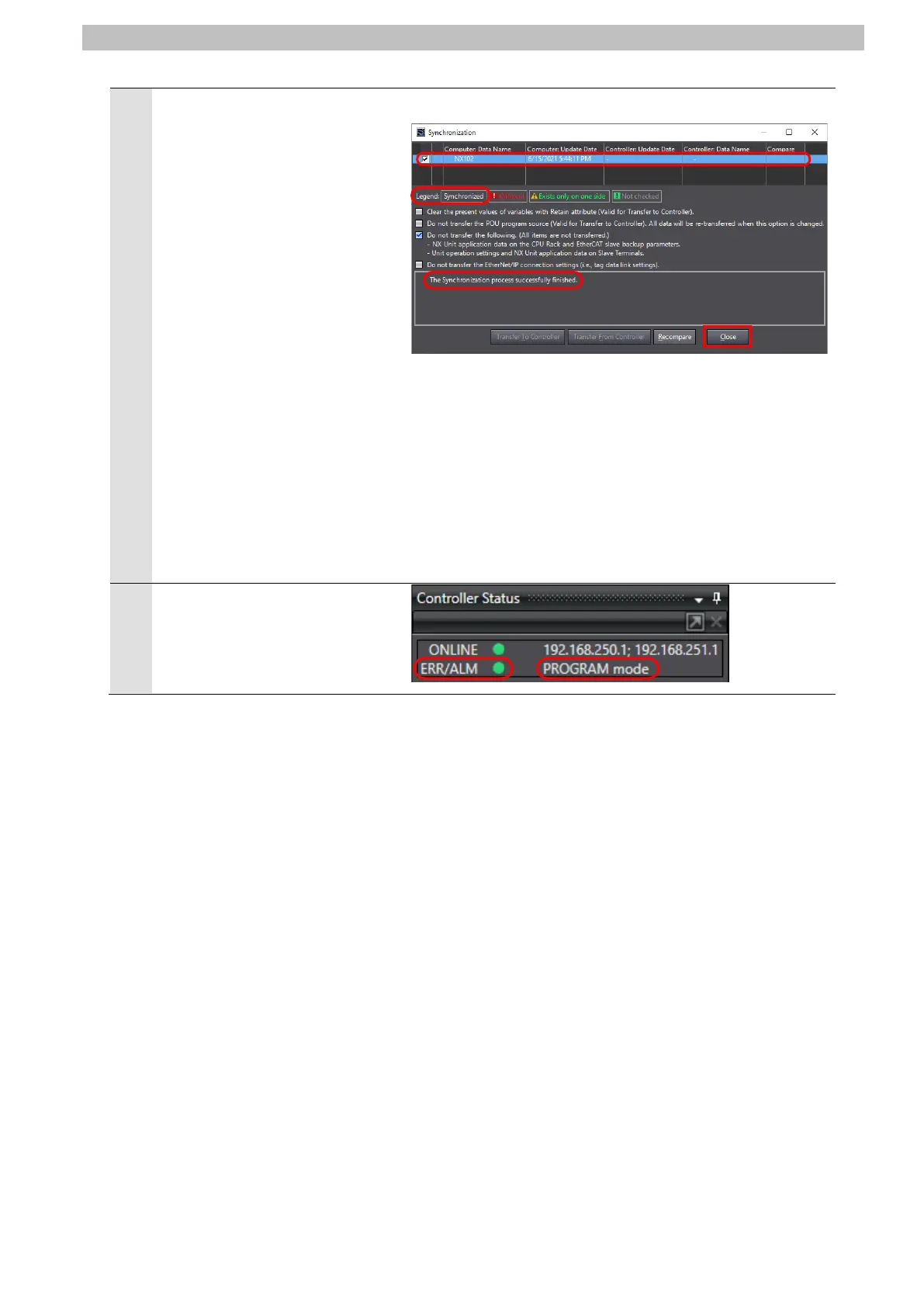

As shown in the figure on the
right, the font color used to
display the synchronized data
changes to white which is the
color used to specify
"Synchronized". Check that a
message appears stating "The
Synchronization process
successfully finished".
Confirm that there is no
problem, and click Close.
*When the project data created
in Sysmac Studio matches the
Controller data, a message
appears stating "The
Synchronization process
successfully finished".
*If the synchronization fails,
check the wiring and repeat
from step 1.
15
Check that the ERR/ALM
indicator in the Controller Status
Pane turns to green and that
PROGRAM mode is displayed.
