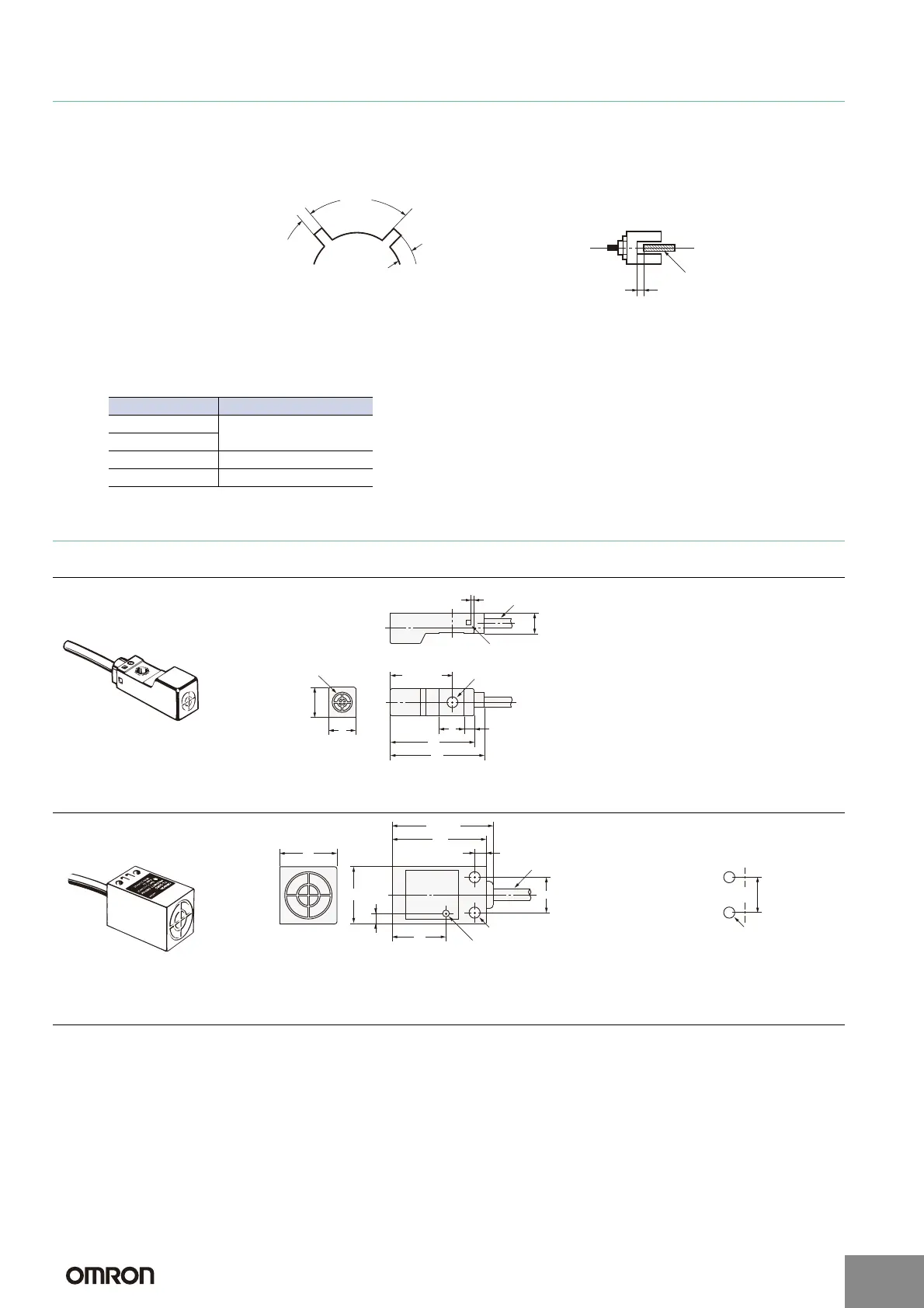

TL-N/TL-Q/TL-G
Designing the Sensing Object for TL-G3D-3 Grooved
Model
For high-speed response to a toothed
metal plate, the sensing objects must be
at least the size of the standard sensing
object and there must be sufficient
distance between sensing objects.
The response frequency for a toothed
wheel like the one shown at the right is 1
kHz min. The response frequency will be
reduced if the wheel is smaller or the
width of the teeth or the distance
between the teeth is reduced.
● Mounting
When tightening the mounting screws, do not exceed the torque in the
following table.
● Adjustment
Sensing Object Passing Position for the TL-G3D-3
Grooved Model
The gap between the sensing object and the bottom of the groove
must be 1 mm or less.
Dimensions (Unit: mm)
Sensors
Model Torque
TL-Q2MC1
0.59 N·m
TL-Q5M@@
TL-N@M@@ 0.9 to 1.5 N·m
TL-G3D-3 2 N·m
5
15 min.
Material: Iron
t = 0.5 mm
10
min.
Sensing object
1 mm max.
TL-Q2MC1
8
2.5
28
25
8
9
1
*
6
18.5±
0.2
Sensing surface
3.2-dia. mounting hole
Detection indicator (red)
* 2.9-dia. vinyl-insulated round cable with 3 conductors
(Conductor cross section: 0.15 mm
2
, Insulator diameter:
0.9 mm), Standard length: 2 m
TL-Q5M@@
16
3
17
17
10.5±
0.1
*1
3.5
28
Two, 3.3 dia.
10.5±
0.1
32 max.
Two, 3.3-dia. holes
Indicators *2
*1. C Models: 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2 mm
2
,
Insulator diameter: 1.2 mm), Standard length: 2 m
D Models: 4-dia. vinyl-insulated round cable with 2 conductors (Conductor cross section: 0.3 mm
2
,
Insulator diameter: 1.3 mm), Standard length: 2 m
*2. C Models: Detection indicator (red)
D Models: Operation indicator (red), Setting indicator (green)
Mounting Hole
Dimensions
http://www.ia.omron.com/
10
(c)Copyright OMRON Corporation 2007 All Rights Reserved.
