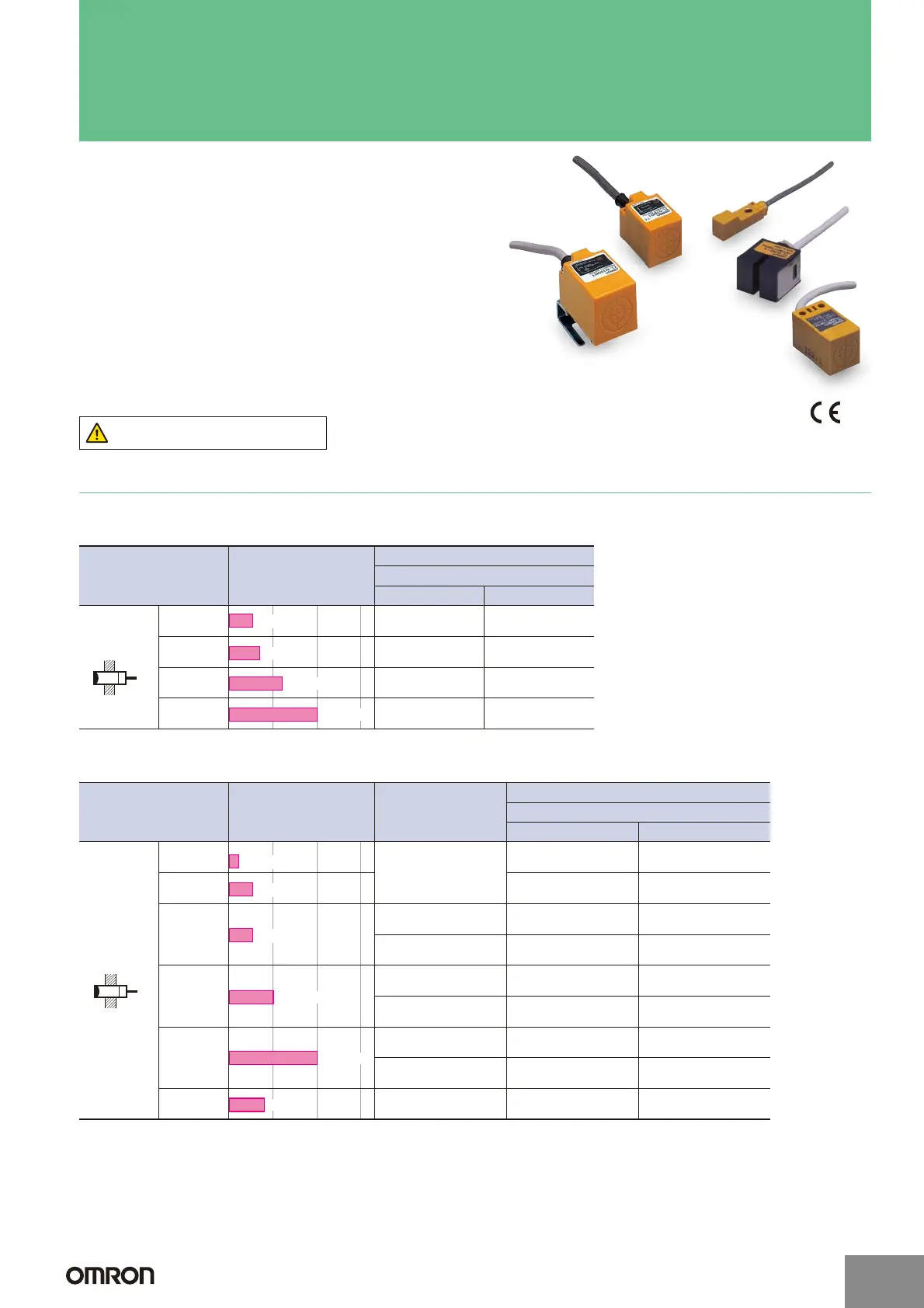

Rectangular Standard Proximity Sensor
TL-N/TL-Q/TL-G
A Wealth of Models for All Types of
Applications
■ Easy installation, high-speed pulse generator, high-speed
rotation control, and more.
■ Direct mounted to metal (-N Models).
■ A wealth of models ideal for limit control, counting control,
and other applications (-N Models).
Be sure to read Safety Precautions on
page 9.
(excluding TL-G)
Ordering Information
Sensors
DC 2-Wire Models
Note: Models with a different frequency are available to prevent mutual interference. The model numbers are TL-N@MD@5 and TL-Q5MD@5 (e.g., TL-N7MD15).
DC 3-Wire and AC 2-Wire Models
Note: Models with a different frequency are available to prevent mutual interference. Models numbers for Sensors with different frequencies are TL-@@M@@5
(example: TL-N5ME15).
*1. Models are also available with 5-m cables. Add the cable length to the model number (example: TL-N5ME1 5M).
*2. Models with robotics cables are also available. Add -R to the end of the model number (example: TL-N5ME1-R).
Appearance Sensing distance
Model
Operation mode
NO NC
17 × 17 TL-Q5MD1 TL-Q5MD2
25 × 25 TL-N7MD1 TL-N7MD2
30 × 30 TL-N12MD1 TL-N12MD2
40 × 40 TL-N20MD1 TL-N20MD2
Unshielded
5 mm
7 mm
12 mm
20 mm
Appearance Sensing distance Output configuration
Model
Operation mode
NO NC
8 × 9
DC 3-wire, NPN
TL-Q2MC1 —
17 × 17 TL-Q5MC1 TL-Q5MC2
25 × 25
DC 3-wire, NPN TL-N5ME1 TL-N5ME2
AC 2-wire TL-N5MY1 TL-N5MY2
30 × 30
DC 3-wire, NPN TL-N10ME1 TL-N10ME2
AC 2-wire TL-N10MY1 TL-N10MY2
40 × 40
DC 3-wire, NPN TL-N20ME1 TL-N20ME2
AC 2-wire TL-N20MY1 TL-N20MY2
Grooved DC 3-wire, NPN TL-G3D-3 —
Unshielded
2 mm
5 mm
*2
5 mm
*1
*2
*1
10 mm
*1
*2
*1
20 mm
*1
*2
7.5 mm
http://www.ia.omron.com/
1
(c)Copyright OMRON Corporation 2007 All Rights Reserved.
