Omron TL-N Series User Manual

TL-N/TL-Q/TL-G

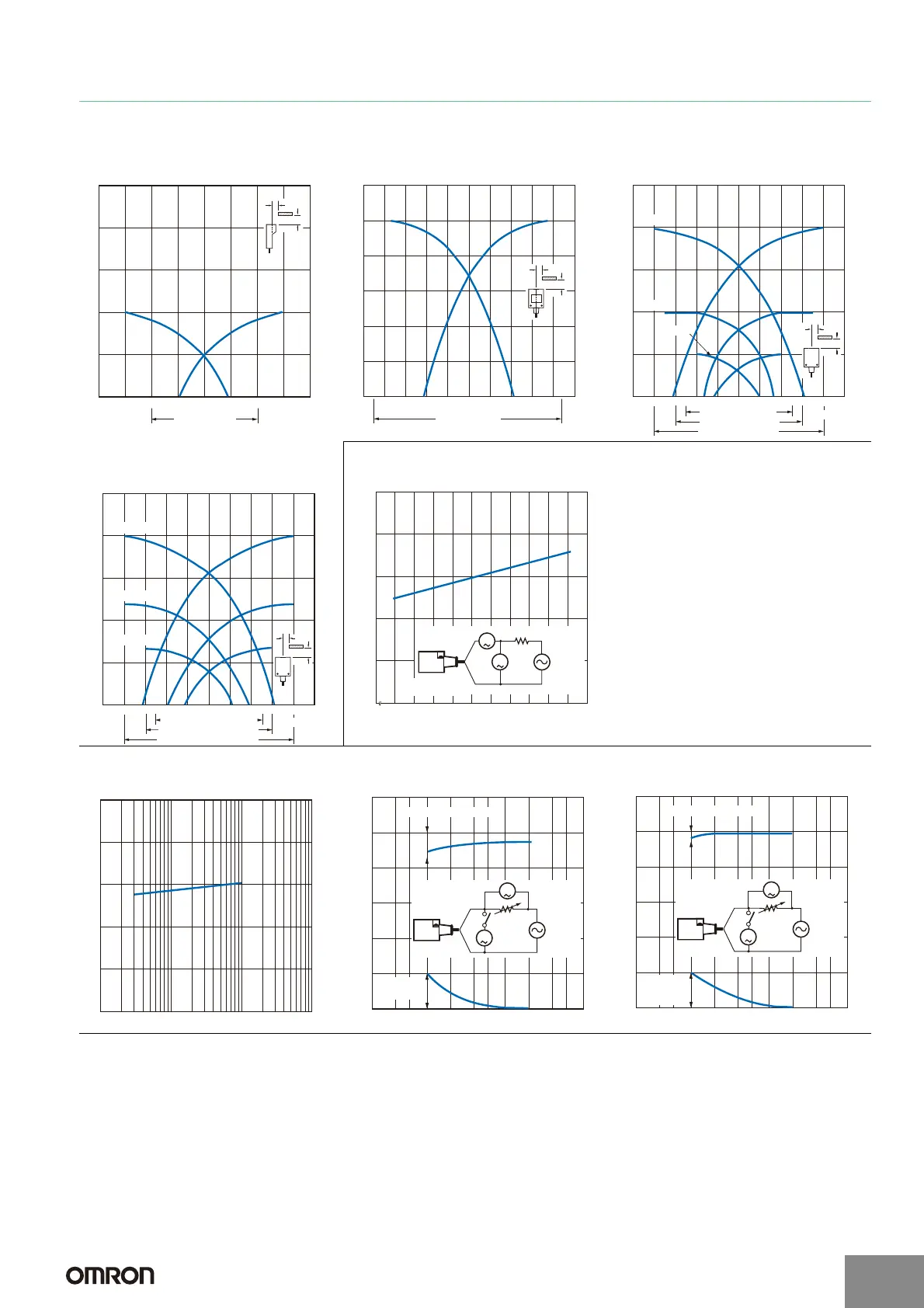

Engineering Data (Typical)
Sensing Area
TL-Q2MC1 TL-Q5M@@ TL-N@ME@
TL-N@MY@
Leakage Current
TL-N@MD@ TL-N@MY
Residual Output Voltage
TL-N@MD TL-N@MY at 100 VAC TL-N@MY at 200 VAC
4
3
2
1
0
−8 −6 −4 −2 0 2 4 6
Y
X
Distance X (mm)
Distance Y (mm)
Sensing Head
5
4
3
2
1
0
−8 −6 −4 −2 0 2 4 6 8
Y
X
Distance X (mm)
Distance Y (mm)
Sensing Head
TL-N5
TL-N10
20
15
10
5
0
TL-N20
−25 −20 −15 −10 −5 0 5 10 15 20
Y
X
Distance X (mm)
Distance Y (mm)
TL-N5 Sensing Head
TL-N10 Sensing Head
TL-N20 Sensing Head
TL-N7MD@
20
15
10
5
0
-25 -20 -15 -10 -5 0 5 10 15 20
TL-N12MD@
TL-N20MD@
Y
X
Distance X (mm)
Distance Y (mm)
TL-N7MD@ Sensing Head
TL-N12MD@ Sensing Head
TL-N20MD@ Sensing Head
2.0
1.5
1.0
0.5
0 80 100 120 140 160 180 200 220 240 260
mA
V
Leakage current (mA)
Power supply voltage (V)
AC
power
50/60
Hz
Protective resistance
Proximity Sensor
(output OFF)
5
4
3
2
1
0 3 5 10 30 50 100 300 500 1,000
Residual output voltage (V)
Load current (mA)
A
100
80
60
40
20
0
3 5 10 20 30 50 100 200
OFF
100 VAC
V
ON
Load voltage VL (V)
Load current (mA)
Residual
load voltage
Residual output voltage
200
160
120
80
40
0
OFF
3 5 10 20 50 100 200
V
A
200 VAC
ON
Load voltage VL (V)
Load current (mA)
Residual
load
voltage
Residual output voltage
