Omron TM5-700 Hardware Installation Manual

Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 63

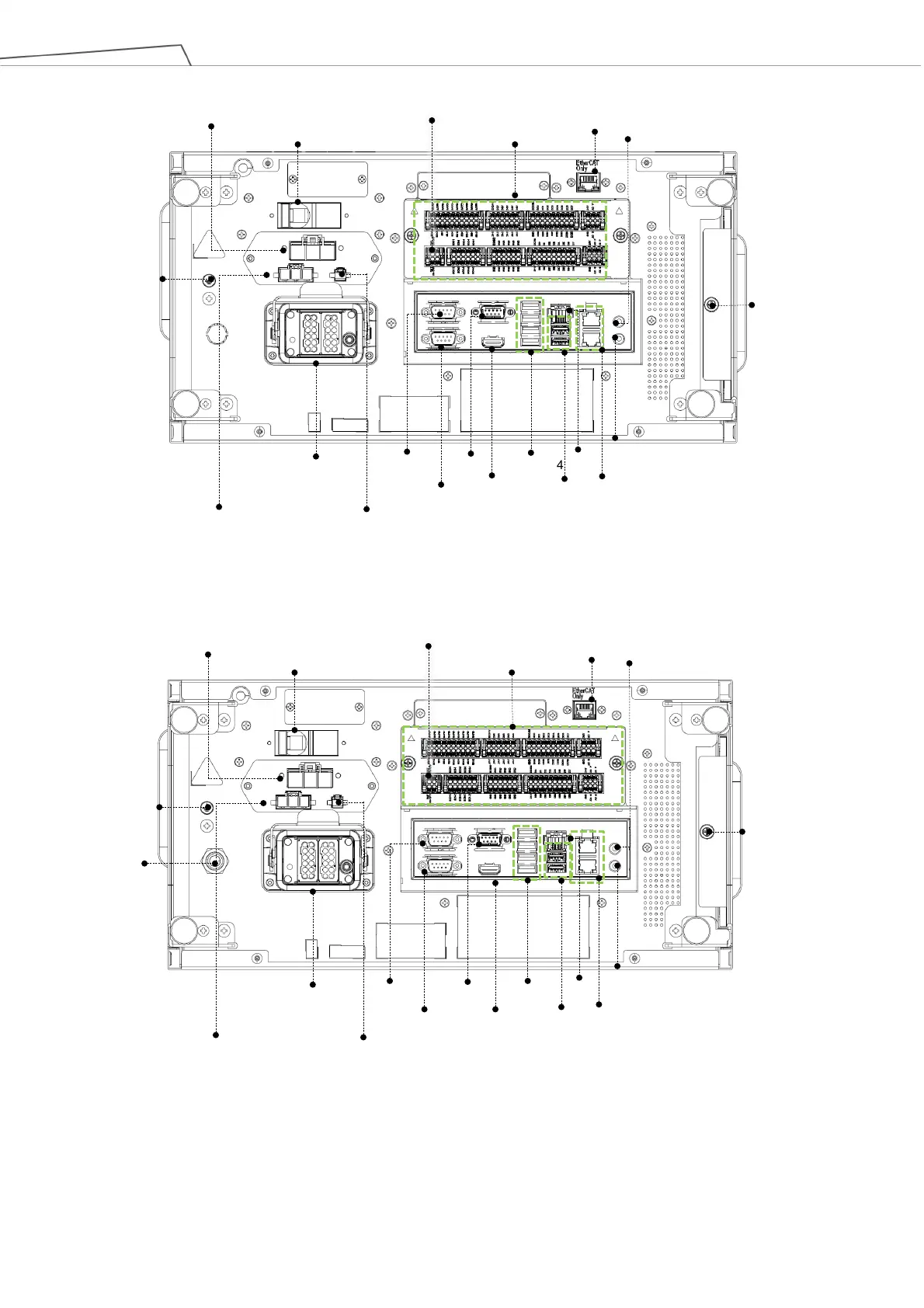

Figure 60: Interfaces of the TM5M-700 / TM5MX-700 / TM5M-900 / TM5MX-900 Series
Figure 61: Interfaces of the TM5M-700 SEMI / TM5M-900 SEMISeries
External Power Supply Remote Control
DC IN Power
DC Power Switch
DC IN for External Power Supply
USB
3.0*2
COM1
Robot Cable Adapter
USB 2.0 *4
HDMI
LAN for GigE Camera*2
EtherCAT
Line-out
Air Filter Screw
Power Remote ON/OFF
COM2
COM3
LAN
Mic-in
I/O Interface
PE
PE
External Power Supply Remote Control
DC IN Power
DC Power Switch
DC IN for External Power Supply
USB
3.0*2
COM1
Robot Cable Adapter
USB 2.0 *4
HDMI
LAN for GigE Camera*2
EtherCAT
Line-out
Air Filter Screw
Power Remote ON/OFF
COM2
COM3
LAN
Mic-in
I/O Interface
EMO
